Front Abs Sensor: Removal

  1. Disconnect front ABS sensor connector located in engine compartment.
  2. Remove bolts which secure sensor harness to strut.

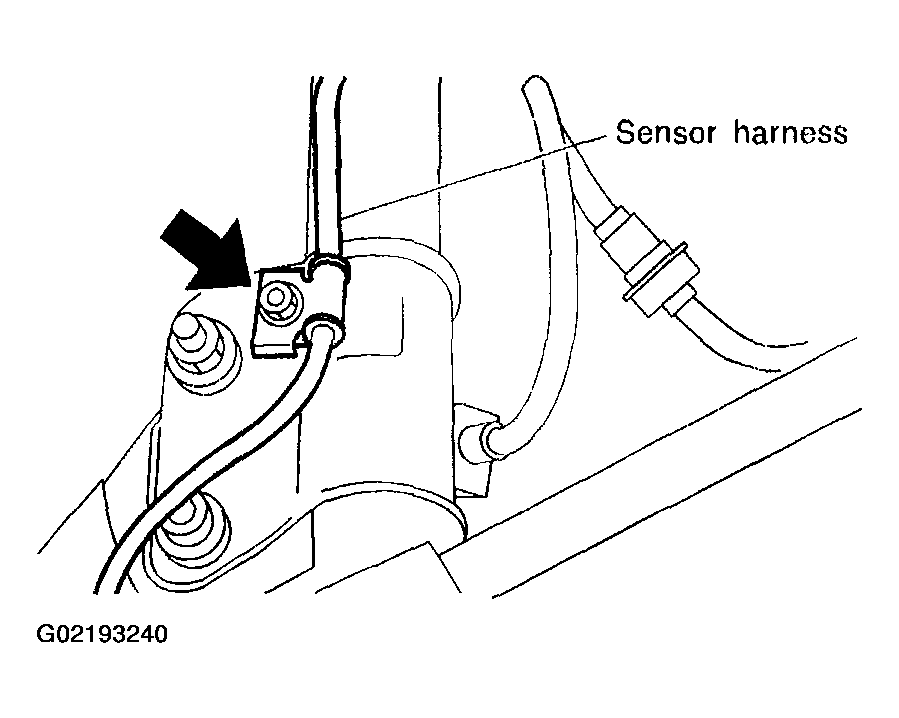

    Fig 1: Removing Bolts Securing Sensor Harness To Strut
    G02193240
  3. Remove bolts which secure sensor harness to body.
    Fig 2: Removing Bolts Securing Sensor Harness To Body
    G02193241
  4. Remove bolts which secure front ABS sensor to housing, and remove front ABS sensor.
    CAUTION:
    • Be careful not to damage pole piece located at tip of the sensor and teeth faces during removal.
    • Do not pull sensor harness during removal.

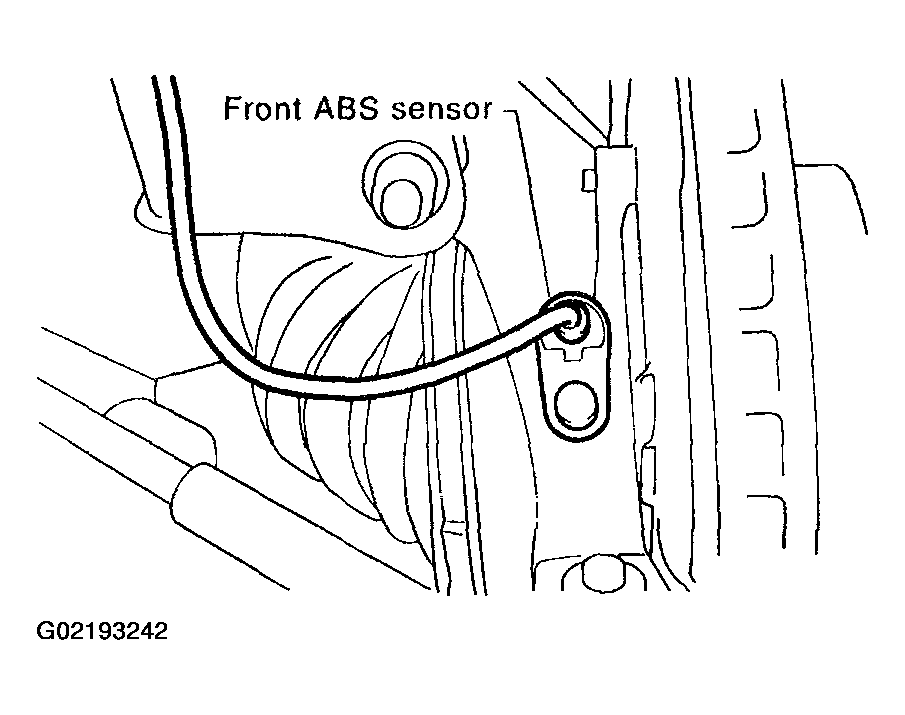

    Fig 3: Removing Bolts Securing Front ABS Sensor To Housing
    G02193242
  5. Remove front disc brake caliper and disc rotor from housing after removing front tire.
