Electrical Specification

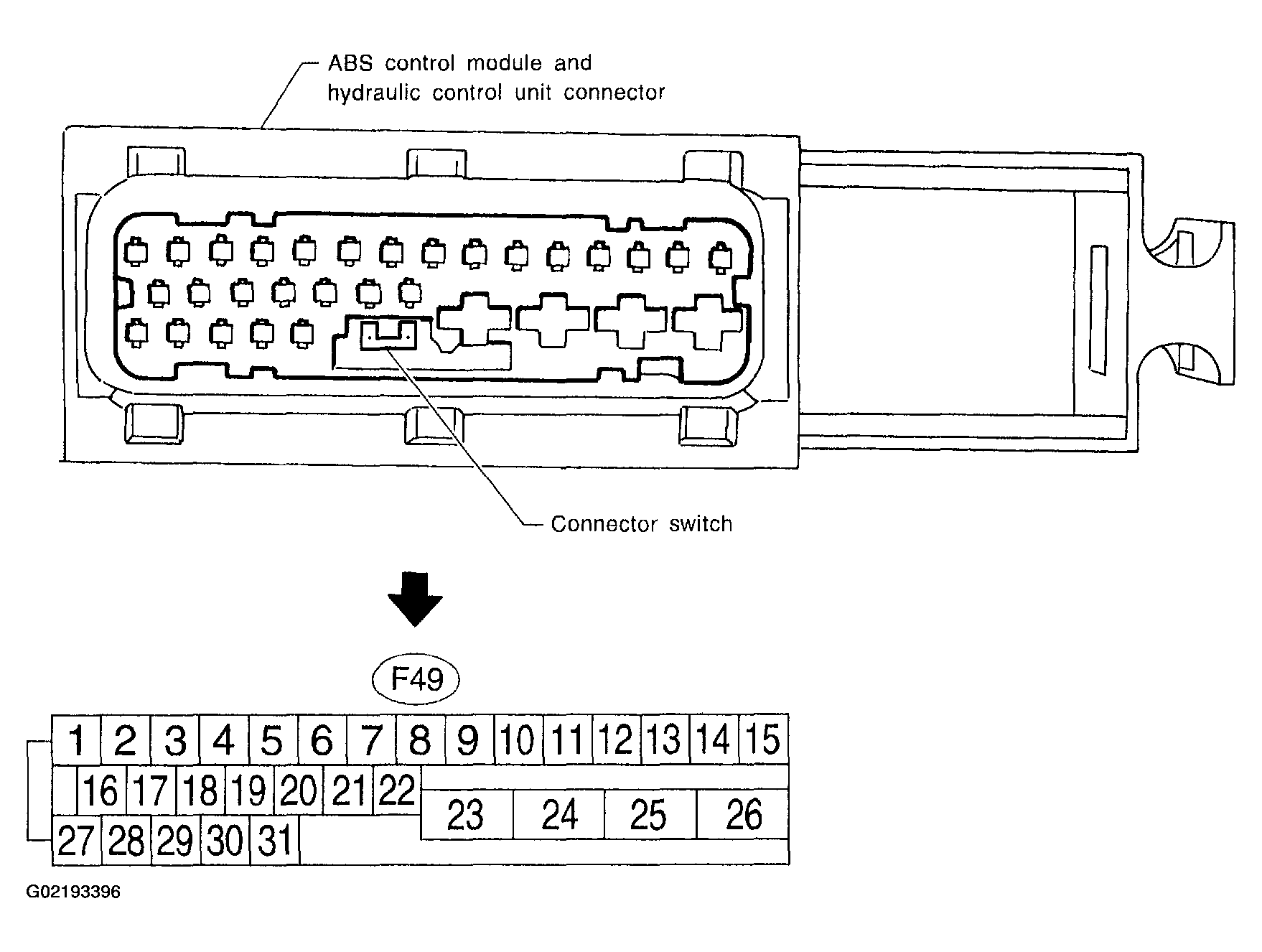

Fig 1: Identifying Terminal Numbers For ABS Control Module And Hydraulic Control Unit Connector

G02193396

NOTE:

The terminal numbers in the ABS control module and hydraulic control unit connector are as shown in figure Fig 1 .
When the connector is removed from the ABSCM & H/U, the connector switch closes the circuit between terminal No. 21 and No. 23. The ABS warning light illuminates.

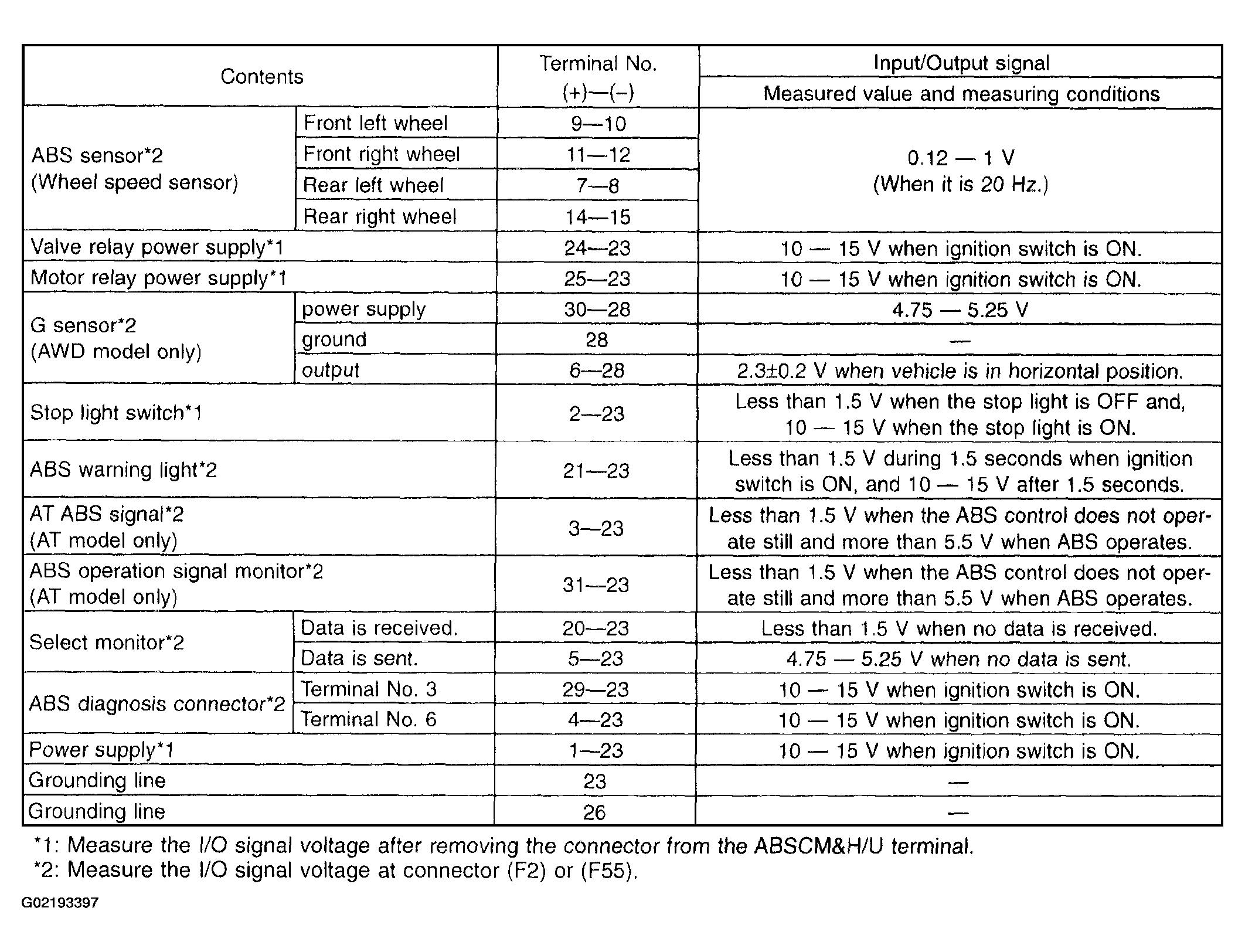

Fig 2: Terminal Electrical Specification Chart

G02193397
