Transmission Control Module (TCM) I/O Signal
>>
Electrical Specification
Electrical Specification

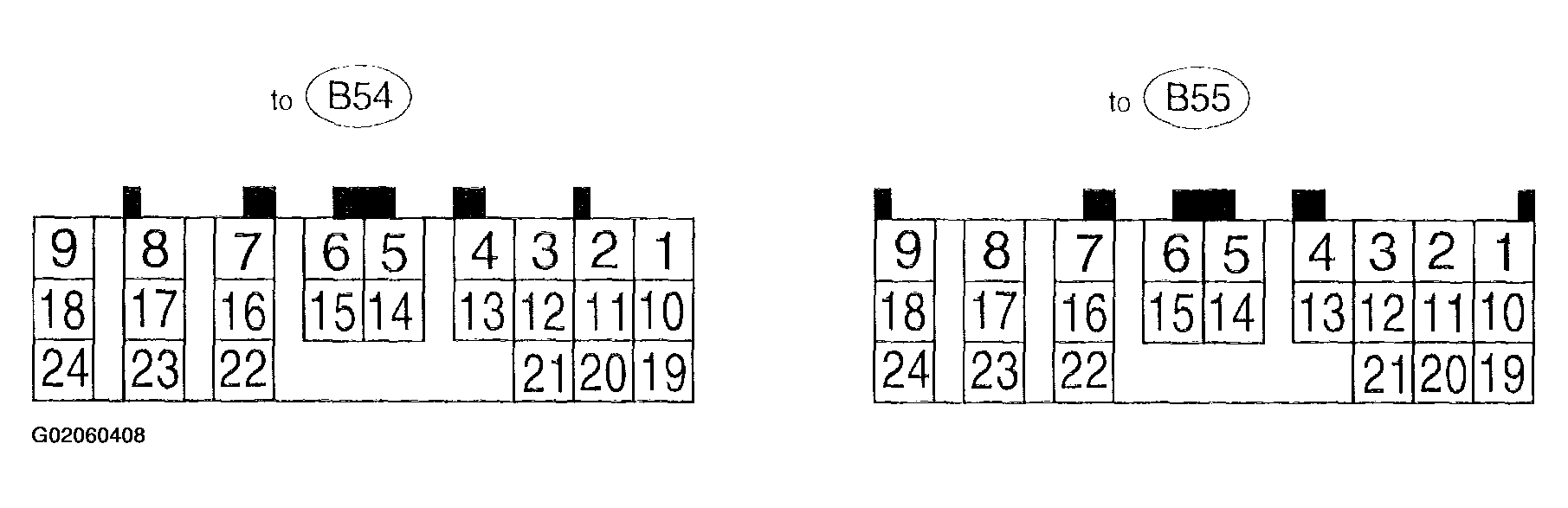

Fig 1: Transmission Control Module (TCM) - Connector Pin Identification

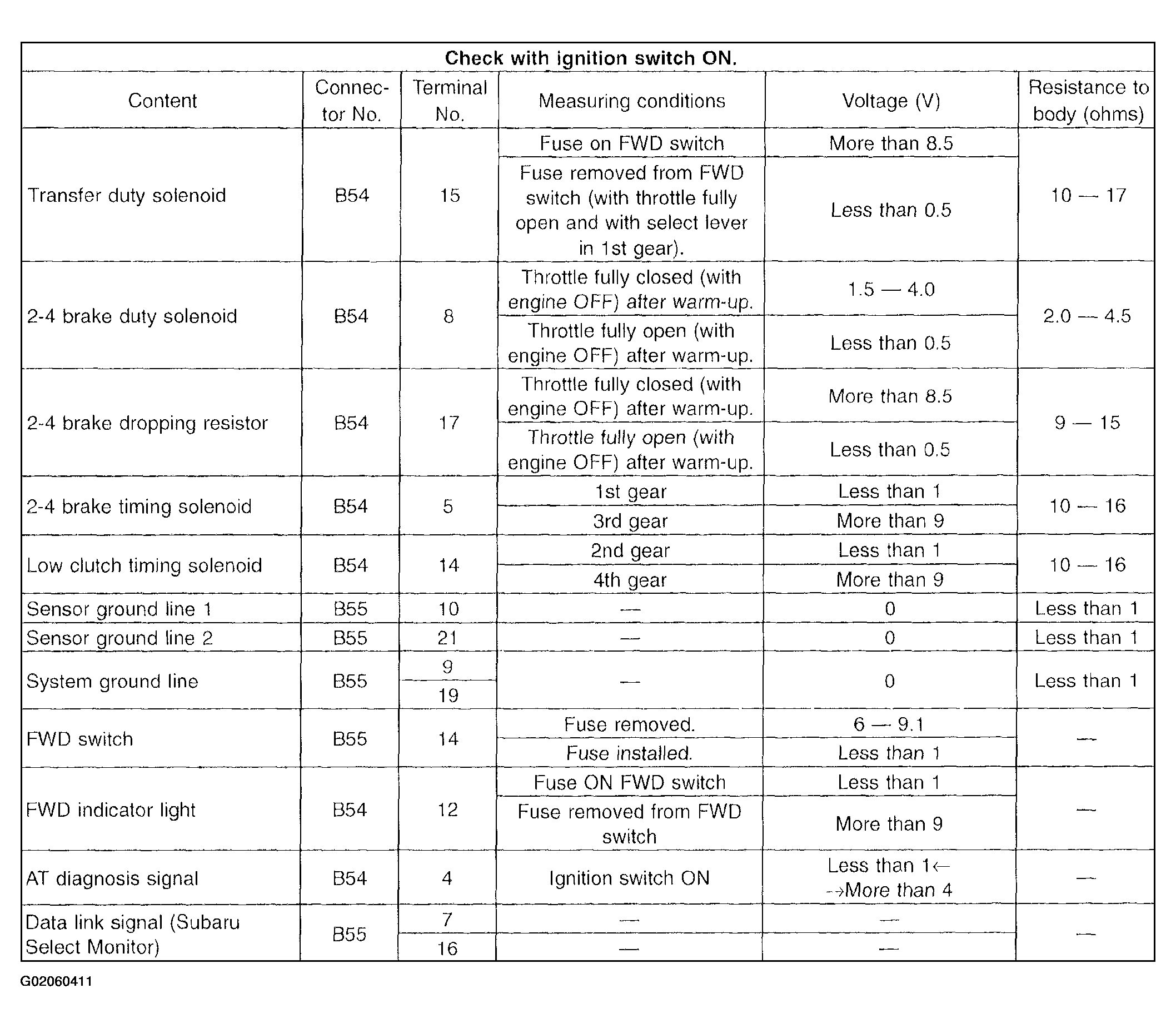

Fig 2: Transmission Control Module (TCM) - I/O Signal (1 Of 3)

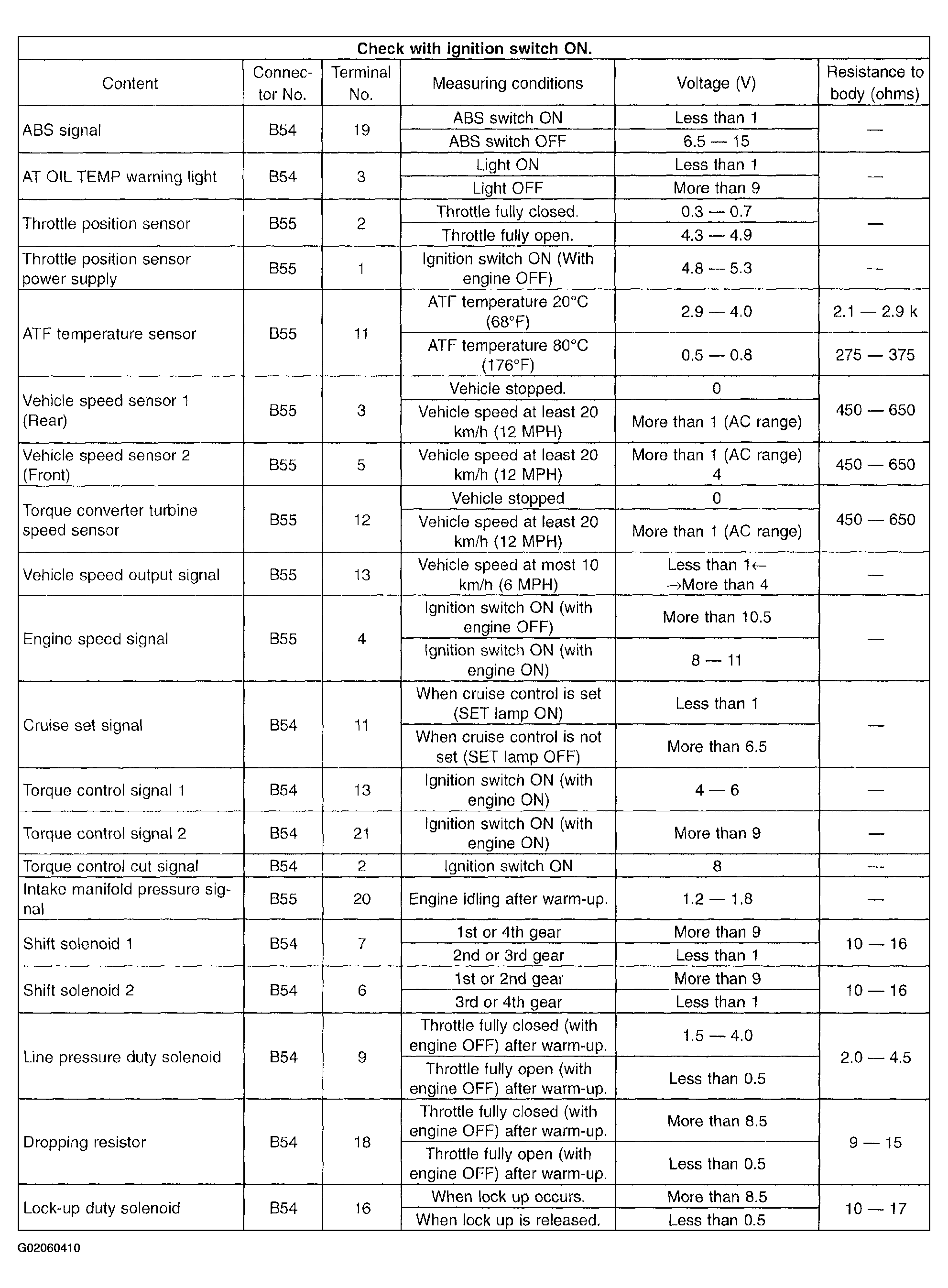

Fig 3: Transmission Control Module (TCM) - I/O Signal (2 Of 3)

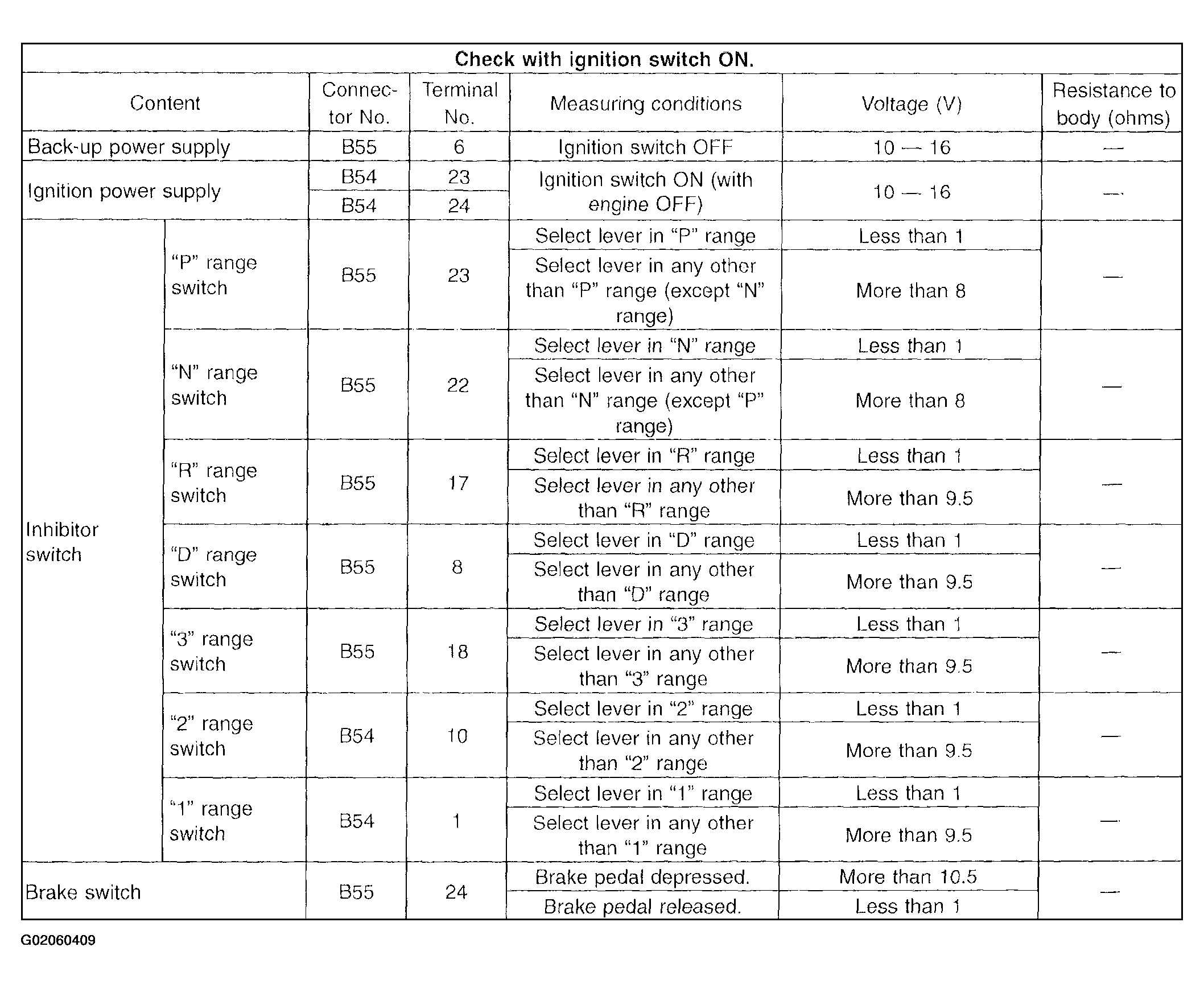

Fig 4: Transmission Control Module (TCM) - I/O Signal (3 Of 3)
