Code 27: ATF Temperature Sensor: Trouble Symptom

Excessive shift shock.

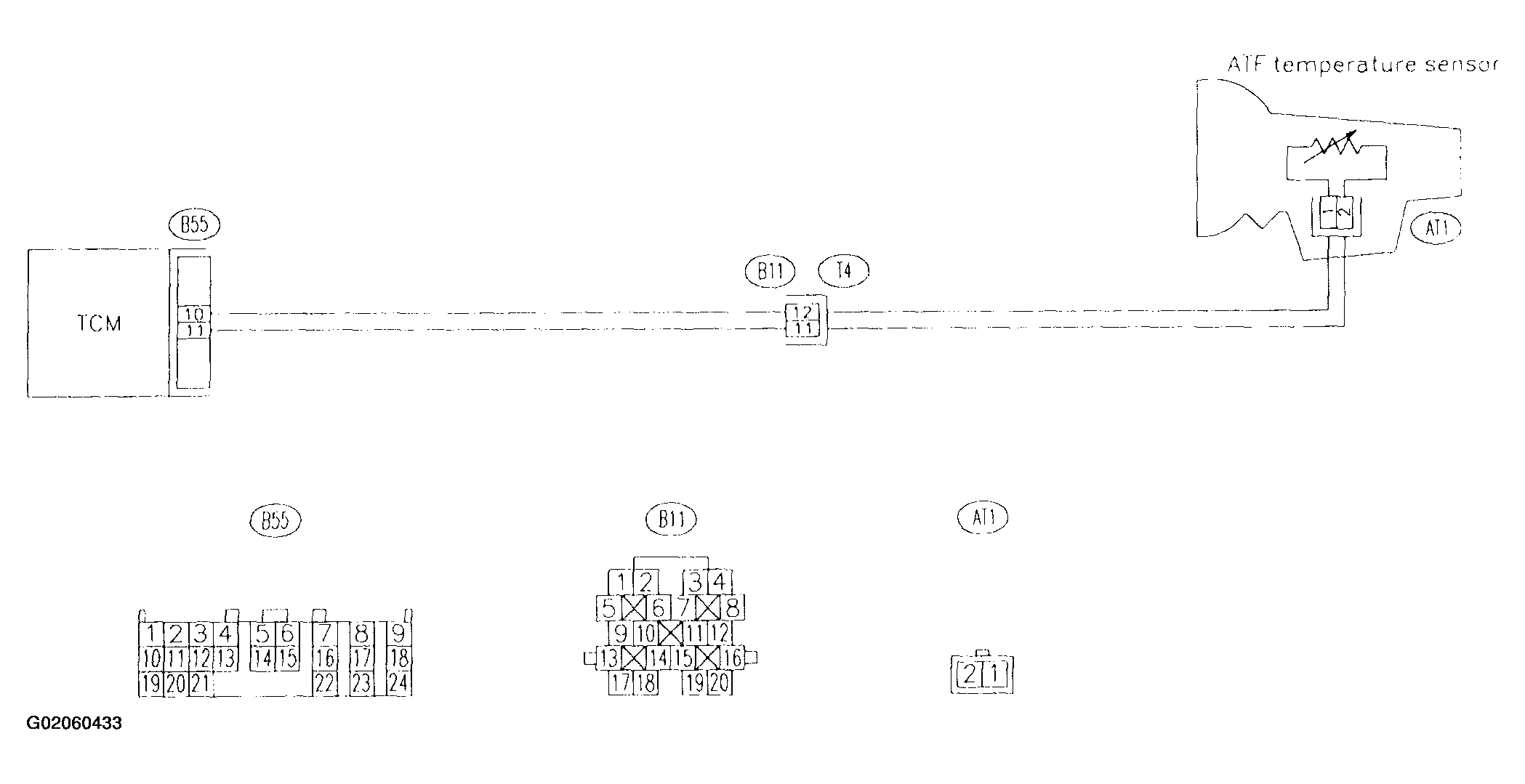

Fig 1: ATF Temperature Sensor Circuit - Wiring Diagram
G02060433

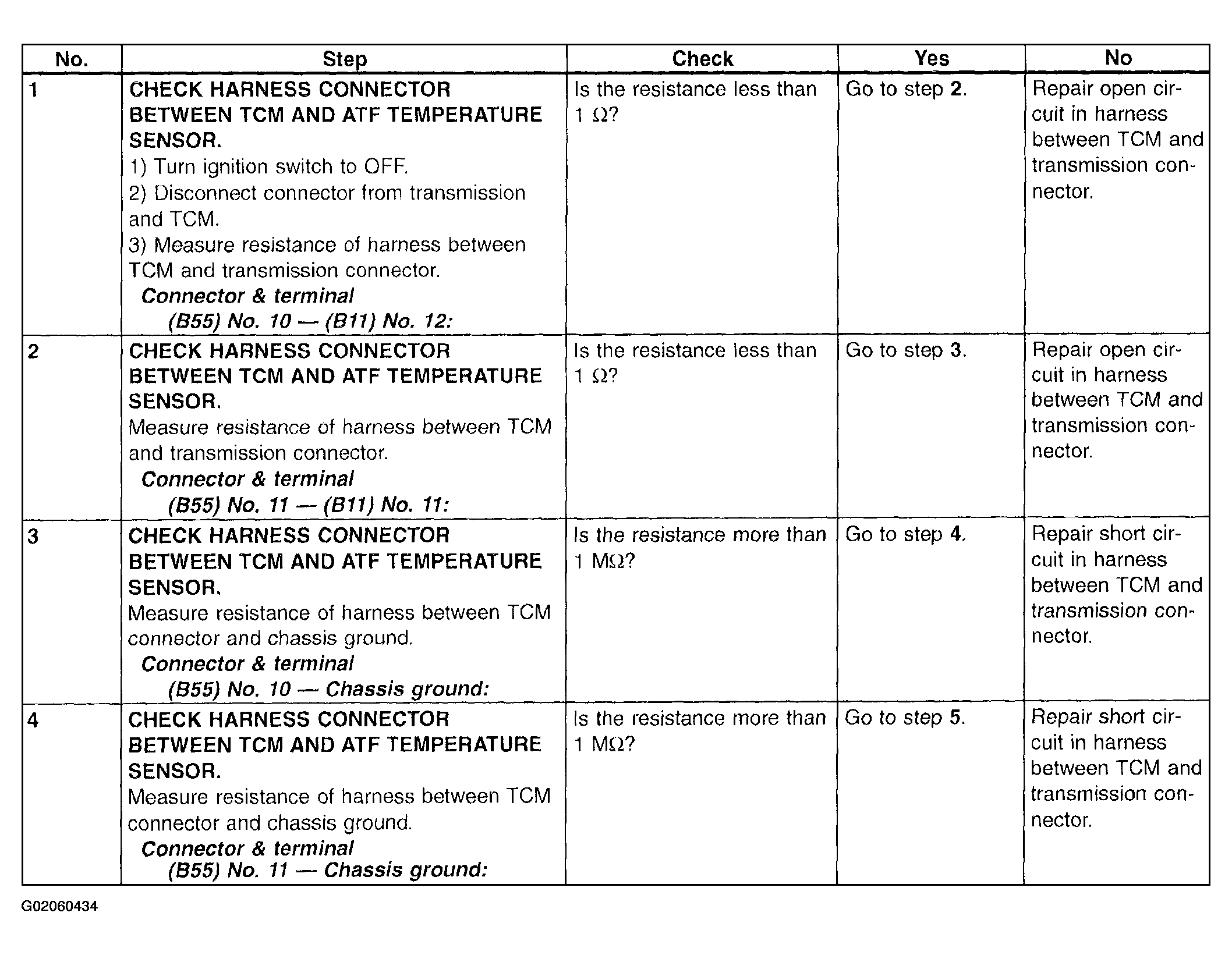

Fig 2: Trouble Code 27 - Diagnostic Chart (1 Of 4)
G02060434

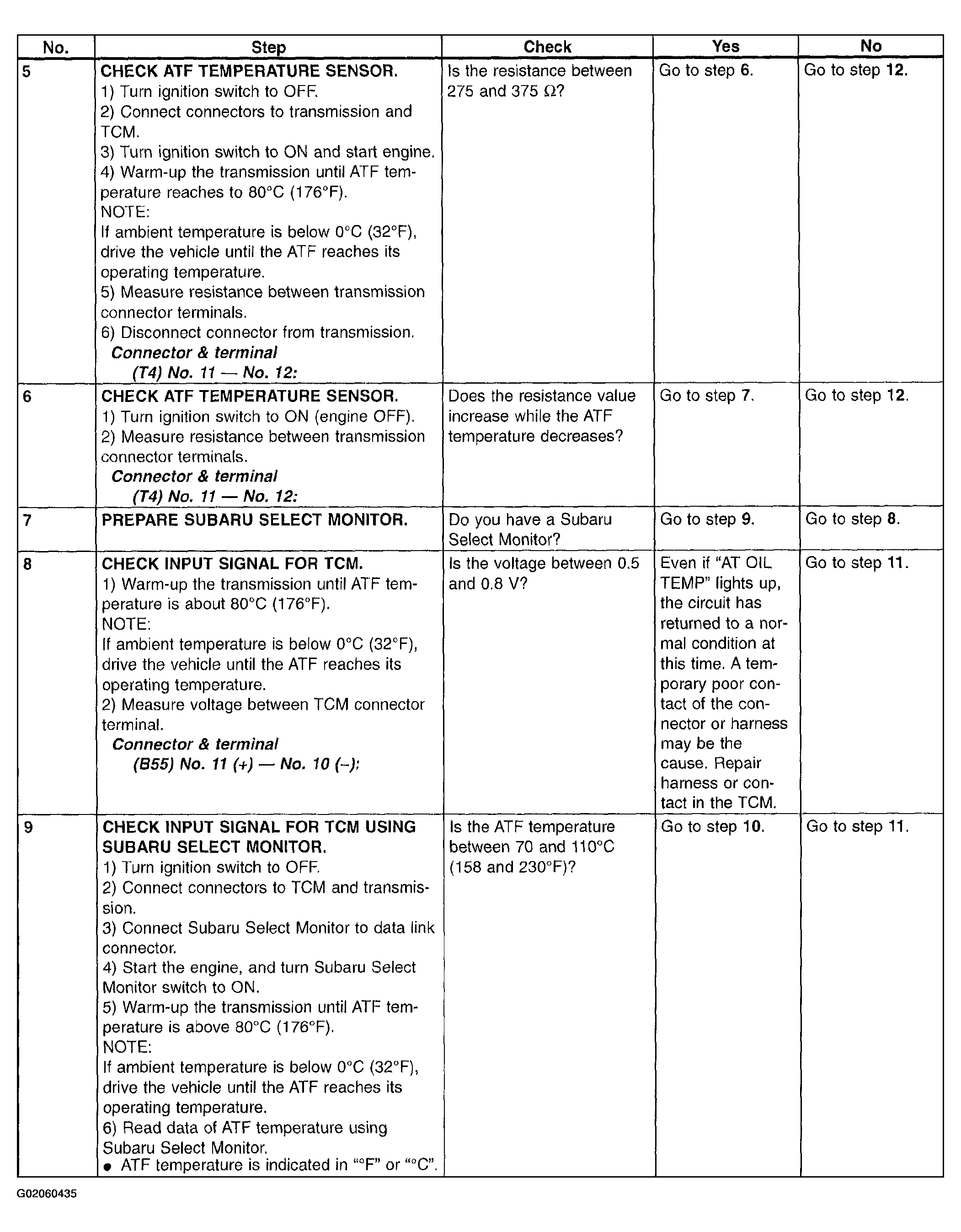

Fig 3: Trouble Code 27 - Diagnostic Chart (2 Of 4)
G02060435

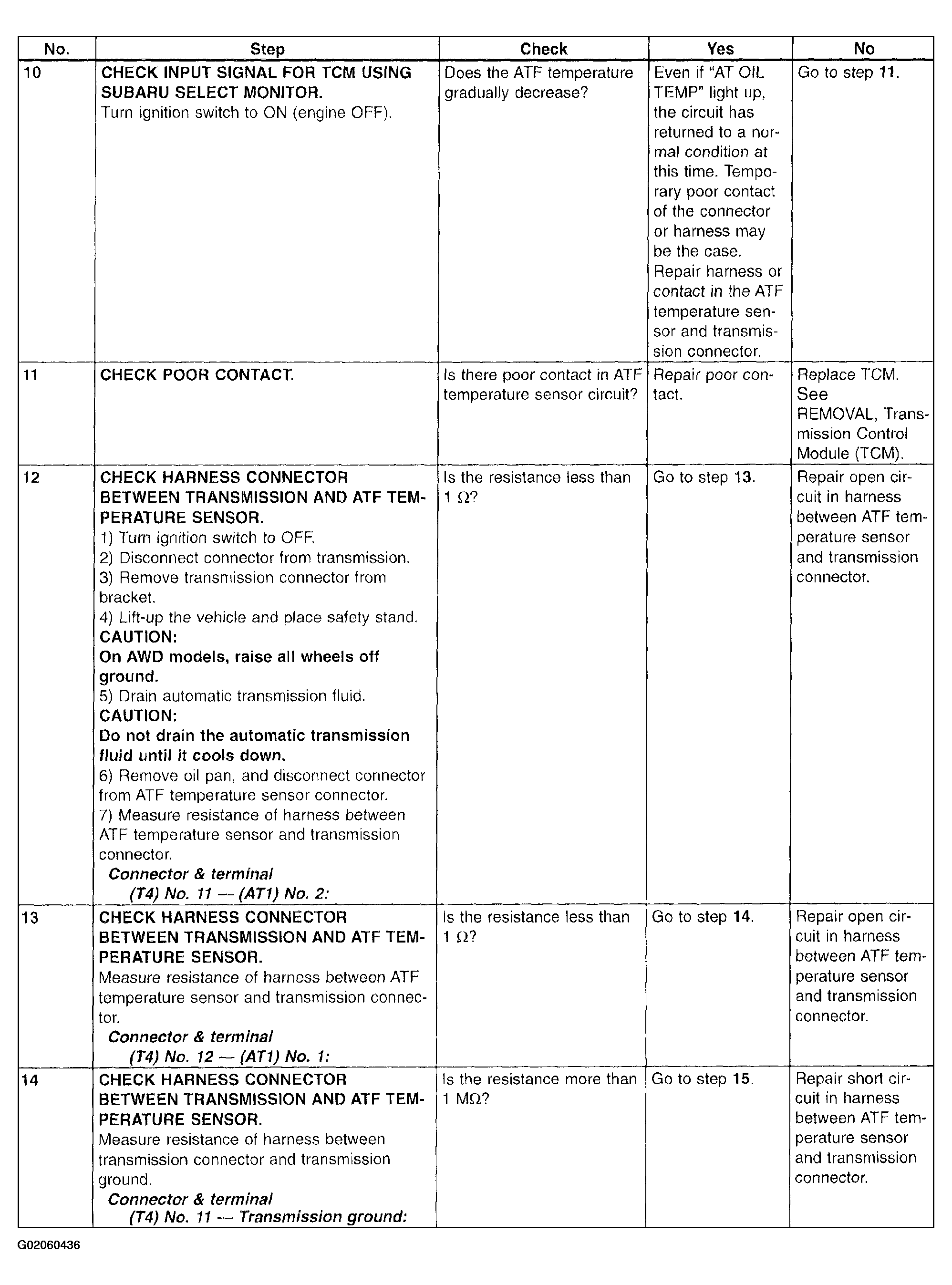

Fig 4: Trouble Code 27 - Diagnostic Chart (3 Of 4)
G02060436

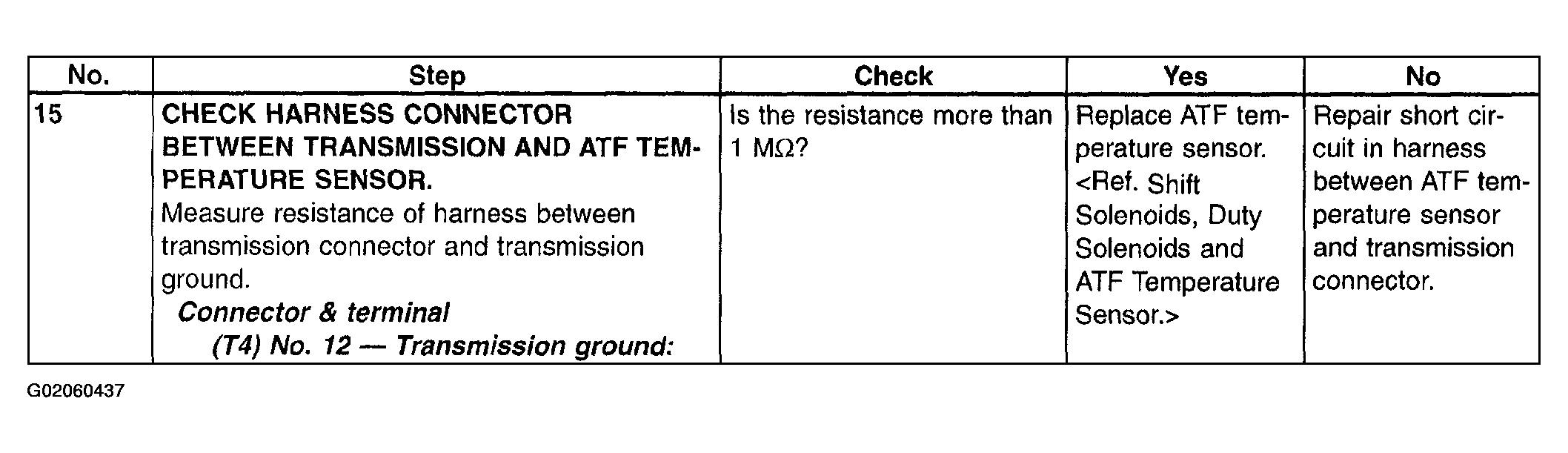

Fig 5: Trouble Code 27 - Diagnostic Chart (4 Of 4)
G02060437
