Abs Control Module And Hydraulic Control Unit (ABSCM & H/U): Installation

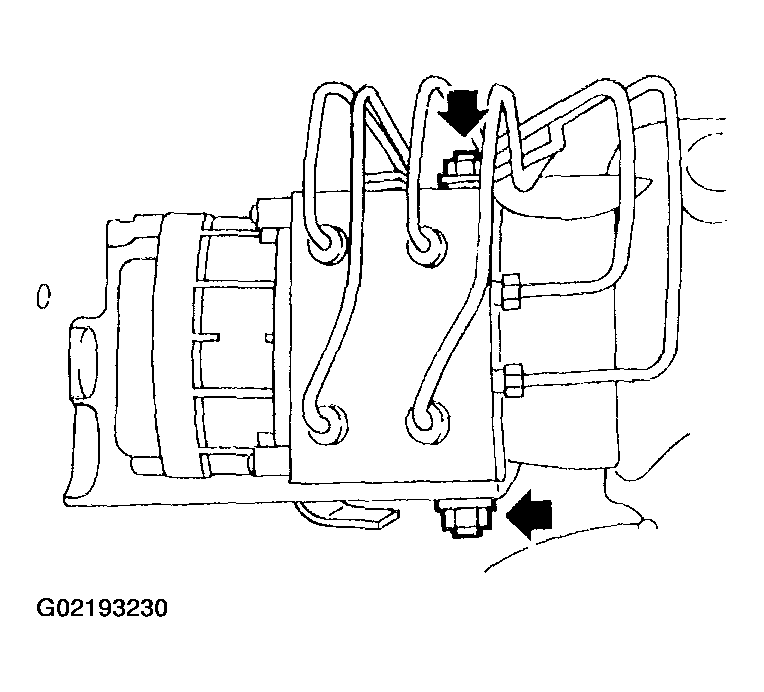

- Install ABSCM & H/U.CAUTION: Confirm that the specifications of the ABSCM & H/U conforms to the vehicle specifications.
- Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)
- Connect brake pipes to their correct ABSCM & H/U connections.
- Brake pipe tightening torque: 15 N.m (1.5 kgf-m, 10.8 ft-lb)
- Using cable clip, secure ABSCM & H/U harness to bracket.
- Connect connector to ABSCM & H/U.CAUTION:
- Be sure to remove all foreign matter from inside the connector before connecting.
- Ensure that the ABSCM & H/U connector is securely locked.
- Install air intake duct.
- Connect ground cable to battery.
- Bleed air from the brake system.
