Fuel Sub Level Sensor: Installation

Install in the reverse order of removal.

Tightening torque:

  1. T:  4.4 N.m (0.45 kgf-m, 3.3 ft-lb)

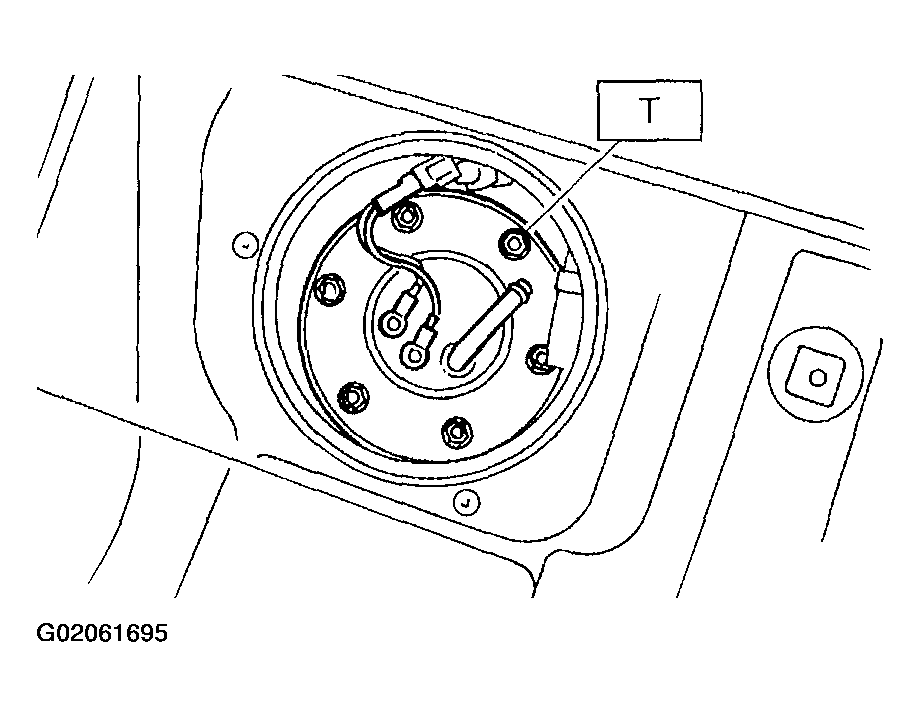

    Fig 1: Tightening Nuts Of Sub Fuel Level Sensor Mounting Plate
    G02061695
