Caster (Front): Inspection

  1. Place front wheel on turning radius gauge. Make sure ground contacting surfaces of front and rear wheels are set at the same height.
  2. Set ST into the center of the wheel, and then install the wheel alignment gauge.

    ST 927380000 ADAPTER

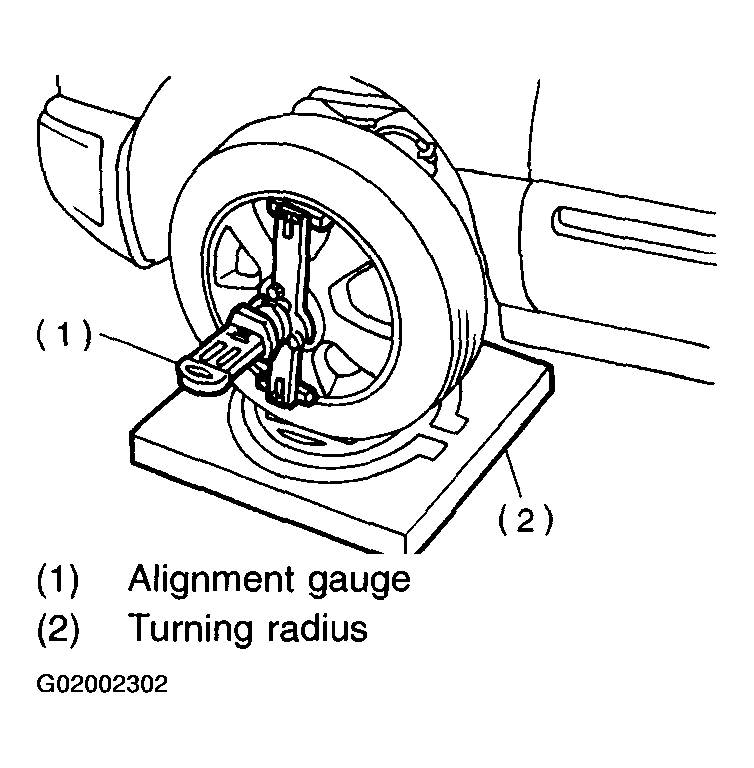

Fig 1: Setting ST Into Center Of Wheel & Installing Wheel Alignment Gauge
G02002302
NOTE: Refer to the "SPECIFICATIONS AND SERVICE DATA" for the caster values. See Figure .
