Hydraulic Control Valve: Construction

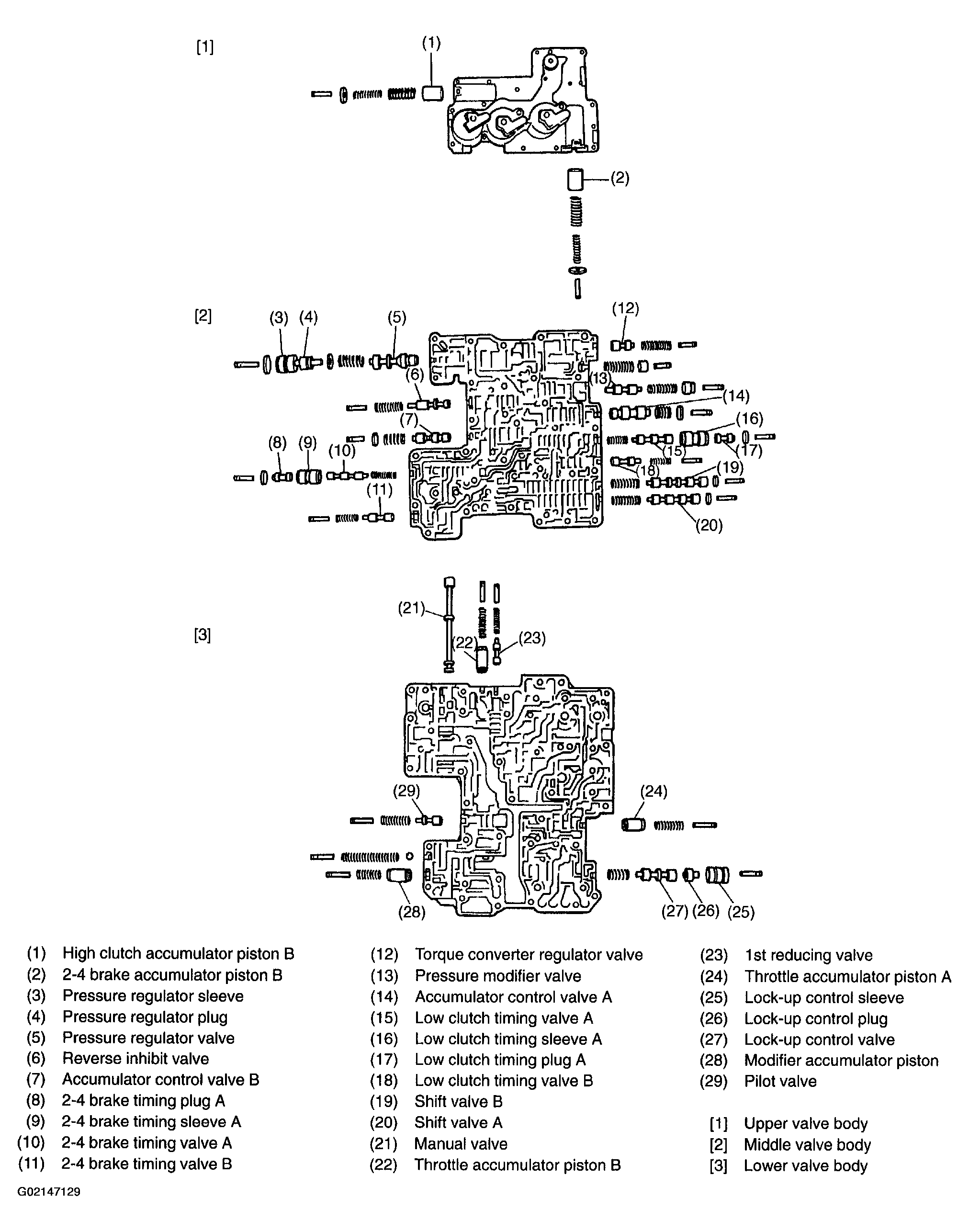

Fig 1: Identifying Hydraulic Control Valve Components

G02147129
