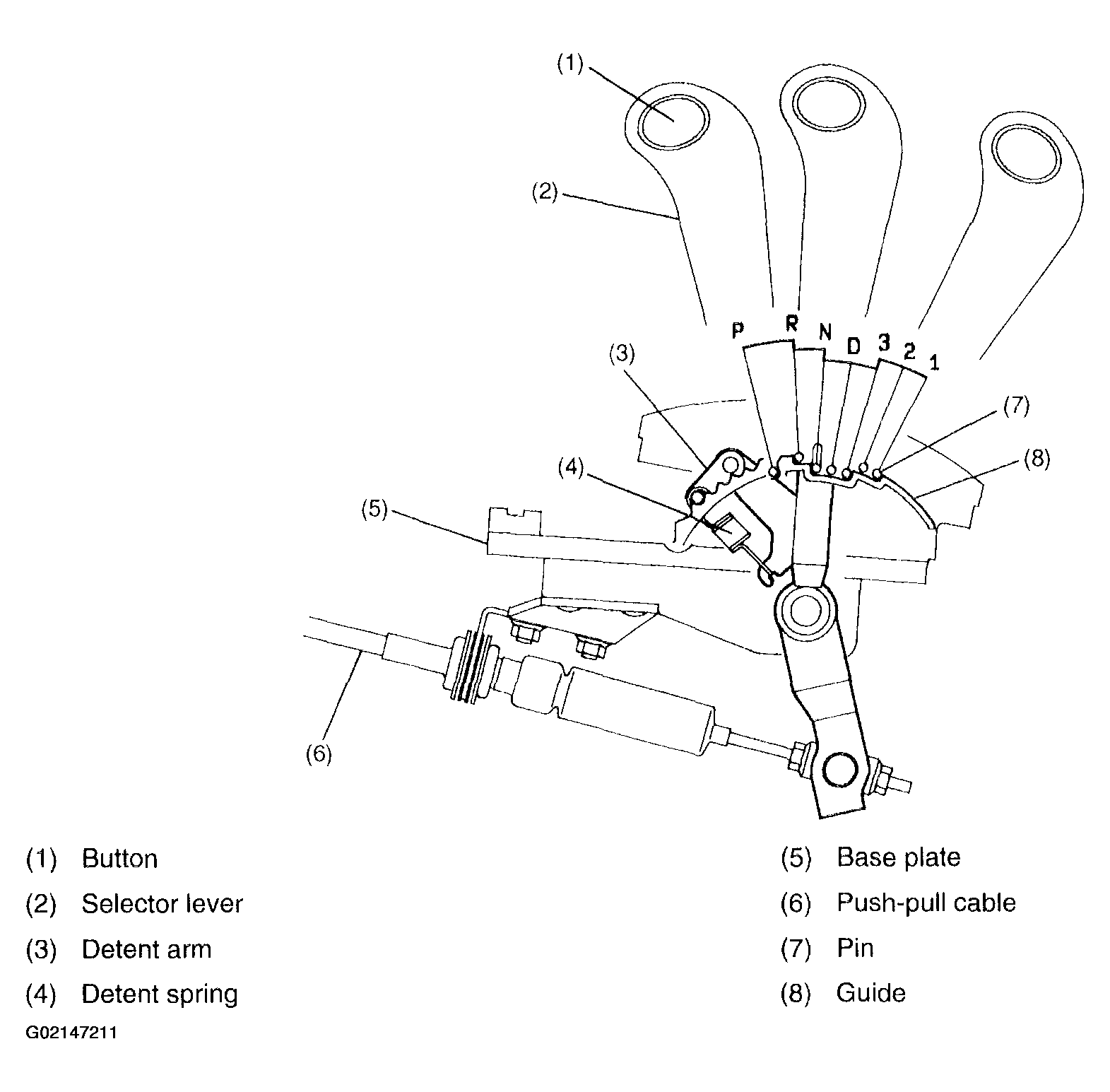

Select Lever
- The selector lever moves through seven positions. Since movement of the lever is restricted by gates in the guide and a pin on the lever, it can always be retained correctly in a desired position. Before shifting the lever from P to R, 3 to 2, N to R or R to P, a button on the lever is pressed to unlock the lever.
- For connecting the selector lever and the transmission, a push-pull cable is employed.
- The newly installed detent arm ensures more punctual selector lever operation.
- For base plate, a plastic one is used.
