Removal And Installation

Remove air cleaner case.

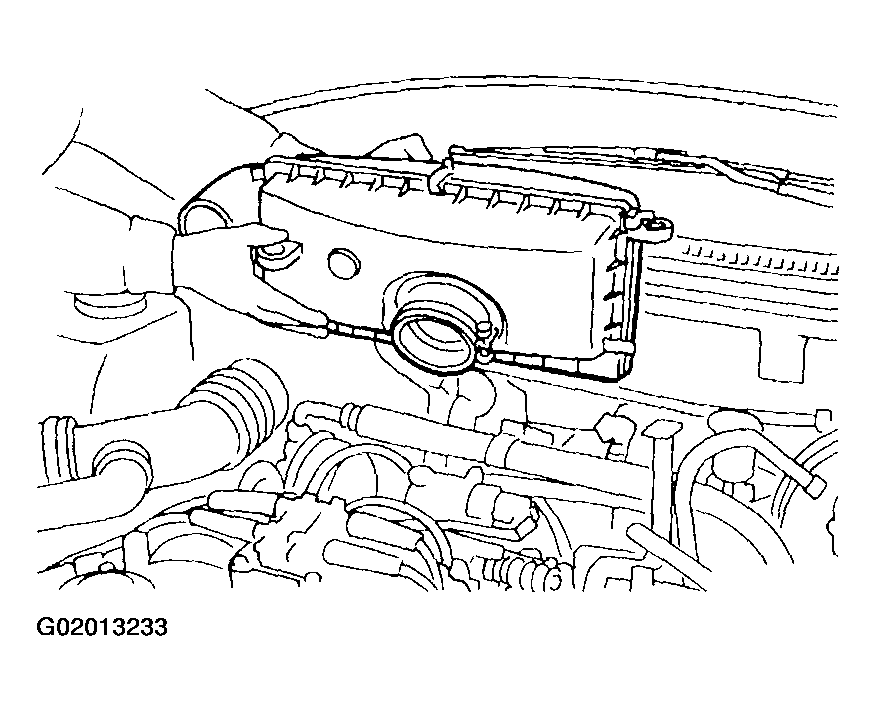

Fig 1: Identifying Air Cleaner Case
Remove clutch hose from operating cylinder.
CAUTION: Cover hose joint to prevent clutch fluid from flowing out.

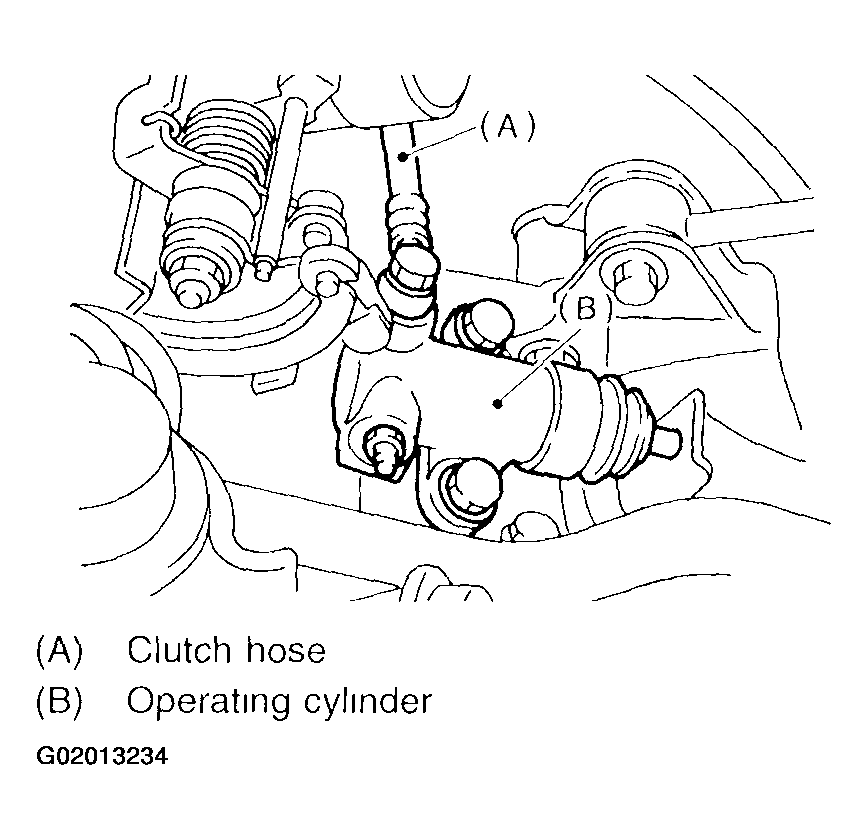

Fig 2: Identifying Clutch Operating Cylinder
Remove operating cylinder from transmission.

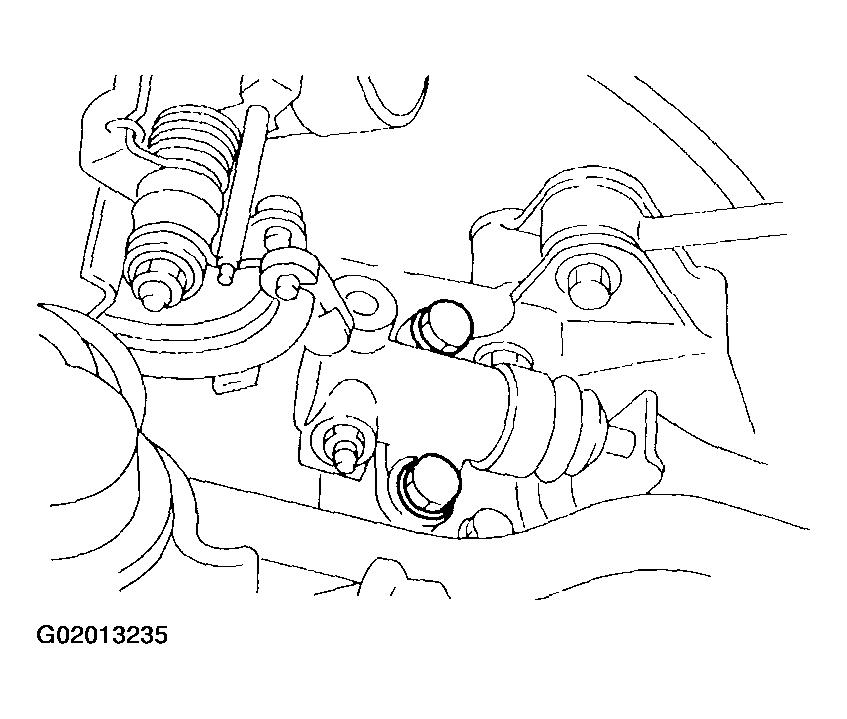

Fig 3: Removing Operating Cylinder
Install in the reverse order of removal.
NOTE: Before installing operating cylinder, apply grease (SUNLIGHT 2: P/N 003602010) to contact point of clutch release lever and operating cylinder.

Tightening torque:
1. T1: 18+/-3 N.m (1.8+/-0.3 kg-m, 13.0+/-2.2 ft-lb)
2. T2: 37+/-3 N.m (3.8+/-0.3 kg-m, 27.5+/-2.2 ft-lb)

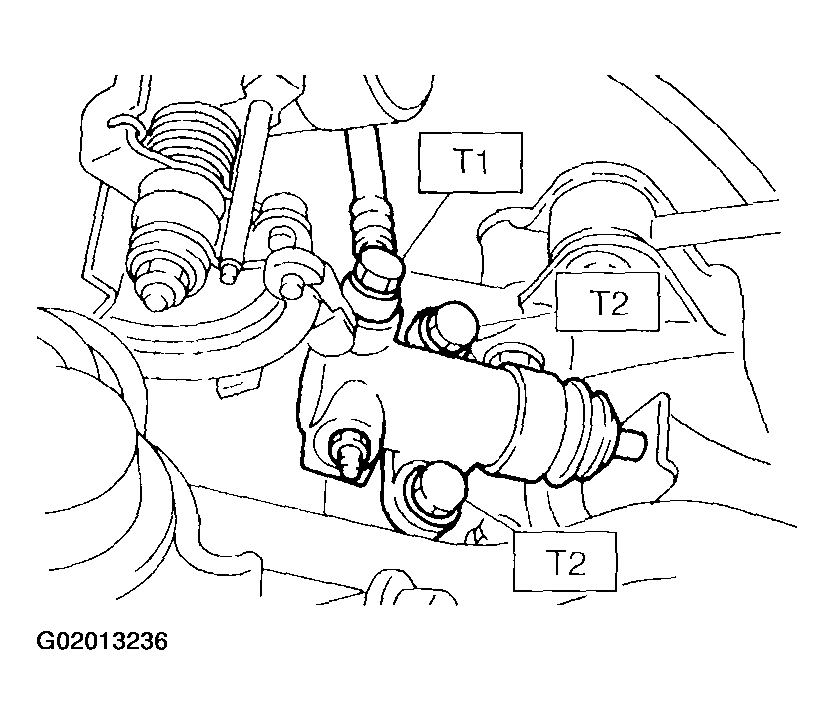

Fig 4: Installing Operating Cylinder
After bleeding air from operating cylinder, ensure that clutch operates properly. See ON-CAR SERVICE .
