On-Car Service: Adjustment

NOTE: Bleed air from oil line with the help of a co-worker.

Remove air cleaner case.
Fit one end of a vinyl tube into the air bleeder of operating cylinder and put the other end into a brake fluid container.

Fig 1: Identifying Air Bleeder Of Operating Cylinder
Slowly depress the clutch pedal and keep it depressed. Then open the air bleeder to discharge air together with the fluid.
Release the air bleeder for 1 or 2 seconds. Next, with the bleeder closed, slowly release the clutch pedal.

Fig 2: Opening Air Bleeder To Discharge Air
Repeat these steps until there are no more air bubbles in the vinyl tube.
CAUTION: Cover bleeder with waste cloth when loosening it, to prevent brake fluid from being splashed over surrounding parts.
Tighten air bleeder.
Tightening torque: 8+/-2 N.m (0.8+/-0.2 kg-m, 5.8+/-1.4 ft-lb

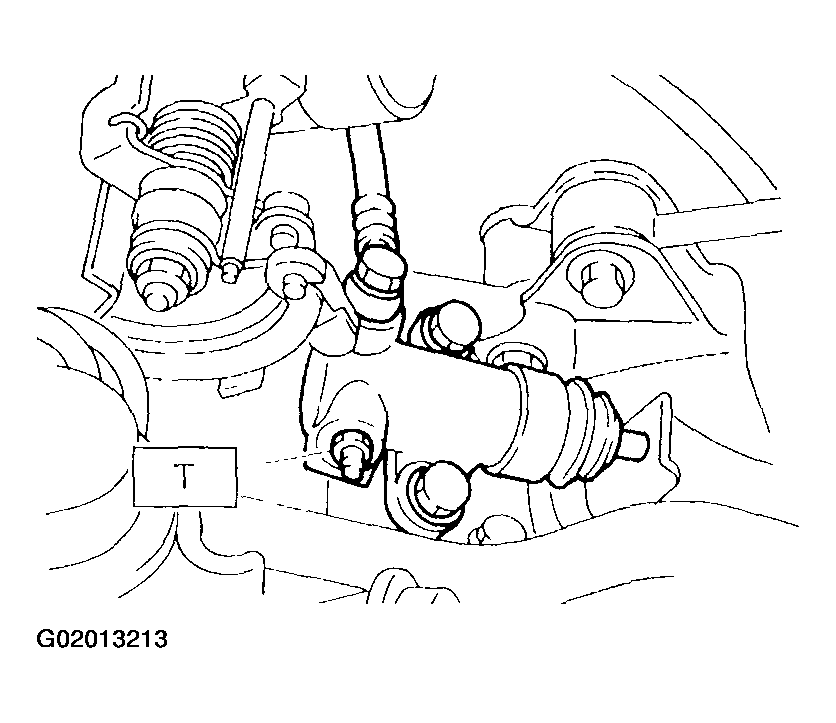

Fig 3: Tightening Air Bleeder
After depressing the clutch pedal, make sure that there are no leaks evident in the entire system.
After bleeding air from system, ensure that clutch operates properly.
