Clutch Disc And Cover: Installation

Install flywheel and ST.
ST 498497100 CRANKSHAFT STOPPER

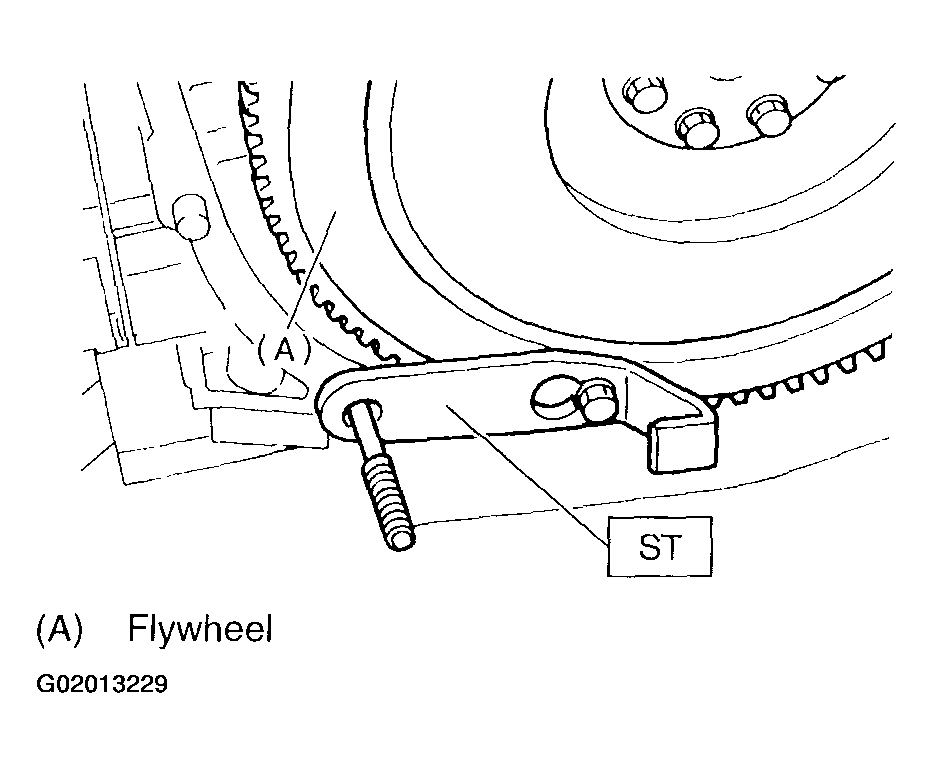

Fig 1: Identifying Placement Of Crankshaft Stopper On Flywheel
Tighten the flywheel attaching bolts to the specified torque.
NOTE: Tighten flywheel installing bolts gradually. Each bolt should be tightened to the specified torque in a crisscross fashion.

Tightening torque: 72+/-3 N.m (7.3+/-0.3 kg-m, 52.8+/-2.2 ft-lb)

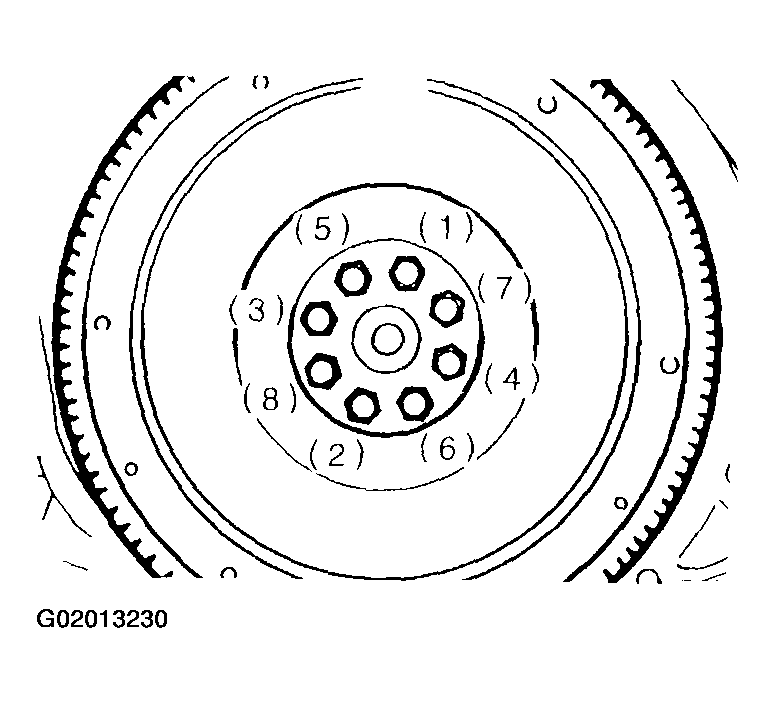

Fig 2: Identifying Tightening Sequence Of Flywheel Bolts
Insert ST into the clutch disc and install them on the flywheel by inserting the ST end into the pilot bearing.
ST 499747100 CLUTCH DISC GUIDE

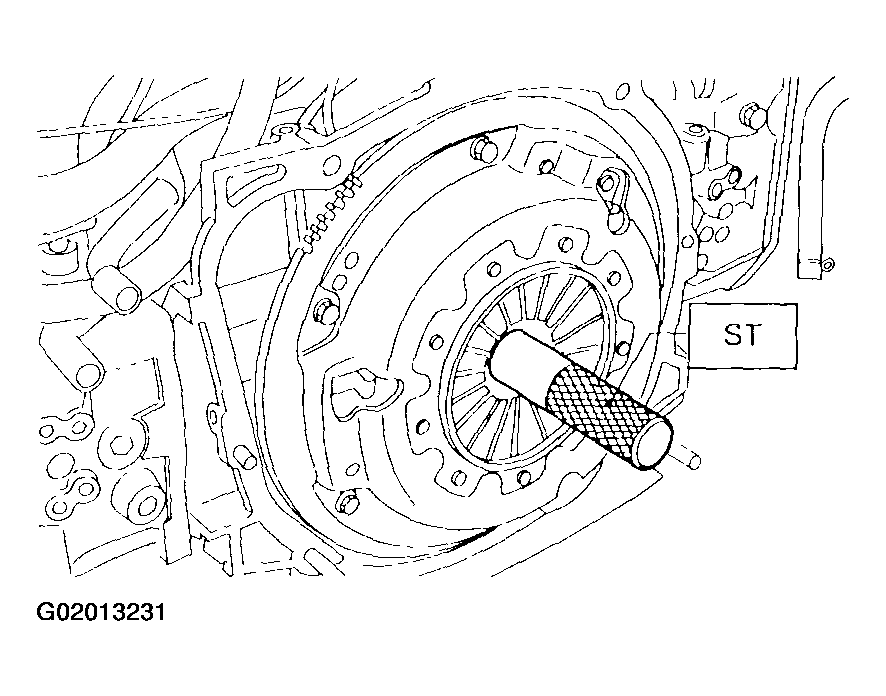

Fig 3: Inserting Clutch Disc Guide Through Clutch Disc & Into Pilot Bearing
Install clutch cover on flywheel and tighten bolts to the specified torque.
NOTE:
- When installing the clutch cover on the flywheel, position the clutch cover so that there is a gap of 120° or more between "0" marks on the flywheel and clutch cover ("0" marks indicate the directions of residual unbalance.). See Fig 4 .
- Note the front and rear of the clutch disc when installing.
- Tighten clutch cover installing bolts gradually. Each bolt should be tightened to the specified torque in a crisscross fashion.
Tightening torque: 15.7+/-1.5 N.m (1.6+/-0.15 kg-m, 11.6+/-1.1 ft-lb).
Remove ST.
ST 499747100 CLUTCH DISC GUIDE

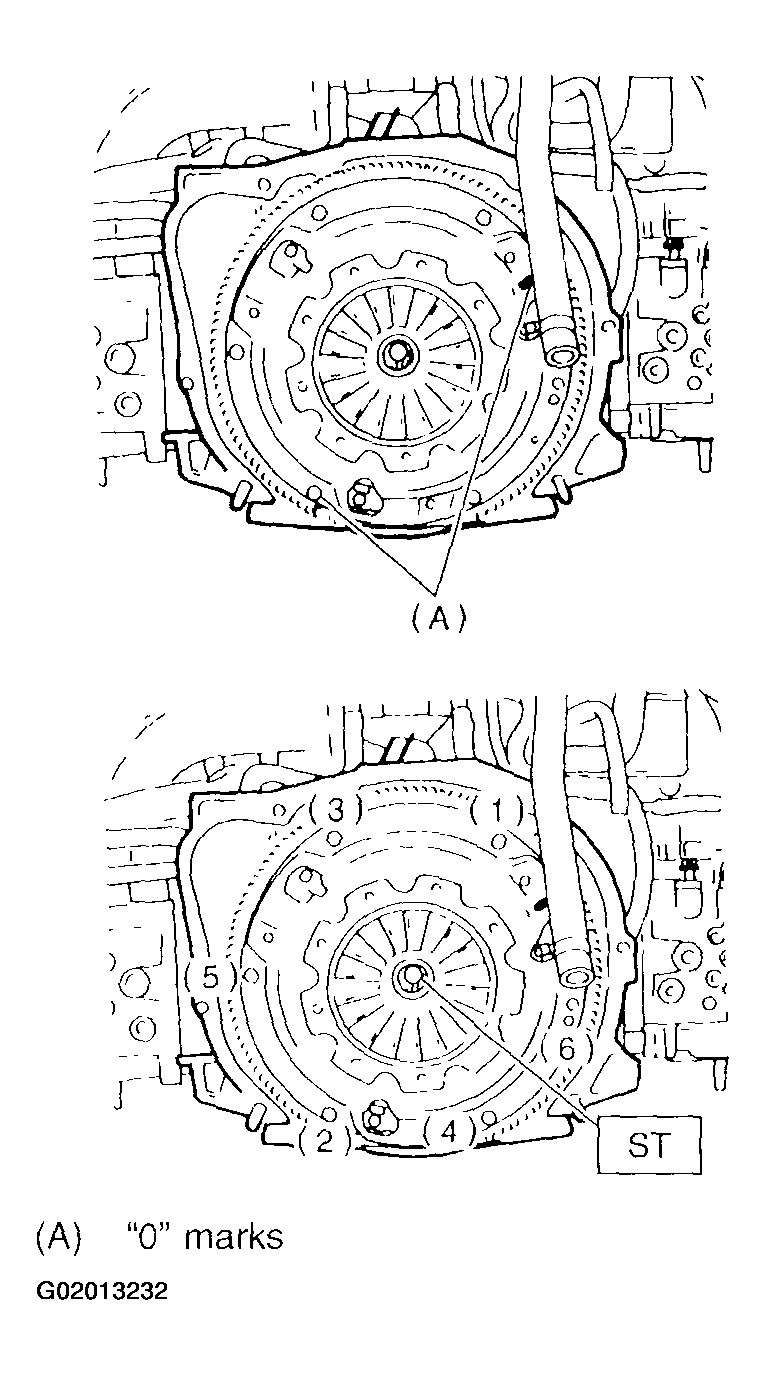

Fig 4: Identifying "0" Marks On Flywheel & Clutch Cover
