Oil Pump: Construction

The trochoid pump is housed in the oil pump housing. It consists of a inner rotor (9 teeth), outer rotor (10 teeth) and oil pump cover.

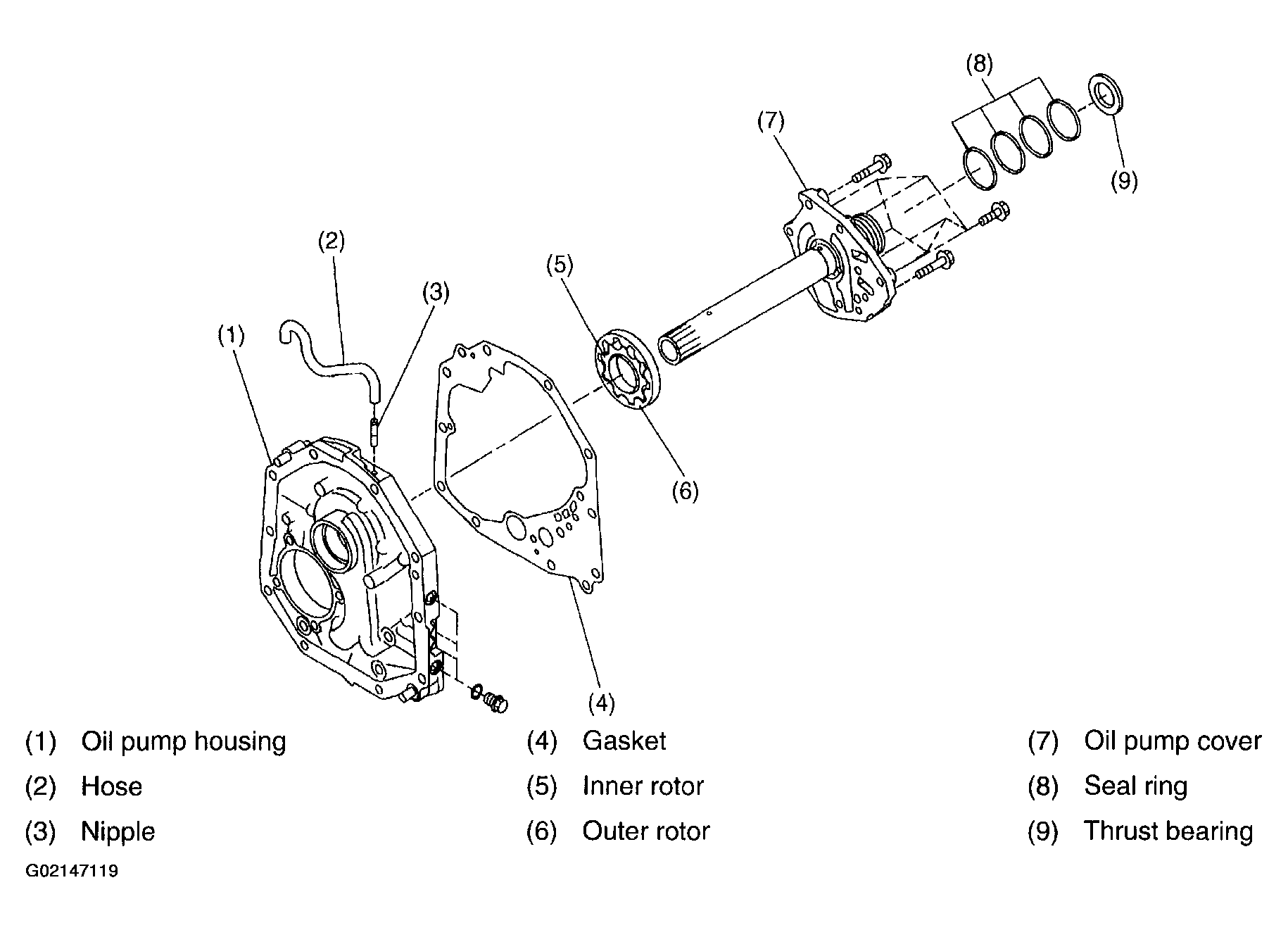

Fig 1: Identifying Oil Pump Components
G02147119
