Torque Converter Clutch Assembly: Removal

  1. Extract the torque converter clutch assembly.
    NOTE:
    • Extract the torque converter clutch horizontally. Be careful not to scratch the bushing inside the oil pump shaft.
    • Note that oil pump shaft also comes out.

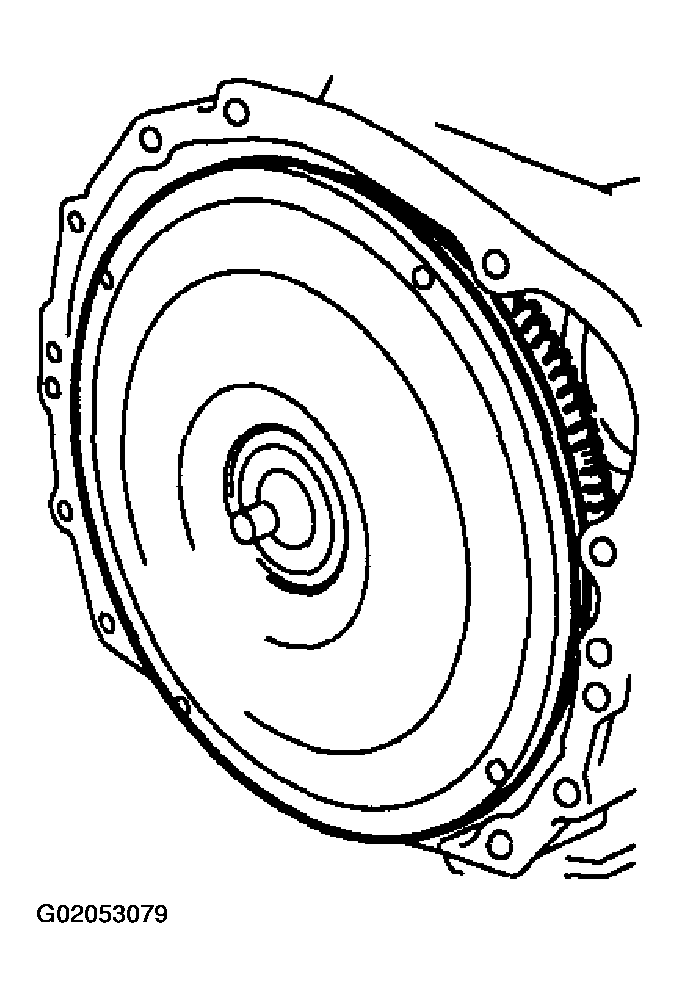

    Fig 1: Extracting Torque Converter Clutch Assembly
    G02053079
  2. Remove the input shaft.
    NOTE: When the torque converter clutch assembly is removed, the input shaft will come out.

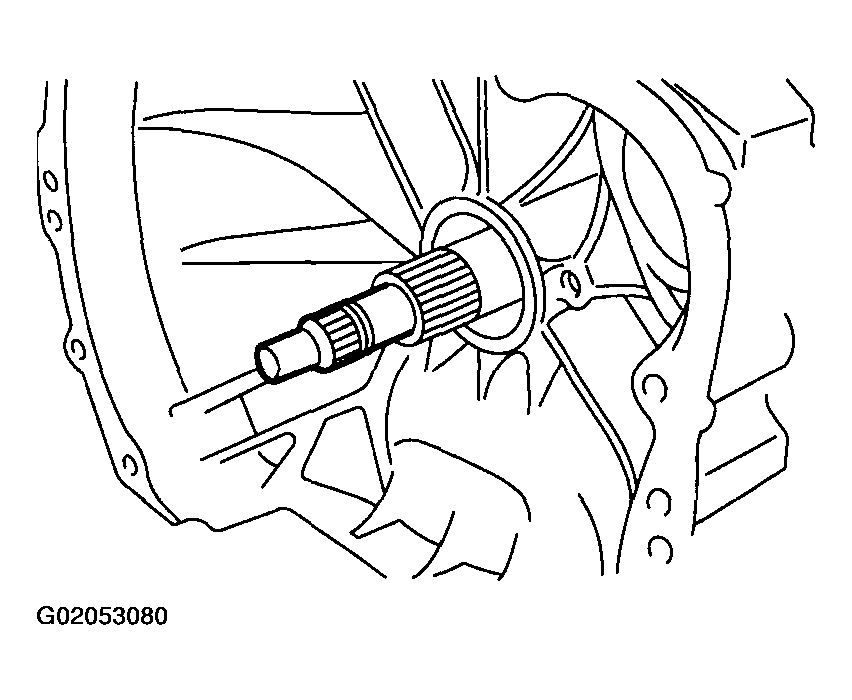

    Fig 2: Removing Input Shaft
    G02053080
  3. Extract the oil pump shaft from torque converter clutch.
  4. Remove the clip from torque converter clutch.
