Reduction Drive Gear: Removal

  1. Remove rear vehicle speed sensor, and separate the transmission case and extension case. See REMOVAL  .
  2. Without VTD: Remove the reduction driven gear. See Reduction Driven Gear  .
  3. Using ST, extract the reduction drive gear.

    ST1 499737100 PULLER

    ST2 899524100 PULLER SET

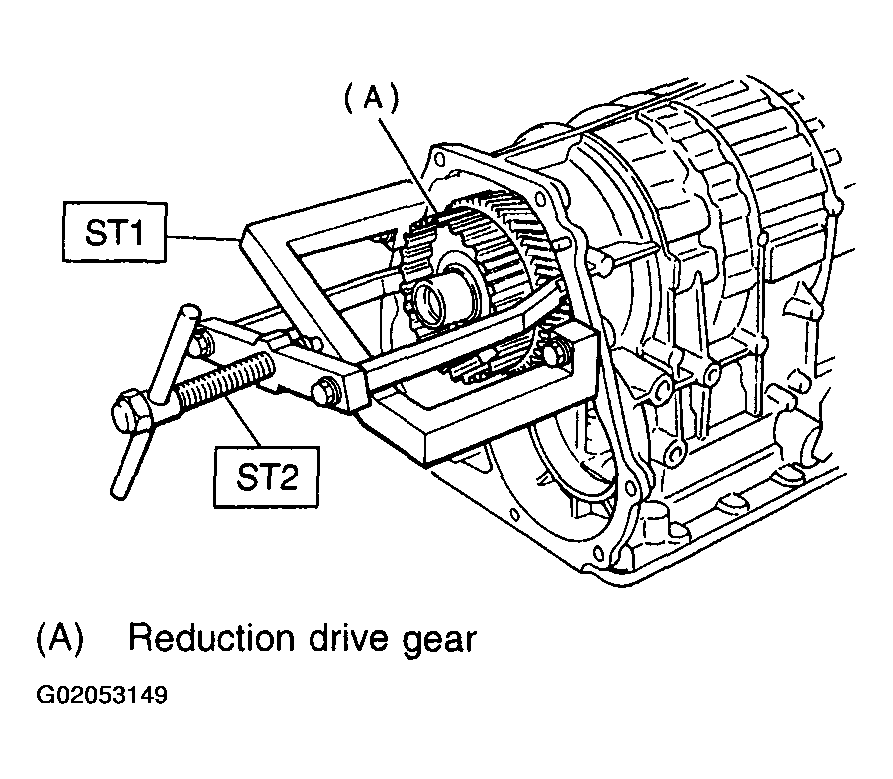

    Fig 1: Extracting Reduction Drive Gear
    G02053149
