Reduction Drive Gear: Disassembly: Fwd

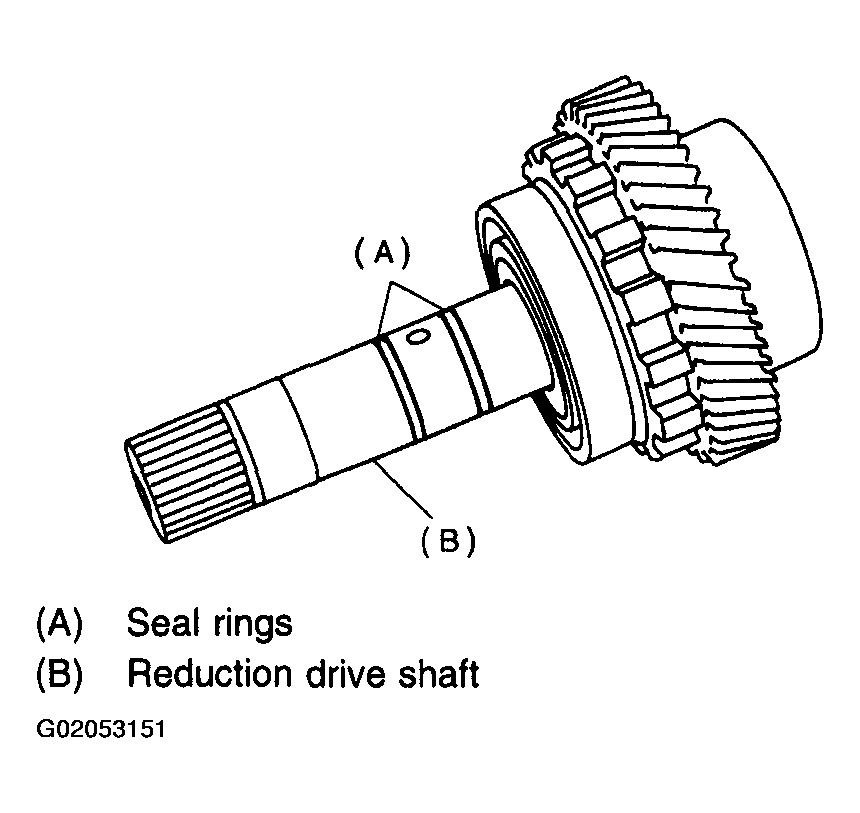

Take out the seal rings.
CAUTION: Be careful not to damage the seal rings.

Fig 1: Taking Out Seal Rings
Using ST, remove the ball bearing of rear side.
ST 498077600 REMOVER

Fig 2: Removing Rear Side Ball Bearing
Using a press, remove the reduction drive gear.

Fig 3: Removing Reduction Drive Gear

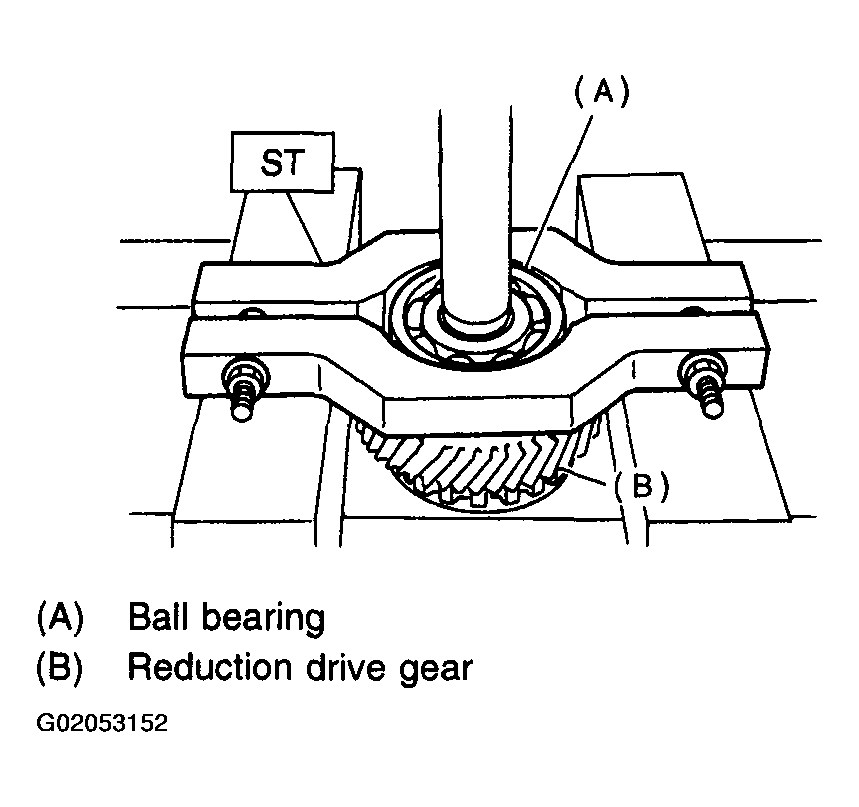

Using a press, remove the ball bearing.
ST1 499577000 ADAPTER

ST2 498077600 REMOVER

Fig 4: Removing Ball Bearing
