Reduction Drive Gear: Assembly: Fwd

  1. Press-fit the ball bearing to the reduction drive gear.

    ST 398437700 ADAPTER

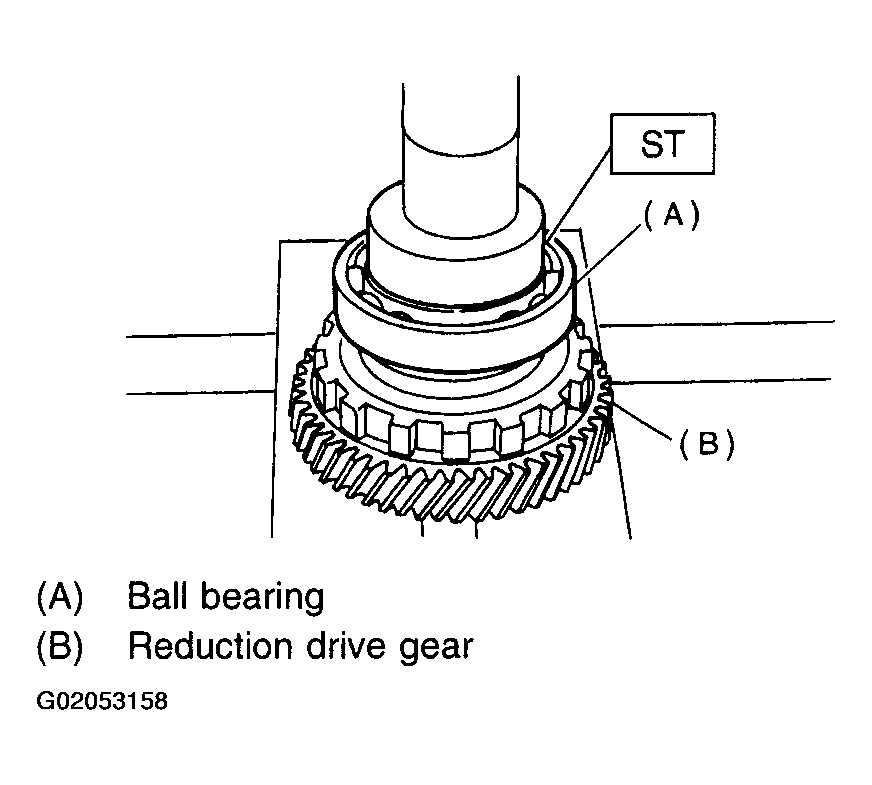

    Fig 1: Installing Ball Bearing Onto Reduction Drive Gear
    G02053158
  2. Press-fit the reduction drive gear.
  3. Press-fit the ball bearing to reduction drive shaft.

    ST 398437700 ADAPTER

    Fig 2: Installing Ball Bearing Onto Reduction Drive Shaft
    G02053159
  4. Attach two seal rings.
    NOTE: To make subsequent assembly easier, apply vaseline to the grooves of the shaft and to the exterior of the seal ring.

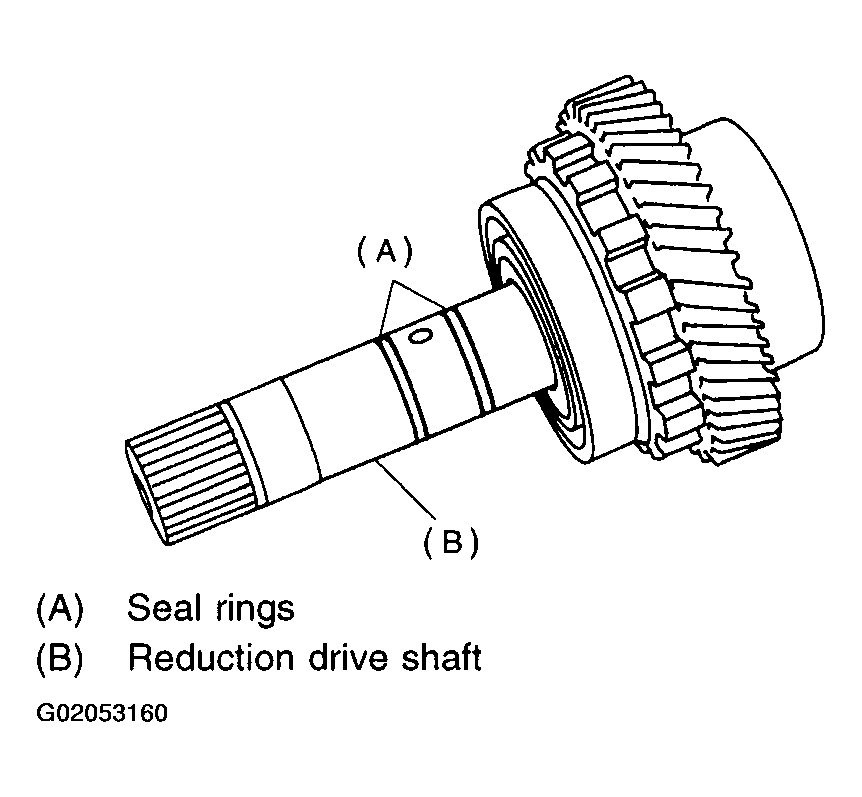

    Fig 3: Attaching Seal Rings
    G02053160
