Parking Pawl: Installation

Install the parking pawl, shaft and return spring.

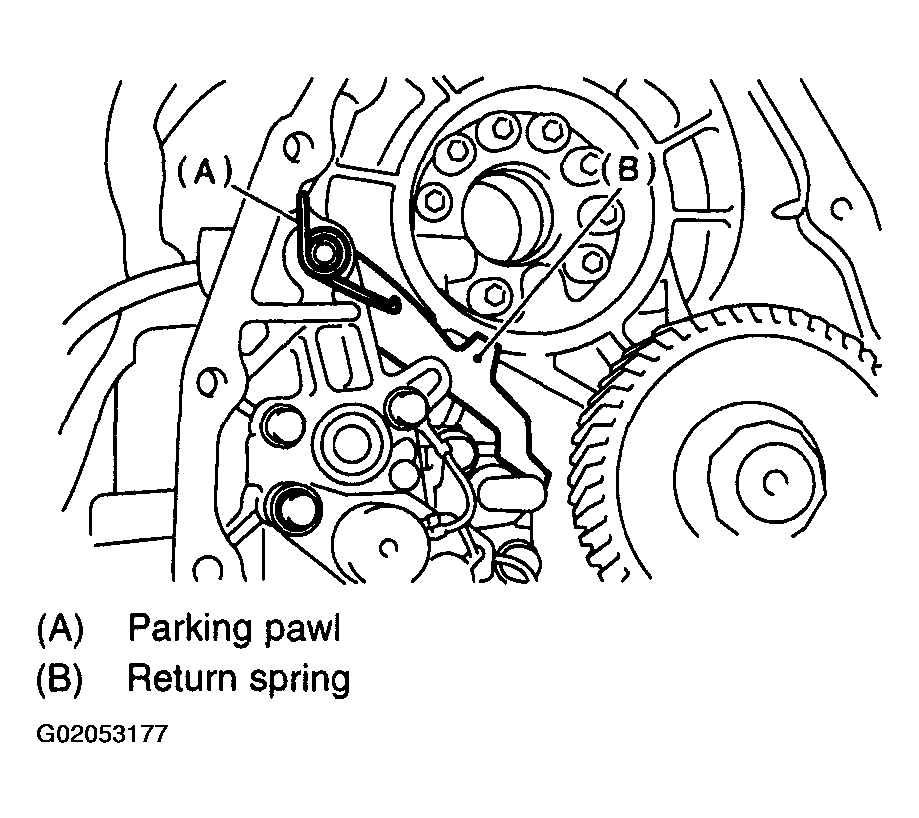

Fig 1: Installing Parking Pawl, Shaft & Return Spring
For the model without VTD, install the reduction drive gear. For the model with VTD, install the center differential gear assembly.
Without VTD: See INSTALLATION .

With VTD: See INSTALLATION .
Install the extension case to the transmission case.
CAUTION: Be sure to use a new gasket.
Install the rear vehicle speed sensor.
Tightening torque:
1. 7 N.m (0.7 kgf-m, 5.1 ft-lb)

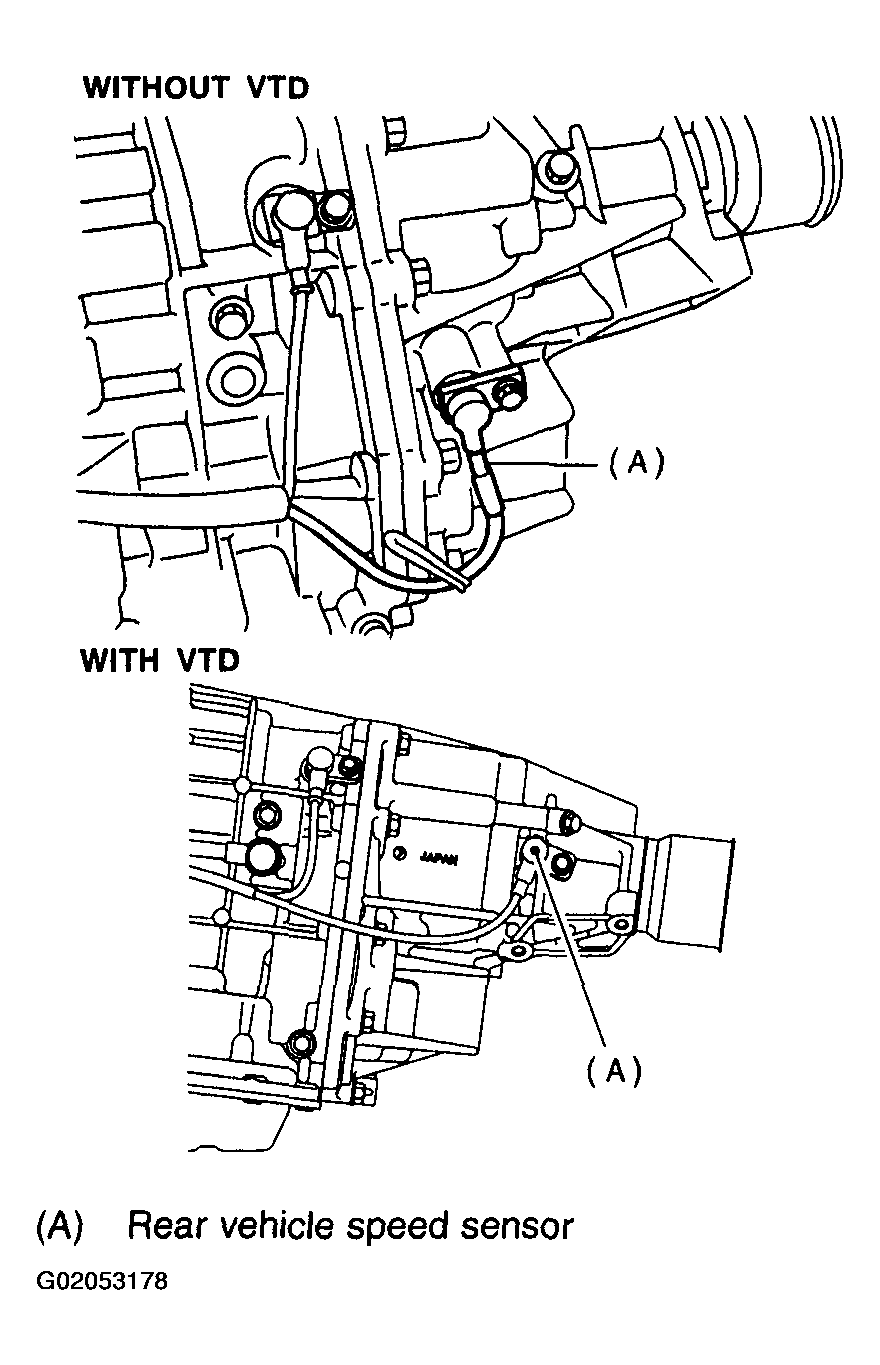

  Fig 2: Installing Rear Vehicle Speed Sensor
