Oil Cooler Pipes: Installation

Insert oil cooler outlet ball and spring.
Install the oil cooler outlet pipe with gaskets.
CAUTION: Be sure to use a new gasket.

Tightening torque:
1. 44 N.m (4.5 kgf-m, 32.5 ft-lb)
Install the oil cooler inlet pipe with gaskets.
CAUTION: Be sure to use a new gasket.

Tightening torque:
1. 25 N.m (2.5kgf-m, 18.1 ft-lb)

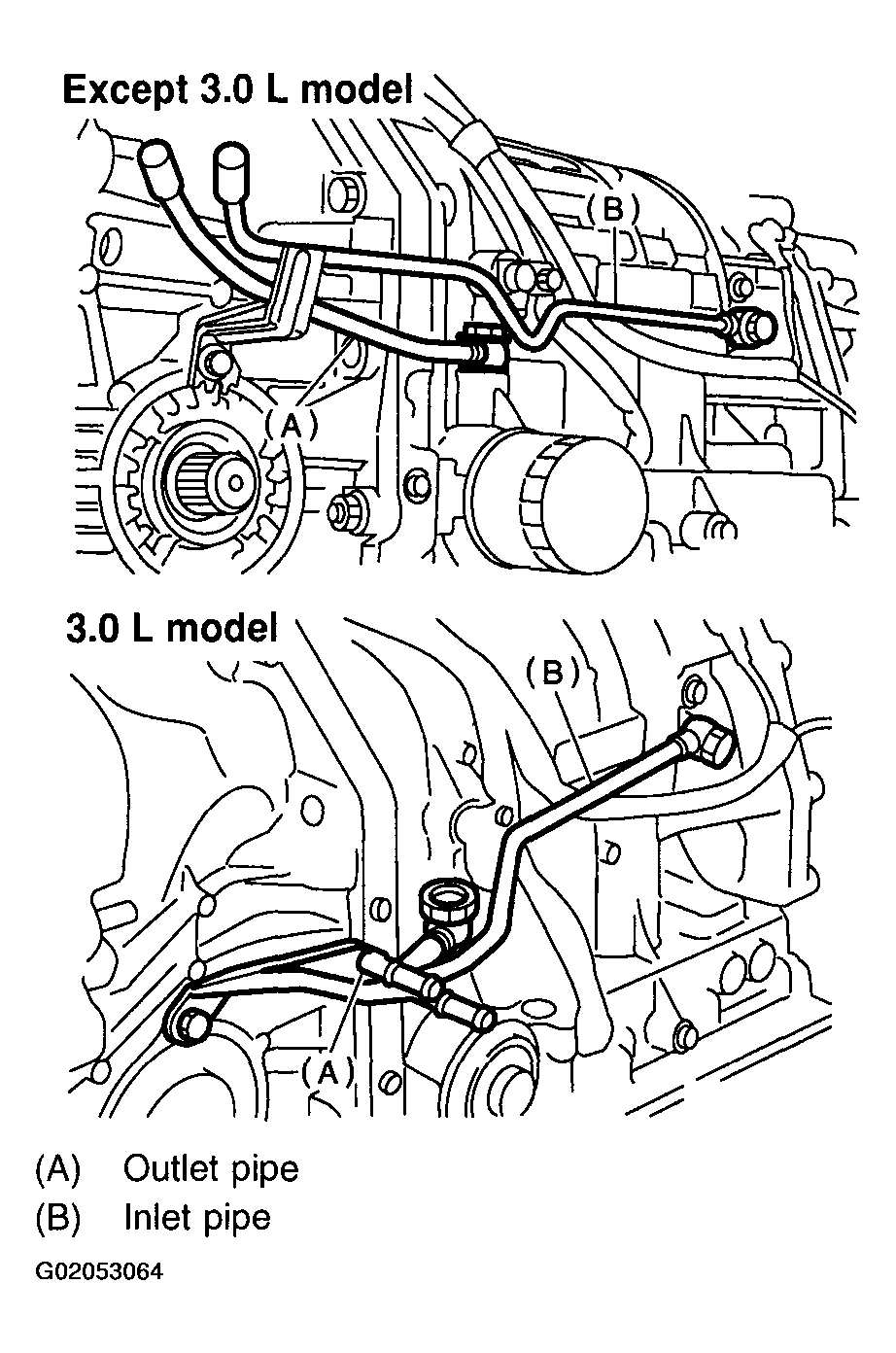

  Fig 1: Installing Oil Cooler Inlet Pipe
Install oil charger pipe with O-ring. See INSTALLATION .
