Differential Gear

Tightening torque: N.m (kgf-m, ft-lb)

  1. T1:  25 (2.5, 18.1)
  2. T2:  62 (6.3, 45.6)

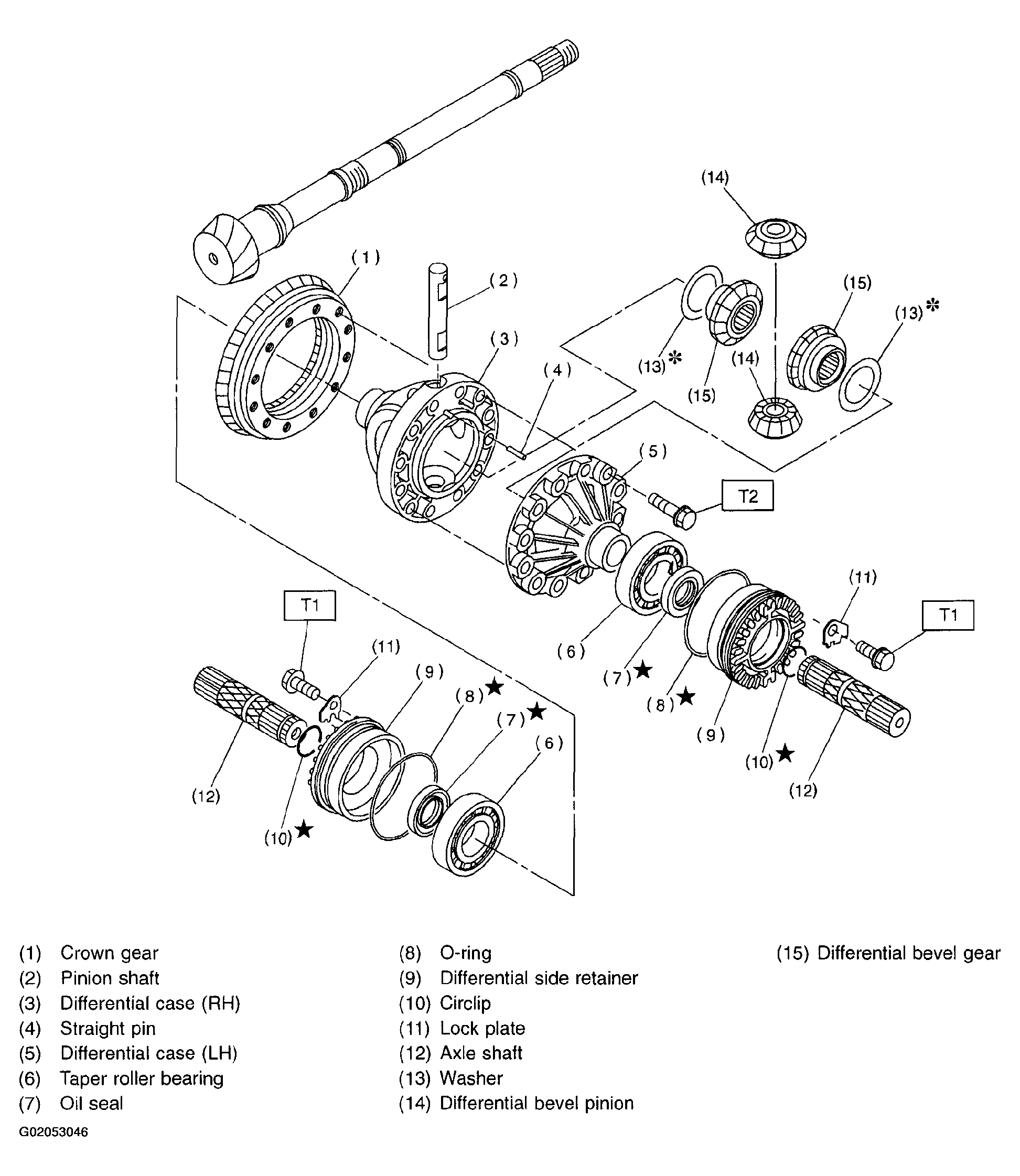

Fig 1: Exploded View Of Differential Gear
G02053046
