Center Differential Carrier: Removal

  1. Remove rear vehicle speed sensor, and separate the extension case form the transmission case. See REMOVAL  .
  2. Pull out the rear drive shaft. See Rear Drive Shaft  .
  3. Using ST, extract the center differential carrier assembly.

    ST1 499737100 PULLER

    ST2 899524100 PULLER SET

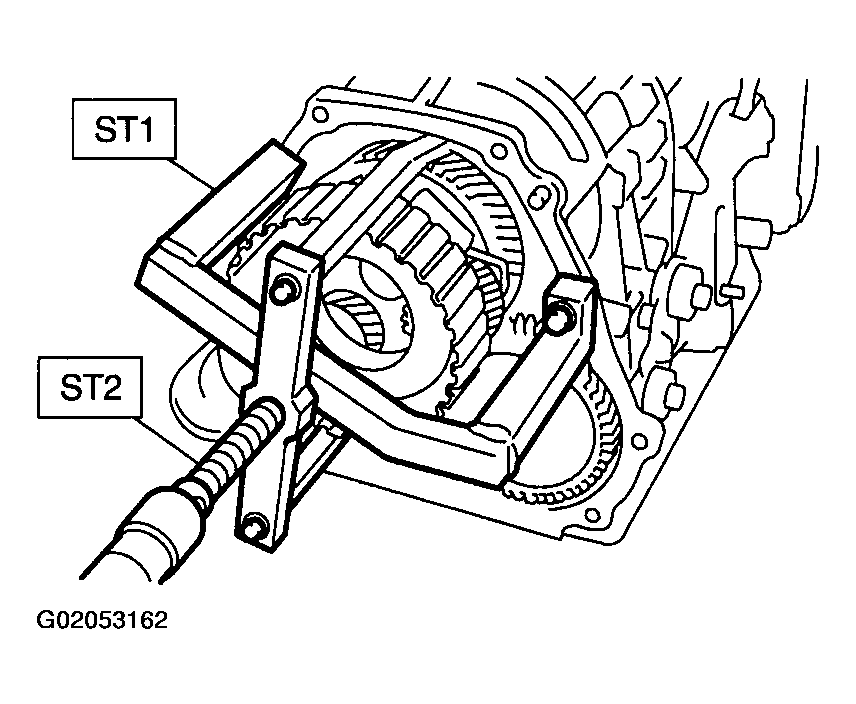

    Fig 1: Extracting Center Differential Carrier Assembly
    G02053162
  4. Extract shim from transmission case.
