Center Differential Carrier: Assembly

  1. Install thrust washer to intermediate shaft.
  2. Install thrust bearing and intermediate shaft.
  3. Install pinion gears and washers.
  4. Put shaft in center differential assembly.
  5. Install snap ring.
  6. Using a press, press-fit the ball bearing to center differential assembly.

    ST 498077000 REMOVER

    CAUTION: Be sure to use a new ball bearing.

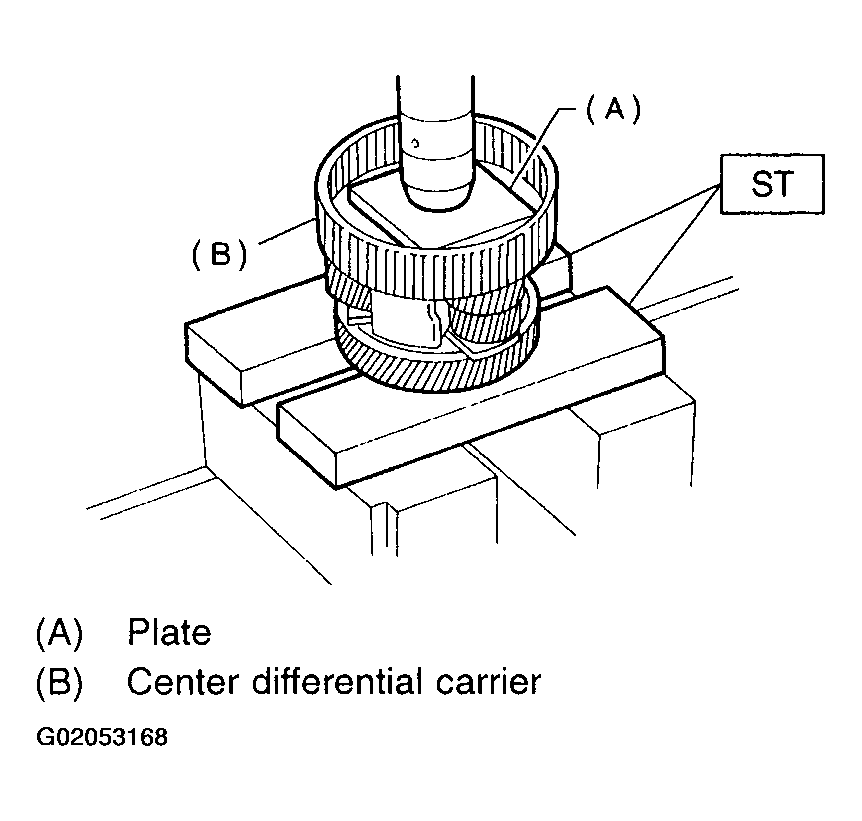

    Fig 1: Installing Ball Bearing Onto Center Differential Assembly
    G02053168
