External Parts

Using ST, install ATF filter to transmission case. Calculate ATF filter torque specifications using the following formula.
T₂ = L₂ /(T₁ + T₂ ) X T₁

T₁ : 14+/-2 N.m (1.4+/-0.2 kg-m, 10.1+/-1.4 ft-lb) [Required torque setting]

T₂ : Tightening torque

L₁ : ST length 0.078 m (3.07 in)

L₂ : Torque wrench length

CAUTION: Align ST with torque wrench while tightening ATF filter.

ST 498545400 OIL FILTER WRENCH

Fig 1: Installing ATF Filter To Transmission Case
Adjustment of inhibitor switch
1. With the select lever set to "N" adjust the inhibitor switch so that the hole of range select lever is aligned with the inhibitor switch hole with ST.
  NOTE: Ensure that gauge moves properly.

  ST 499267300 STOPPER PIN

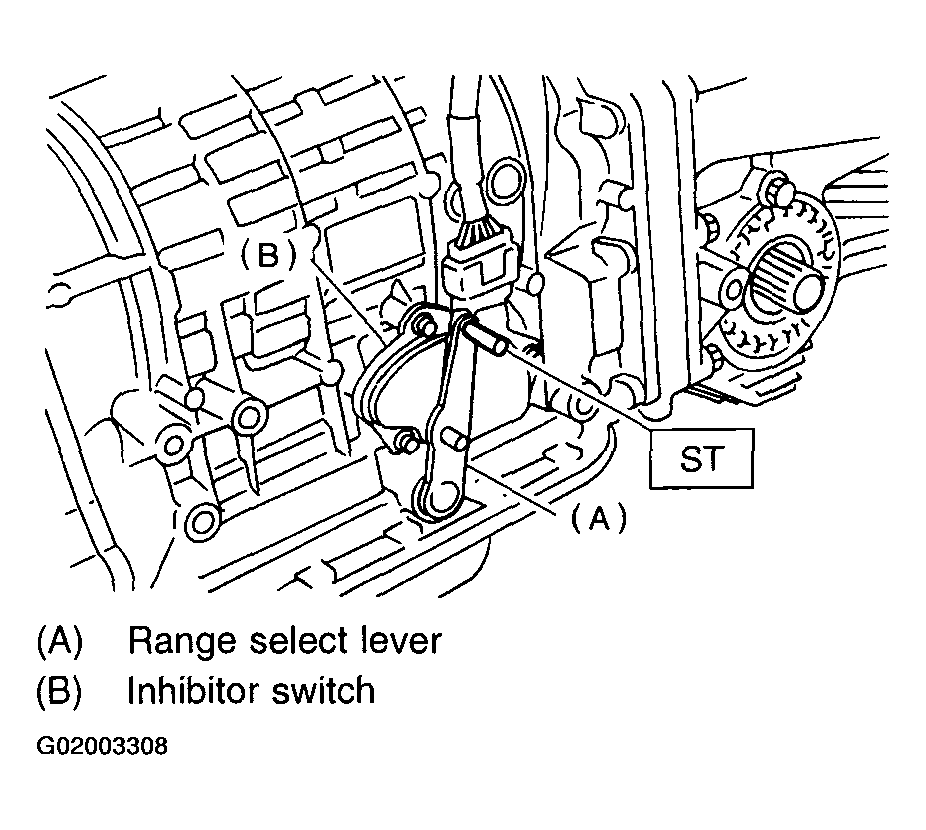

  Fig 2: Adjusting Inhibitor Switch
2. With hole aligned, tighten the three bolts to secure the inhibitor switch.
Tightening torque: 3.4+/-0.5 N.m (0.35+/-0.05 kg-m, 2.5+/-0.4 ft-lb)
Install air breather hose.

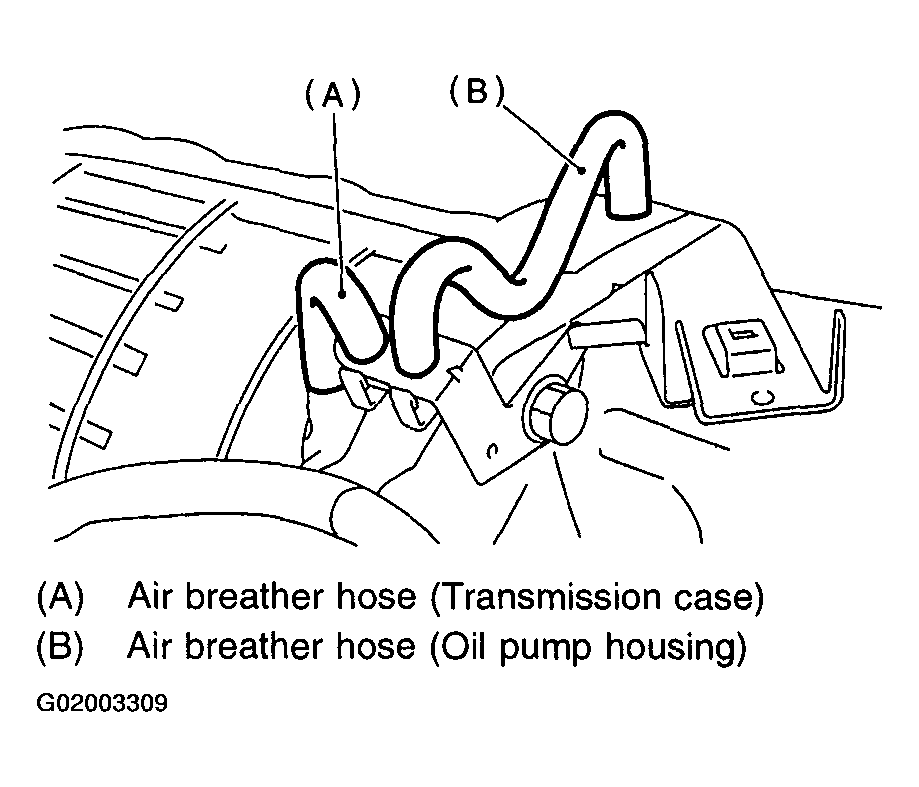

Fig 3: Installing Air Breather Hose
Insert inhibitor switch harness and transmission harness connector into stay.

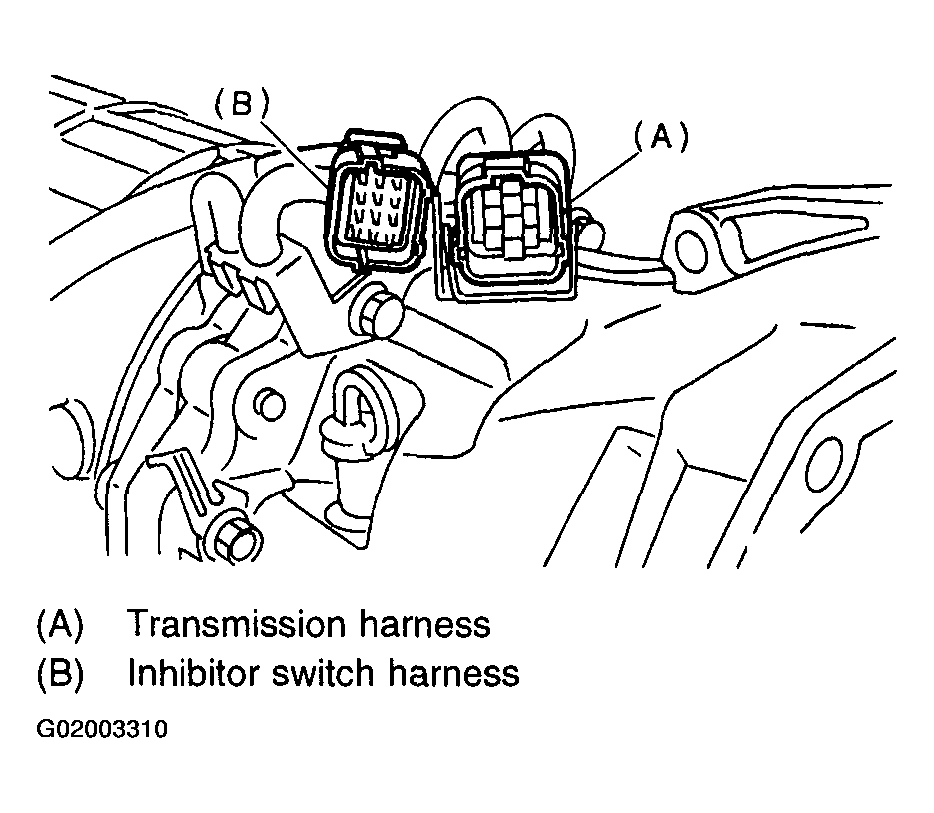

Fig 4: Inserting Inhibitor Switch Harness & Transmission Harness Connectors Into Stay
Install the oil cooler outlet pipe.
CAUTION: Be sure to use a new aluminum washer.

Tightening torque: 44+/-4 N.m (4.5+/-0.4 kg-m, 32.5+/-2.9 ft-lb)

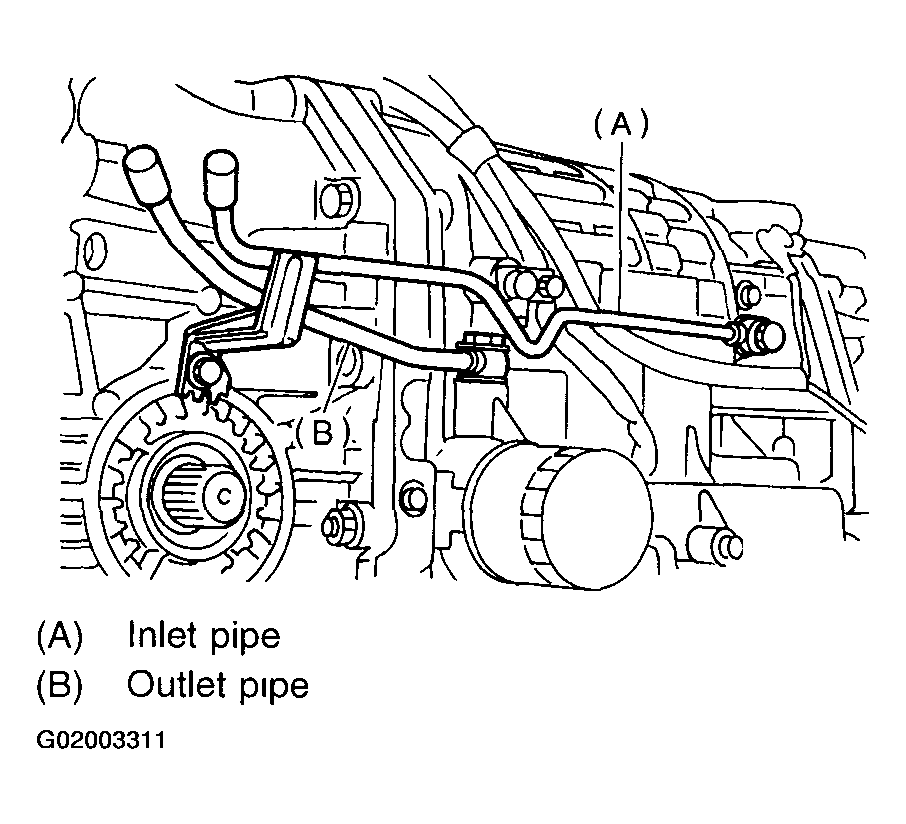

Install the oil cooler inlet pipe.
CAUTION: Be sure to use a new aluminum washer.

Tightening torque: 25+/-2 N.m (2.5+/-0.2 kg-m, 18.1+/-1.4 ft-lb)

Fig 5: Installing Oil Cooler Inlet Pipe
Install the oil charge pipe.
CAUTION: Be careful not to damage the O-ring

Tightening torque: 41+/-3 N.m (4.2+/-0.3 kg-m, 30.4+/-2.2 ft-lb)

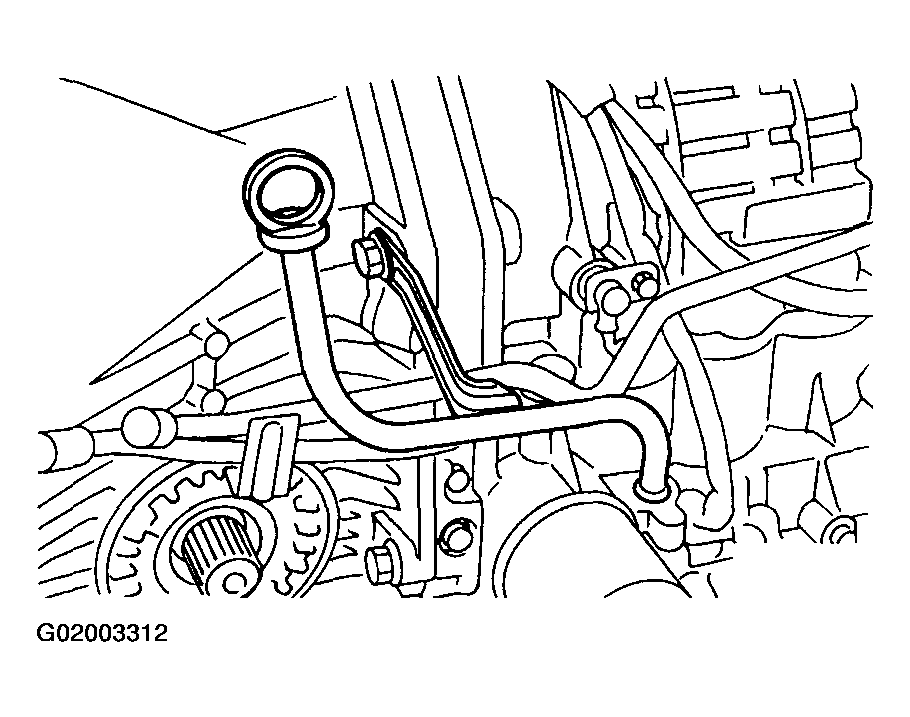

Fig 6: Installing Oil Charge Pipe
Install the pitching stopper bracket.
Tightening torque: 41+/-3 N.m (4.2+/-0.3 kg-m, 30.4+/-2.2 ft-lb)

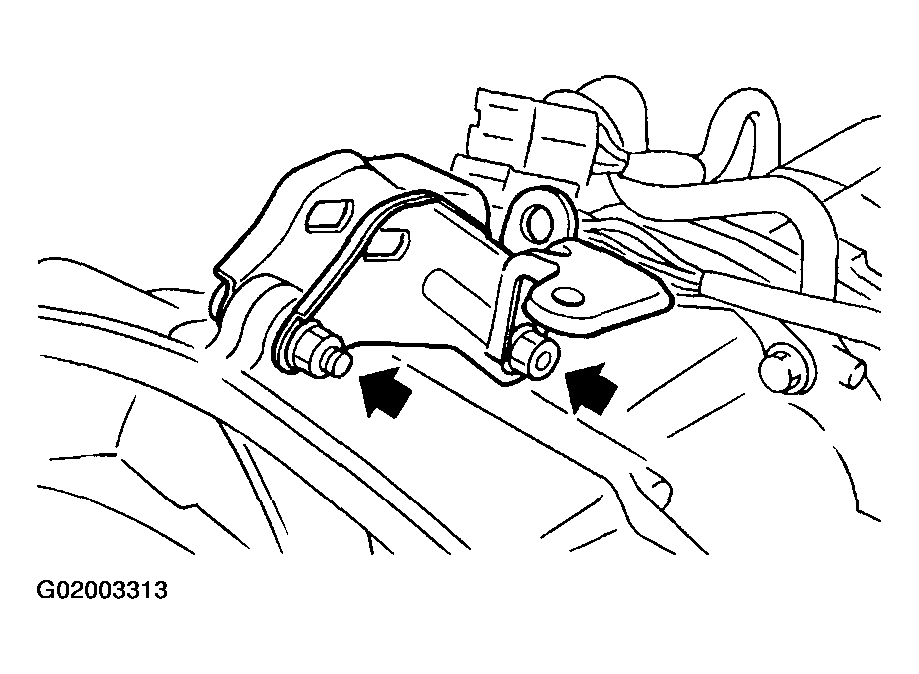

Fig 7: Installing Pitching Stopper Bracket
Tighten the drain plugs.
Tightening torque:

Diff. 44+/-3 N.m (4.5+/-0.3 kg-m, 32.5+/-2.2 ft-lb)

ATF 25+/-2 N.m (2.5+/-0.2 kg-m, 18.1+/-1.4 ft-lb)

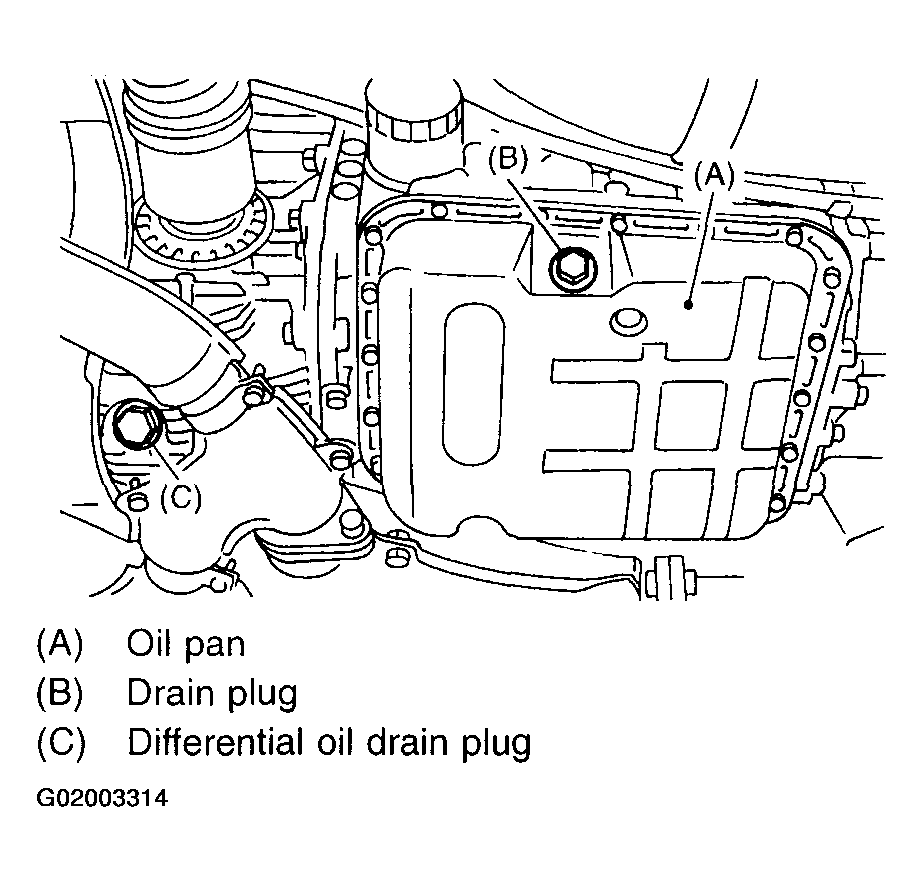

Fig 8: Identifying Transmission Fluid Drain Plugs
Insert the input shaft while turning lightly by hand.
CAUTION: Be careful not to damage the bushing.

Normal protrusion A: 50 - 55 mm (1.97 - 2.17 in)

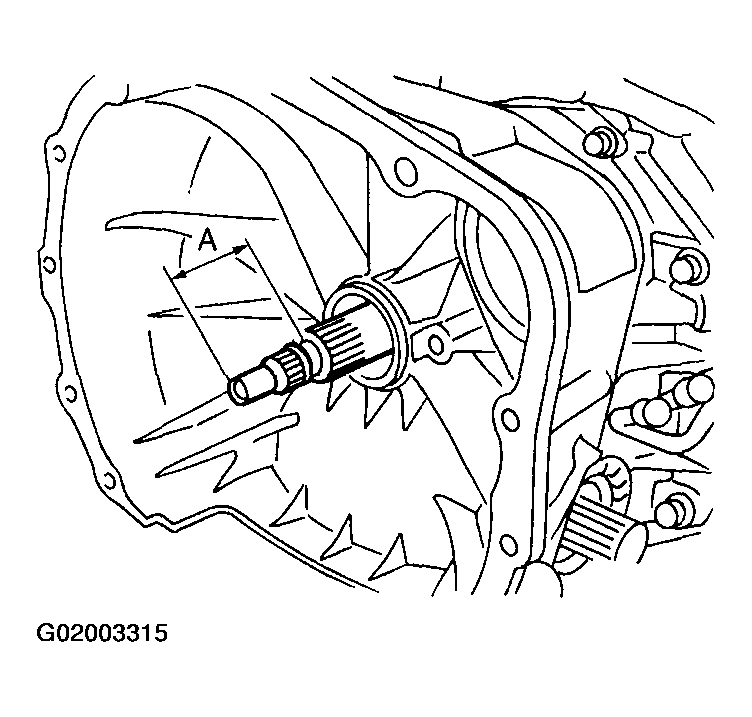

Fig 9: Inserting Input Shaft While Turning Lightly By Hand
Install the torque converter clutch assembly.
1. Install the oil pump shaft to the torque converter clutch.
  NOTE: Make sure the clip fits securely in its groove.
2. Holding the torque converter clutch assembly by hand, carefully install it to the torque converter clutch case. Be careful not to damage the bushing. Also avoid undue contact between the oil pump shaft bushing and stator shaft portion of the oil pump cover.
3. Rotate the shaft lightly by hand to engage the splines securely.
  Dimension A: 2.7 - 2.9 mm (0.106 - 0.144 in)

  Fig 10: Identifying Dimension "A"
