Torque Converter Clutch And Case

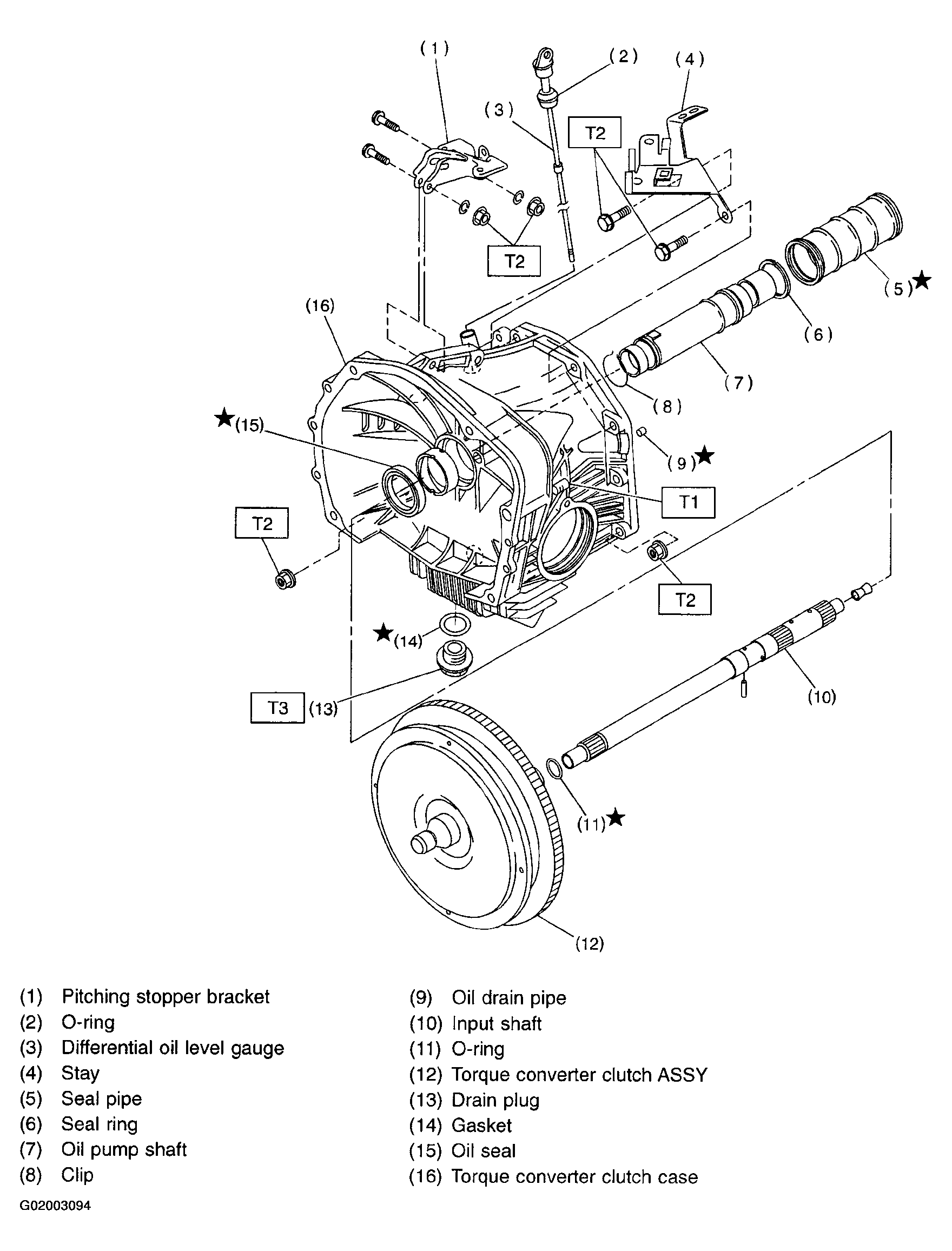

Fig 1: Identifying Torque Converter Clutch & Case Components
G02003094

Tightening torque: N.m (kg-m, ft-lb)

T1:  18+/-5 (1.8+/-0.5, 13.0+/-3.6)

T2:  41+/-3 (4.2+/-0.3, 30.4+/-2.2)

T3:  44+/-3 (4.5+/-0.3, 32.5+/-2.2)
