Home >> Subaru >> 2001 >> Forester Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> On-Vehicle Service & Testing >> Component Parts >> Planetary Gear And 2-4 Brake

Planetary Gear And 2-4 Brake

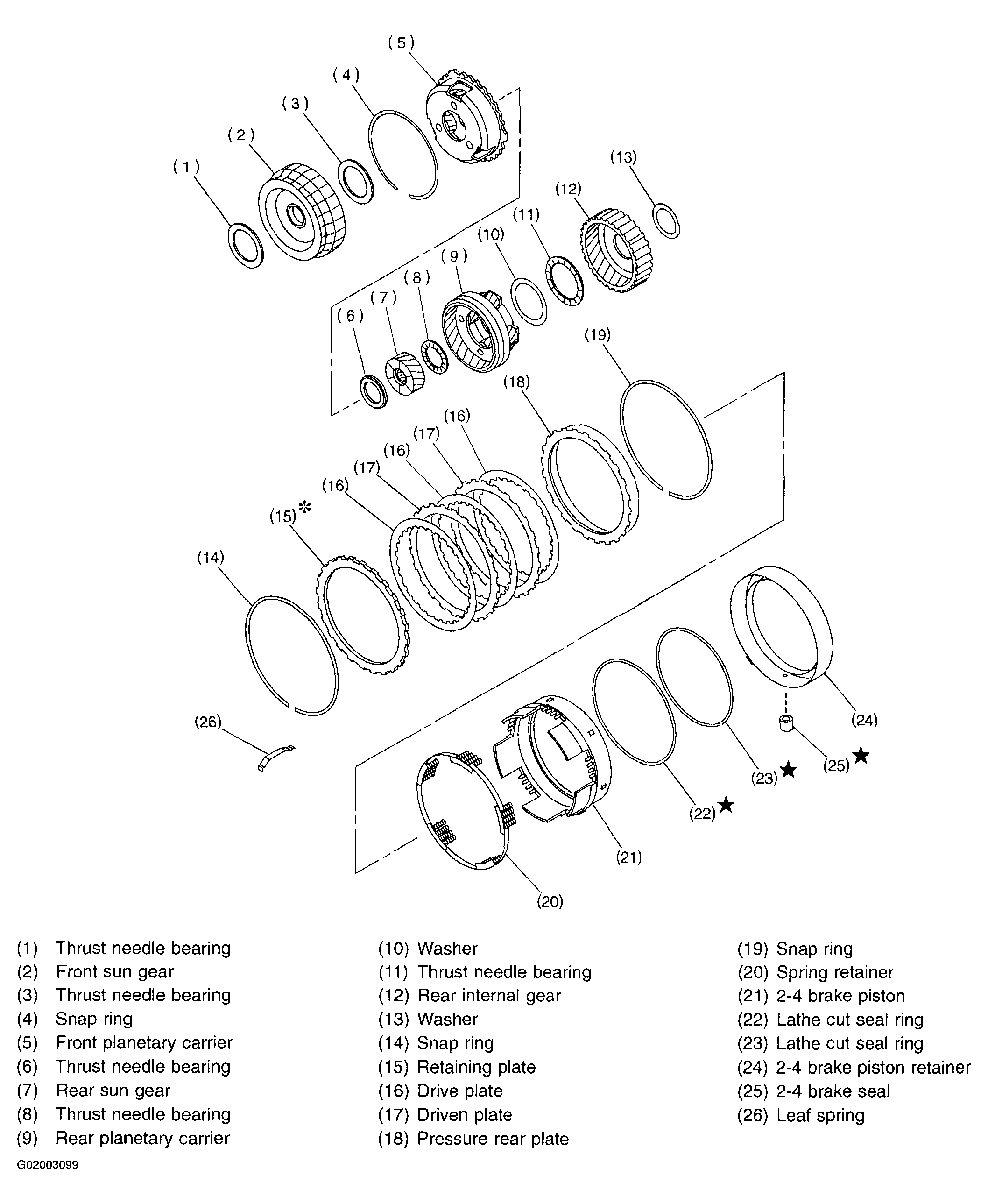

Fig 1: Identifying Planetary Gear & 2-4 Brake Components

G02003099
