Schematic Drawing
>>
Second Speed Of D, 3 & 2 Range
Second Speed Of D, 3 & 2 Range

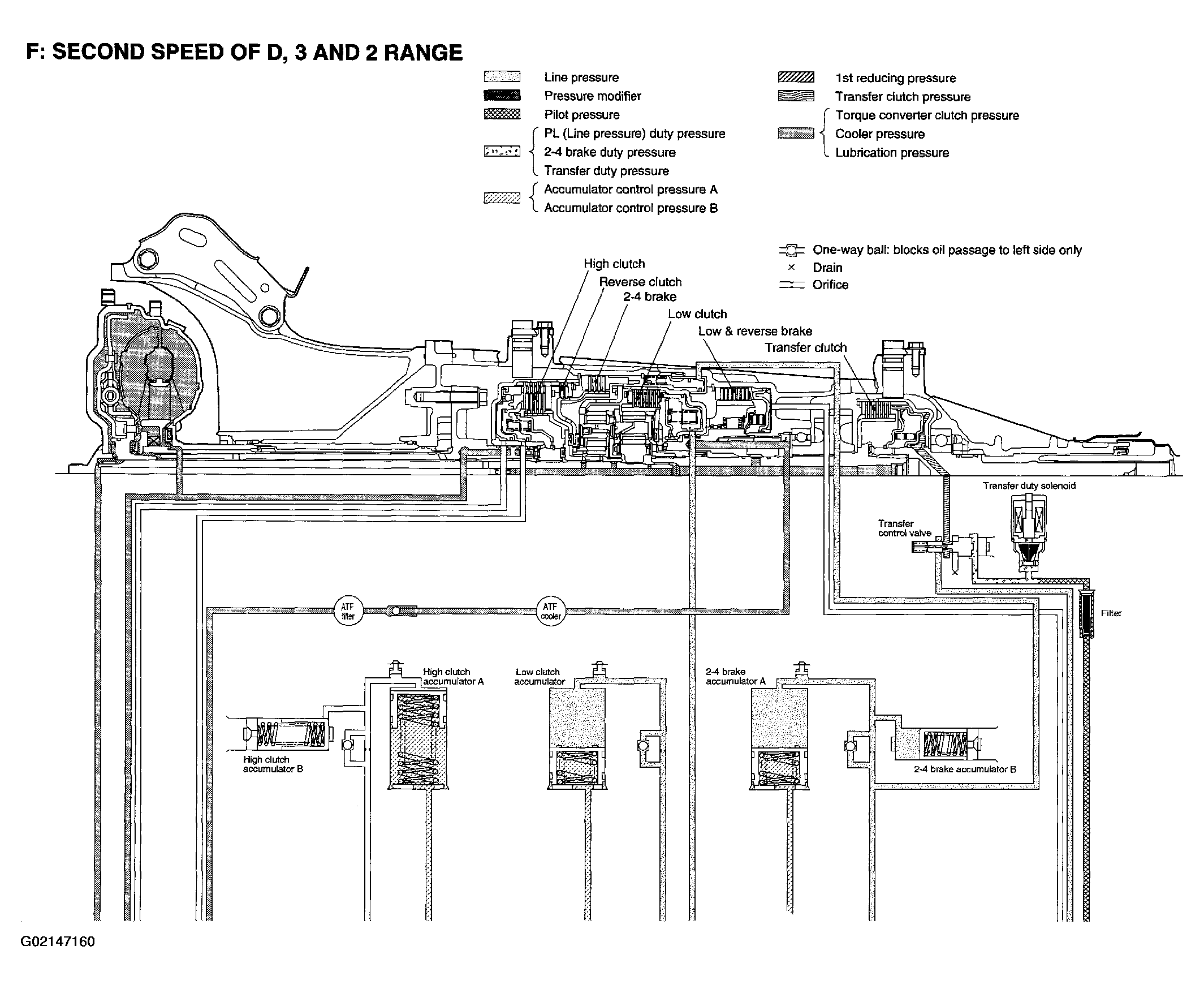

Fig 1: Second Speed Of D, 3 & 2 Range - Schematic Drawing (1 Of 2)

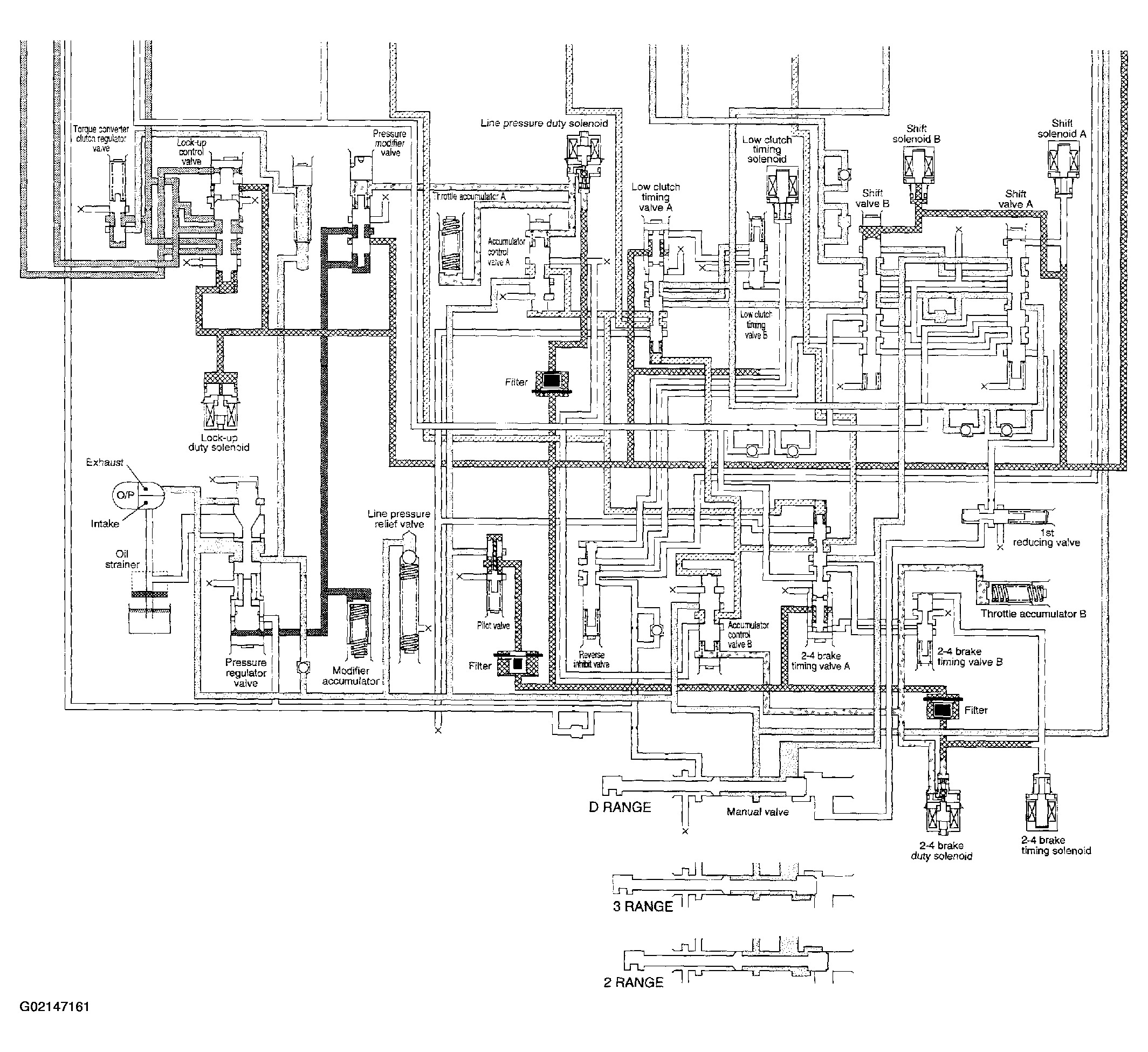

Fig 2: Second Speed Of D, 3 & 2 Range - Schematic Drawing (2 Of 2)
