Fourth Speed Of D Range (Lock-Up On)

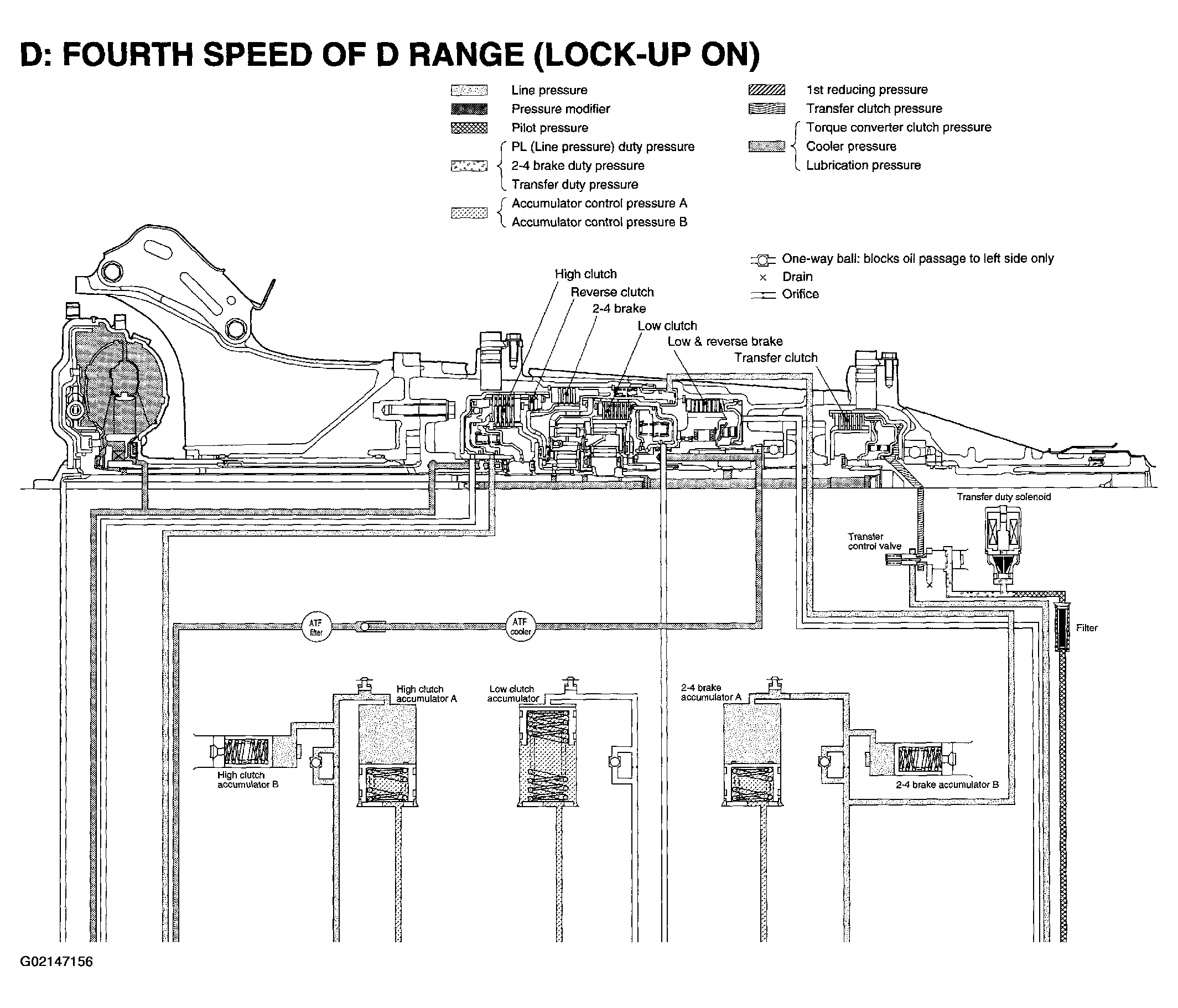

Fig 1: Fourth Speed Of D Range (Lock-Up On) - Schematic Drawing (1 Of 2)

G02147156

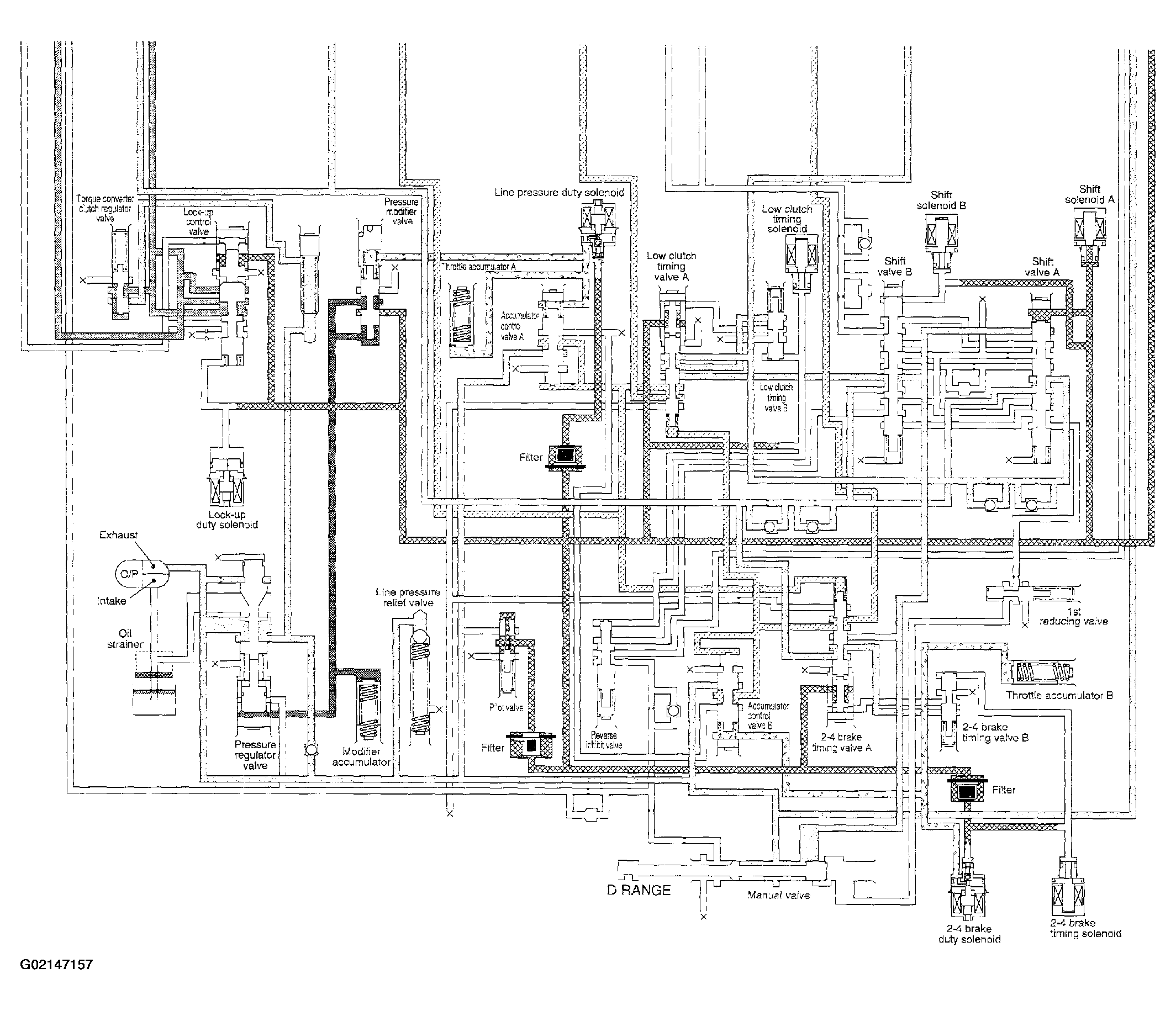

Fig 2: Fourth Speed Of D Range (Lock-Up On) - Schematic Drawing (2 Of 2)

G02147157
