Fourth Speed Of D Range (Lock-Up Off)

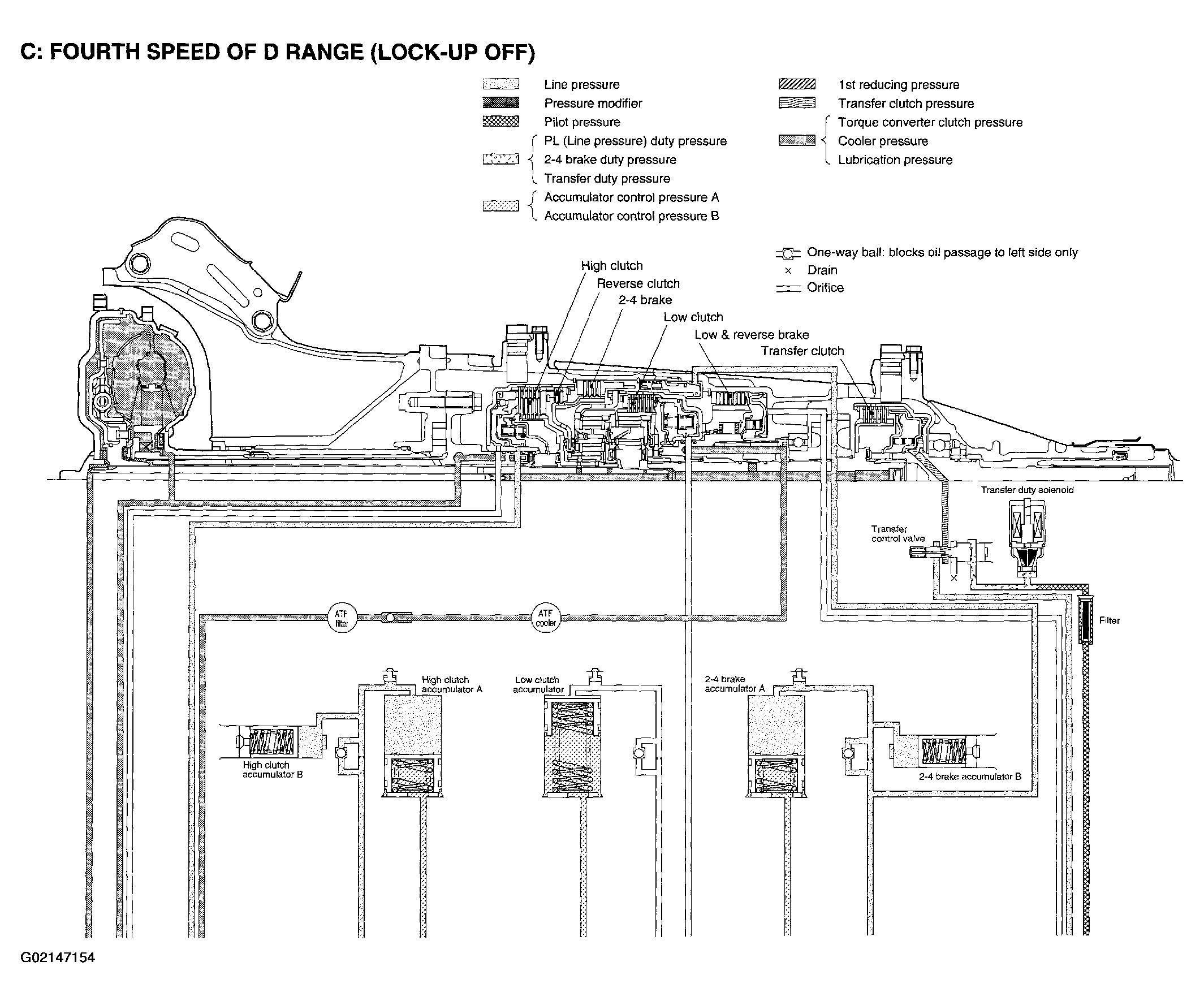

Fig 1: Fourth Speed Of D Range (Lock-Up Off) - Schematic Drawing (1 Of 2)

G02147154

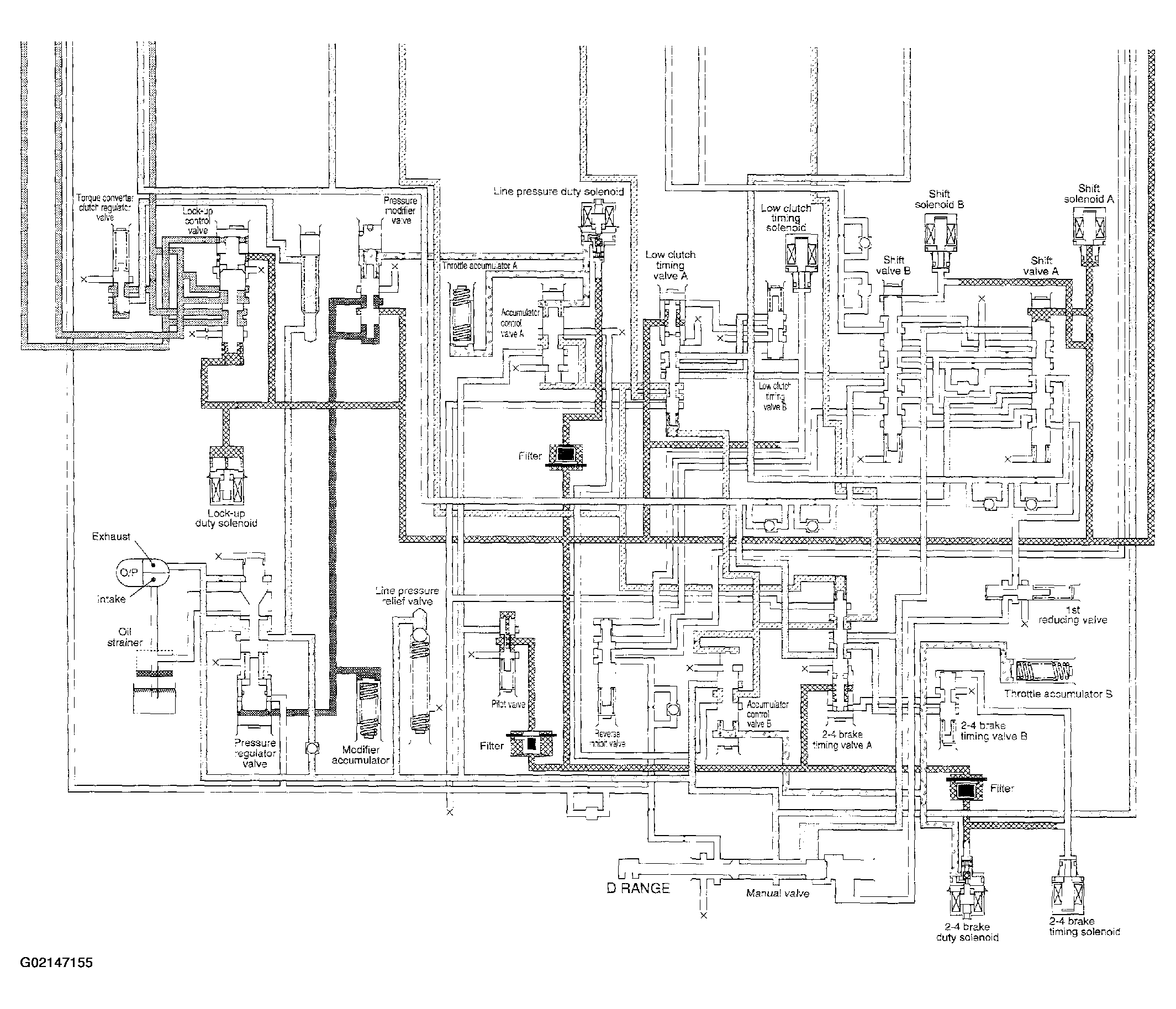

Fig 2: Fourth Speed Of D Range (Lock-Up Off) - Schematic Drawing (2 Of 2)

G02147155
