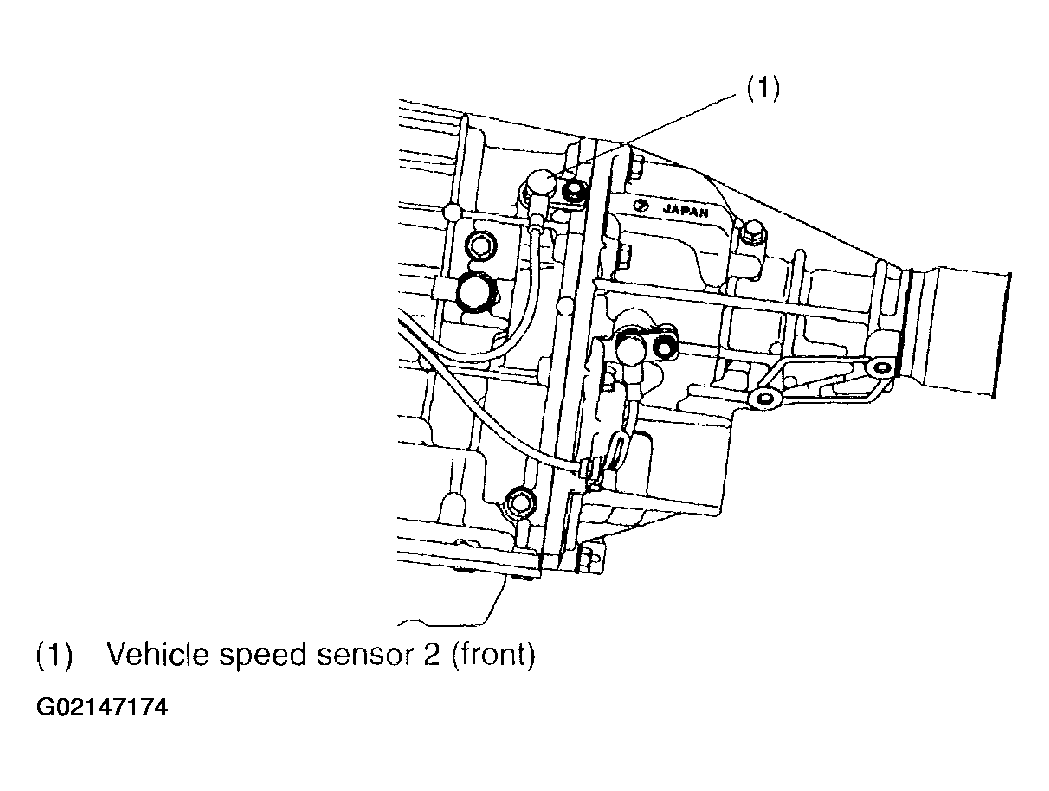

Vehicle Speed Sensor 2 (Front)
The vehicle speed sensor 2 (output shaft rotation sensor) is mounted to the transmission case (from the outside of the case). It detects the front wheel speed and sends sine wave signals (16 pulses per rotation) to TCM.
The TCM converts the signals into 4-pulse normal wave signals and outputs them to the engine control module (ECM) and the combination meter.
