Trailing Link: Notes

For trailing link component location, see Fig 1.

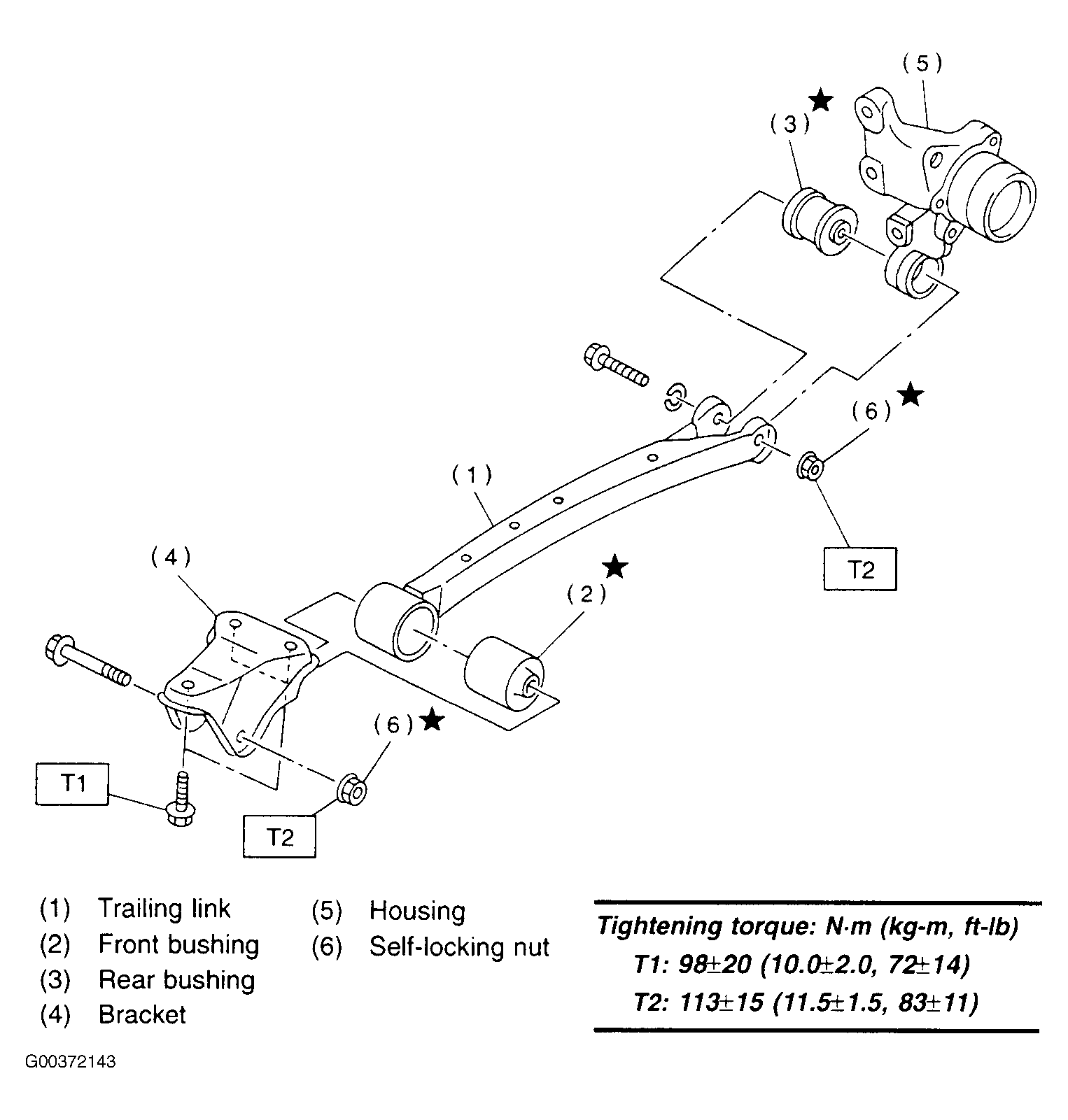

Fig 1: Exploded View Of Trailing Link
G00372143Courtesy of SUBARU OF AMERICA, INC.
