Home >> Subaru >> 2001 >> Forester Base >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Removal & Installation >> Stabilizer >> Notes

Removal & Installation: Stabilizer: Notes

For stabilizer component location, see Fig 1.

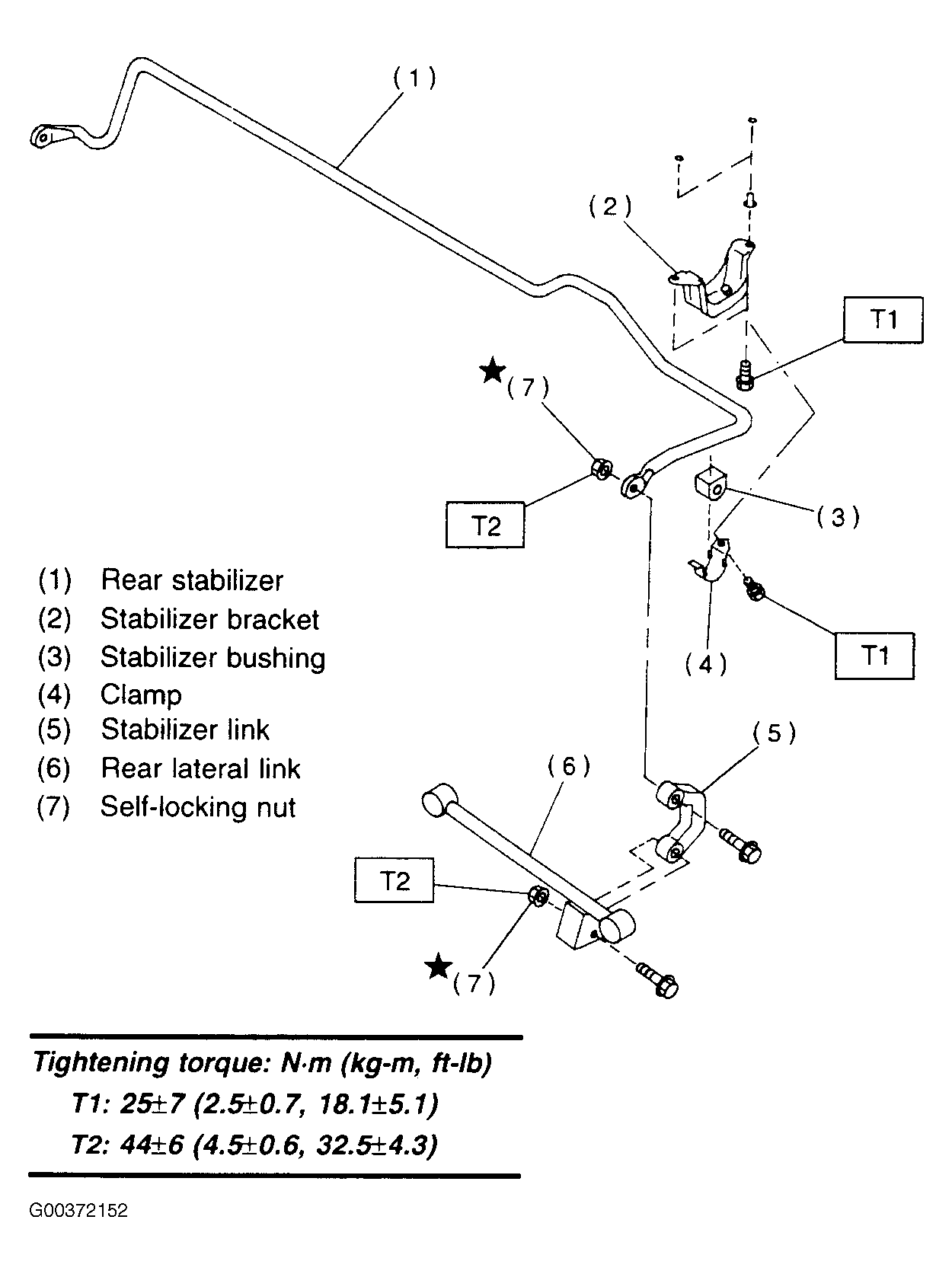

Fig 1: Exploded View Of Rear Stabilizer

G00372152

Courtesy of SUBARU OF AMERICA, INC.
