Lateral Link: Notes
For lateral link component location, see
Fig 1
.

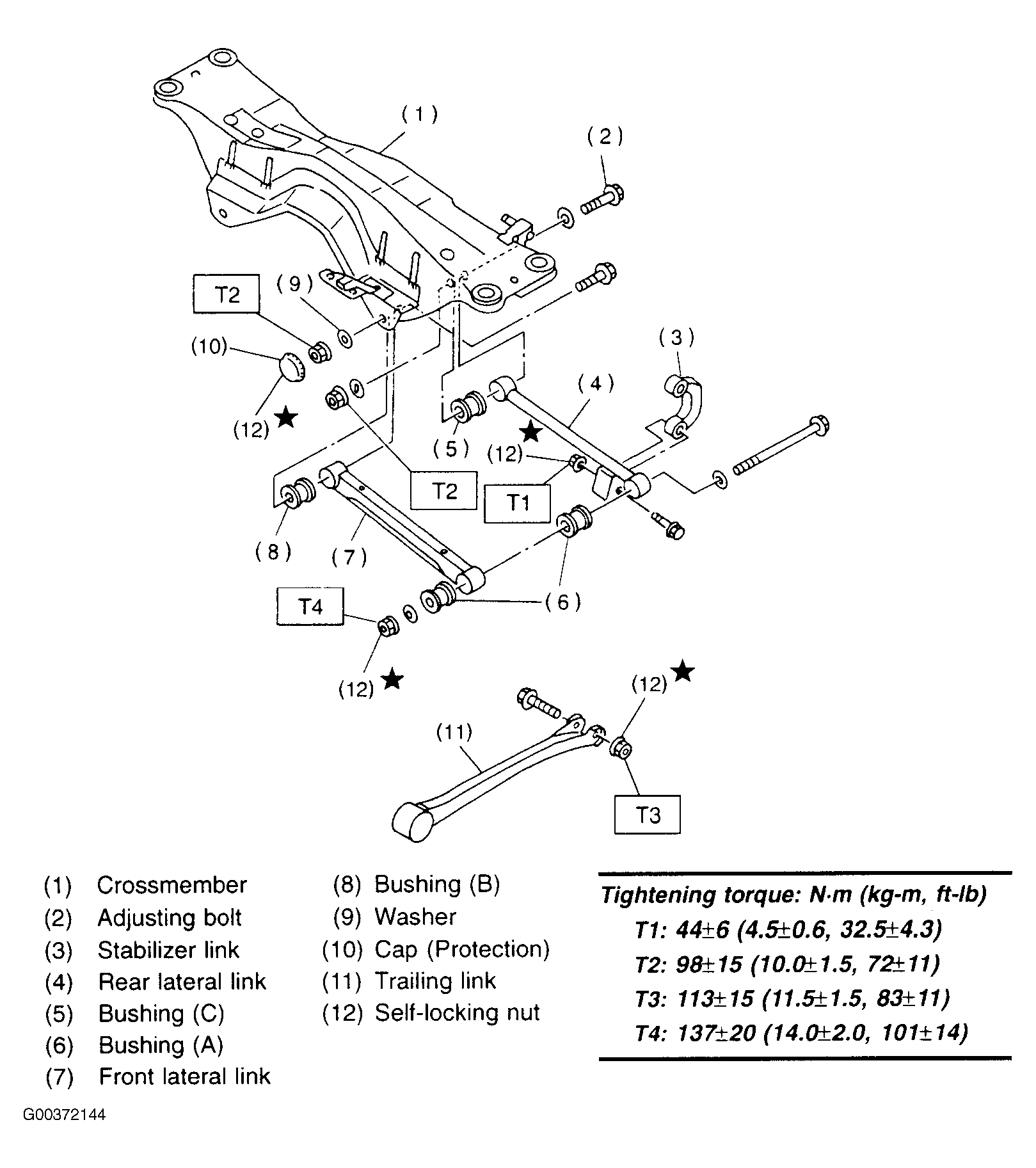

Fig 1: Exploded View Of Lateral Link
Courtesy of SUBARU OF AMERICA, INC.
