Removal & Installation: CROSSMEMBER: Notes

For crossmember component location, see Fig 1.

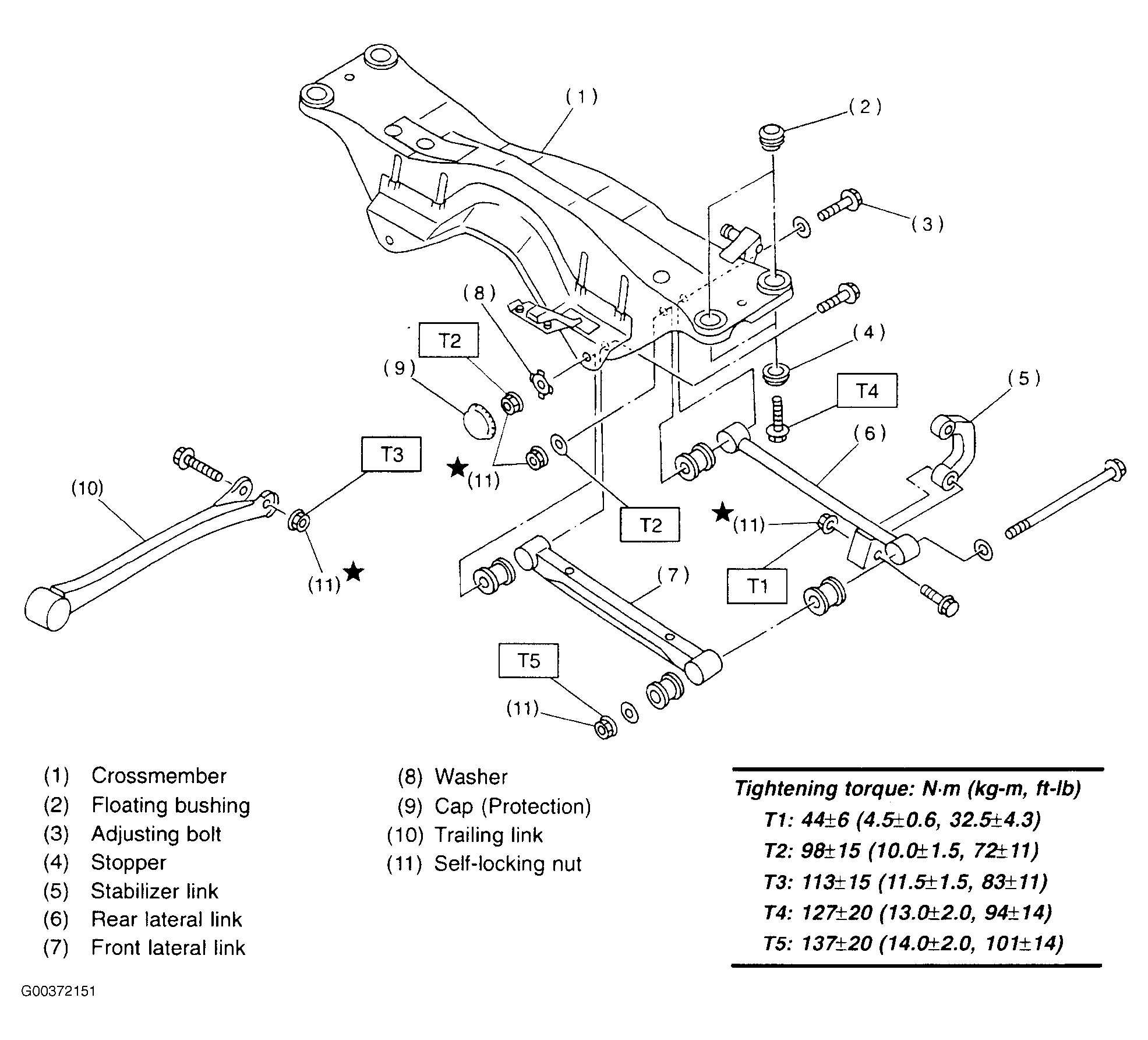

Fig 1: Exploded View Of Rear Crossmember

G00372151

Courtesy of SUBARU OF AMERICA, INC.
