Rear Exhaust Pipe: Installation

CAUTION: Replace gaskets with new ones.

Install rear exhaust pipe bracket to rubber cushion.
NOTE: To facilitate installation, apply a coat of SUBARU CRC or equivalent to mating area of rubber cushion in advance.

SUBARU CRC (Part No. 004301003)

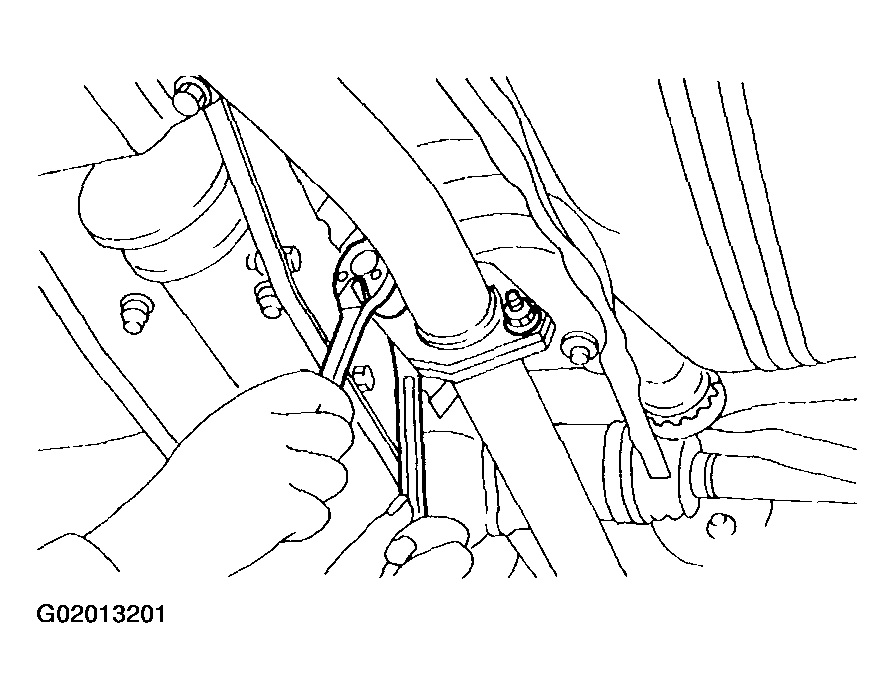

Fig 1: Installing Rear Exhaust Pipe Bracket To Rubber Cushion
Install rear exhaust pipe to muffler.
Tightening torque: 48+/-5 N.m (4.9+/-0.5 kg-m, 35.4+/-3.6 ft-lb)

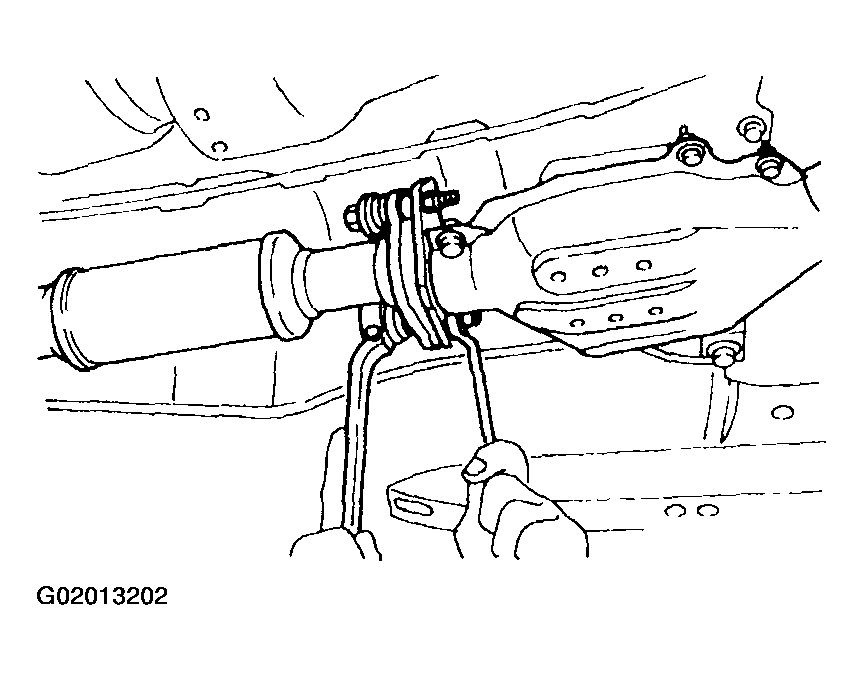

Fig 2: Installing Rear Exhaust Pipe To Muffler
Install rear exhaust pipe to center exhaust pipe.
Tightening torque: 18+/-5 N.m (1.8+/-0.5 kg-m, 13.0+/-3.6 ft-lb)

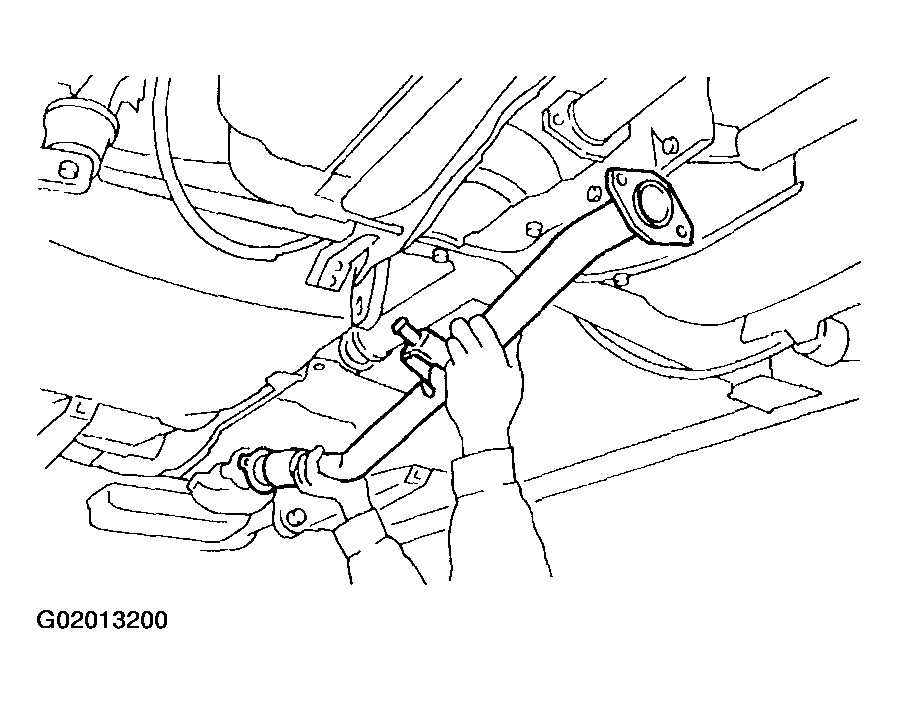

Fig 3: Installing Rear Exhaust Pipe To Center Exhaust Pipe
