Master Cylinder: Notes

A sealed reservoir tank is adopted to extend the service life of the brake fluid.
The fluid level indicator is built into the reservoir tank for easy and correct monitoring of the fluid level when adding brake fluid.

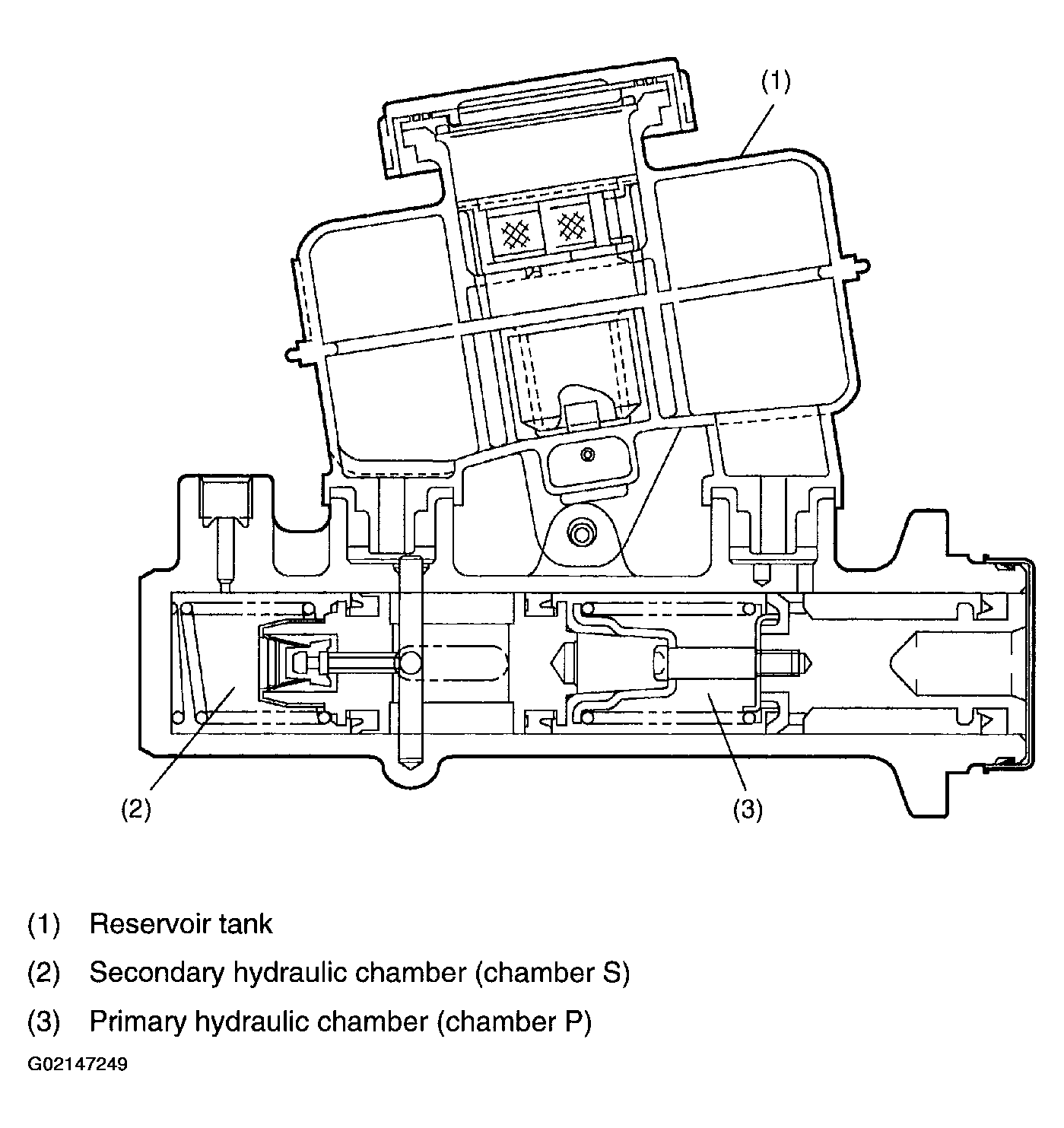

Fig 1: Identifying Master Cylinder Components
