Brake Booster

The brake booster is a tandem type that utilizes two small diameter diaphragms to provide high brake boosting effects.

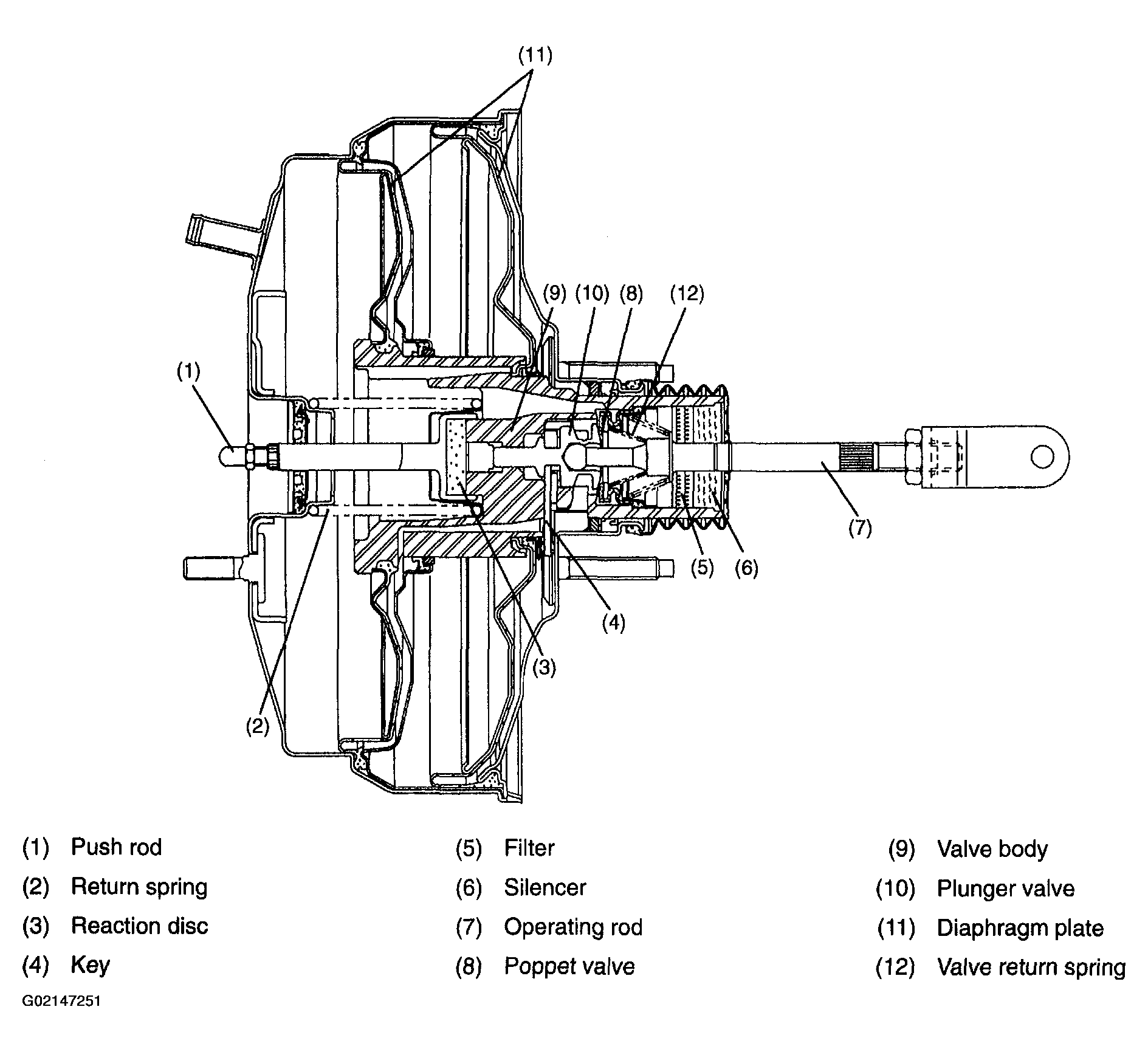

Fig 1: Identifying Brake Booster Components
G02147251
