Anti-Lock Braking System - Diagnostics
>>
Electrical Components Location
Electrical Components Location

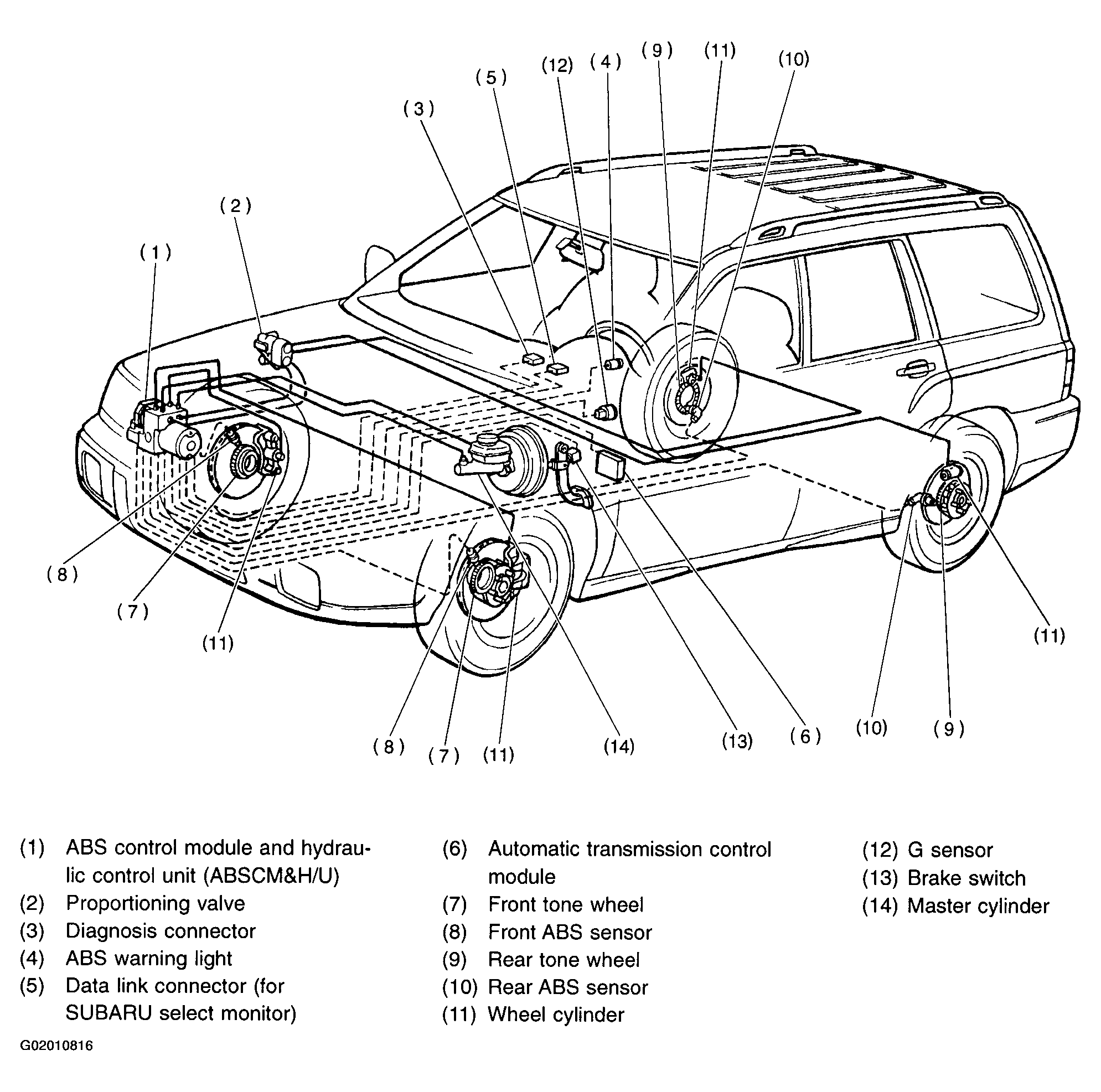

Fig 1: Identifying Electrical Components Location (1 Of 2)

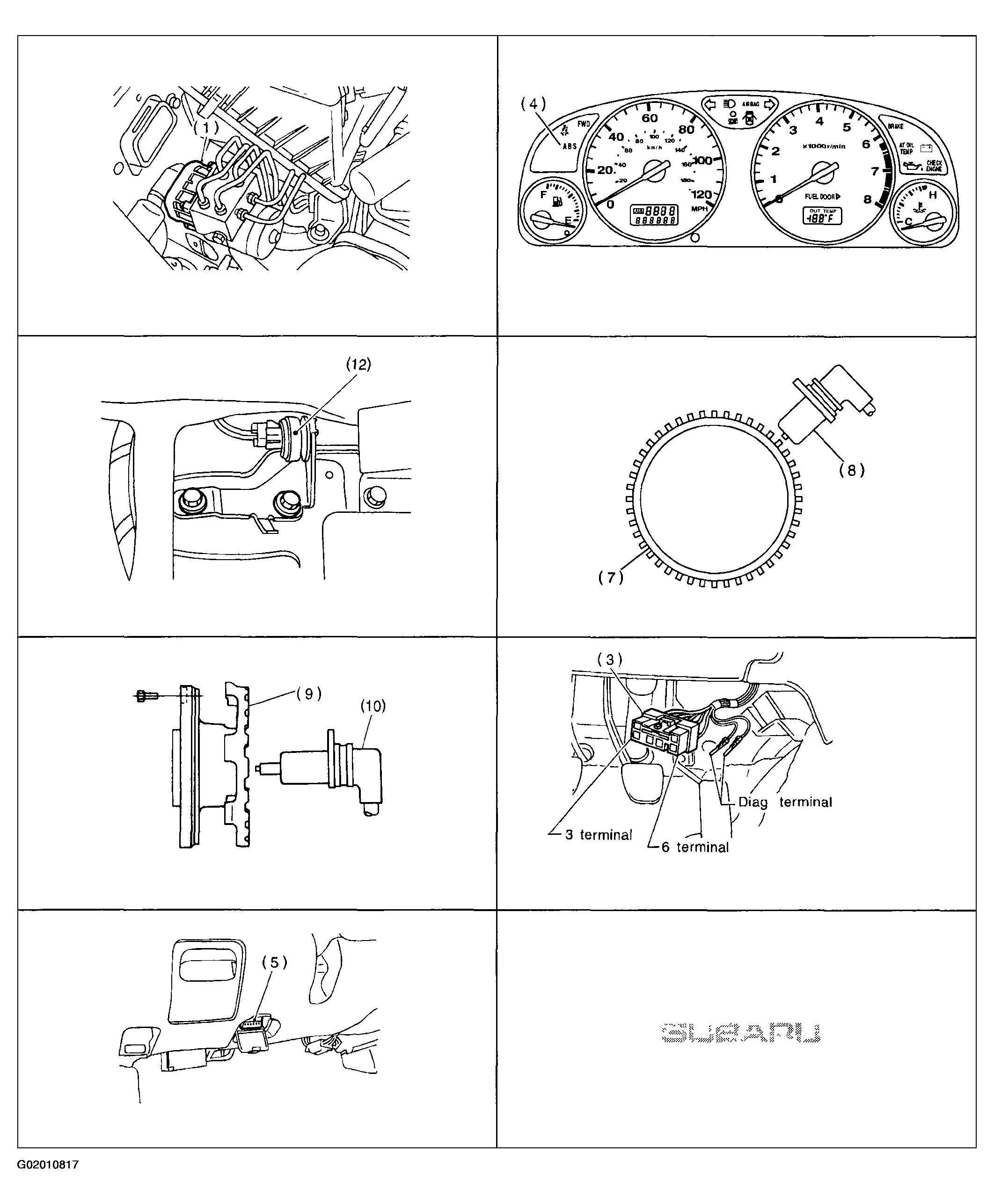

Fig 2: Identifying Electrical Components Location (2 Of 2)
