Fan Control

The main fan and sub fan are switch turn ON and OFF, according to the operating modes shown in the following table.

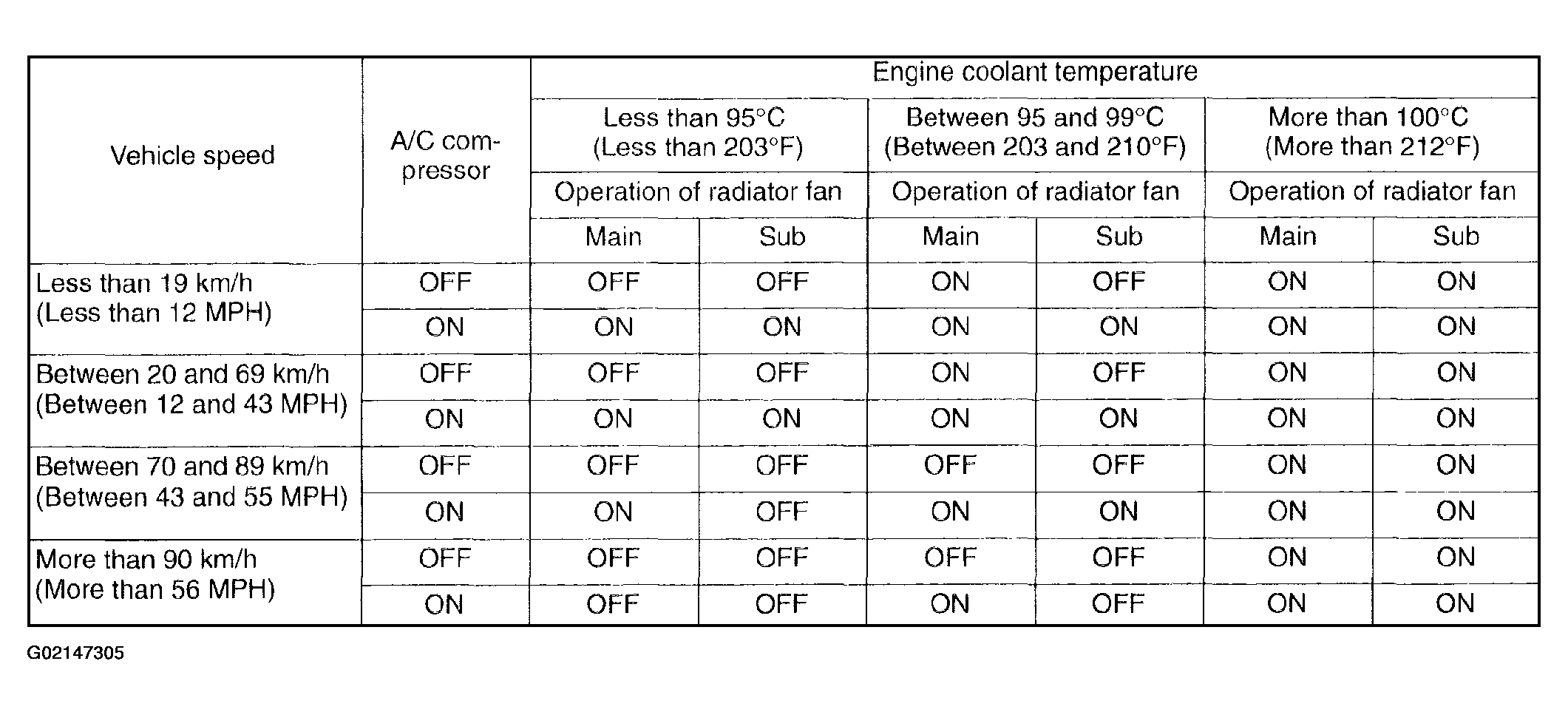

Fig 1: Fan Control Operating Modes Chart
G02147305
