Trouble Code 54 Stop Light Switch Signal Circuit Malfunction - Stop Light Switch Signal Circuit Malfunction

DIAGNOSIS:

TROUBLE SYMPTOM:

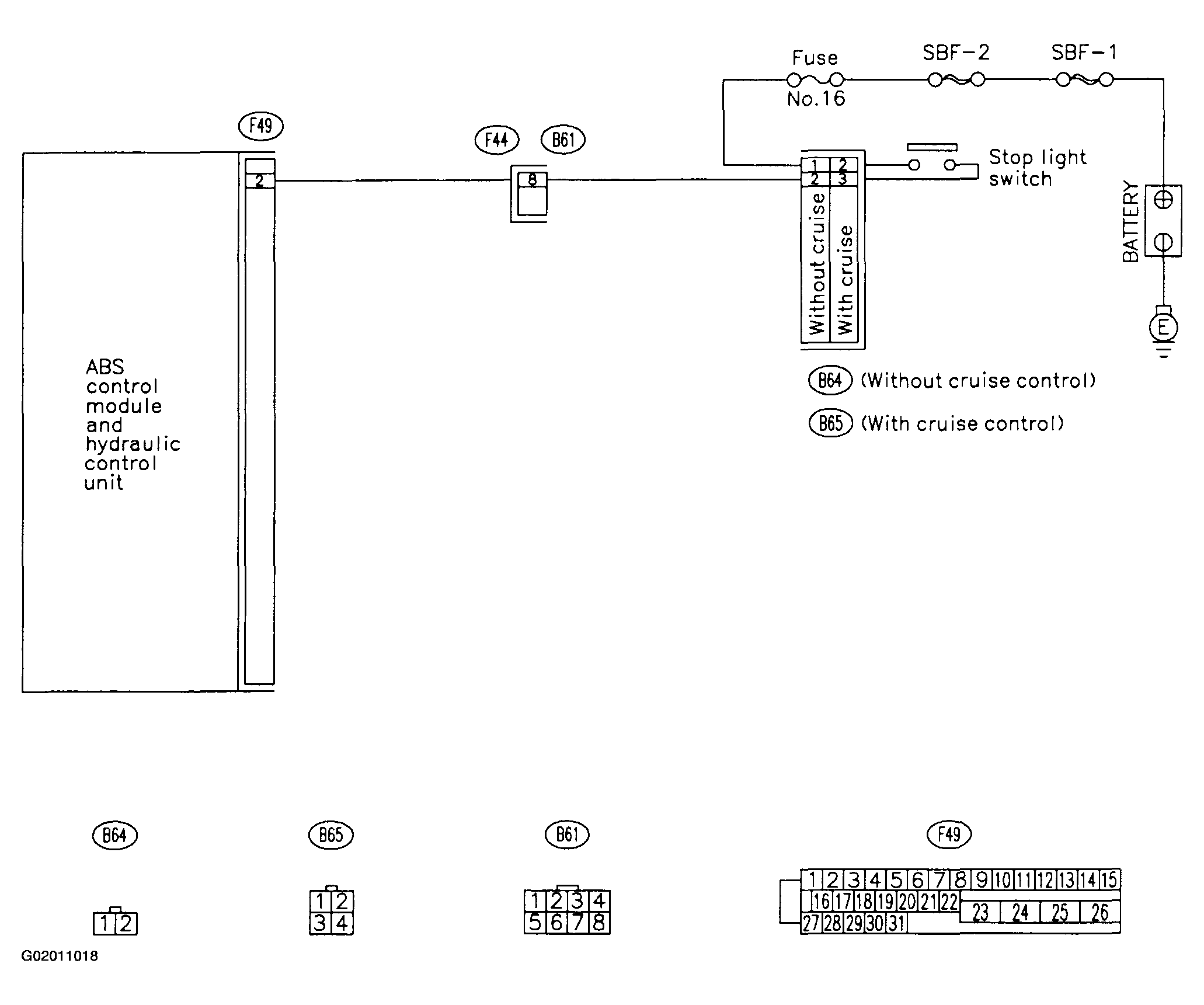

WIRING DIAGRAM:

Fig 1: Wiring Diagram
G02011018
  1. 10AF1: CHECK OUTPUT OF STOP LIGHT SWITCH USING SELECT MONITOR.
    1. Select "Current data display & Save" on the select monitor.
    2. Release the brake pedal.
    3. Read the stop light switch output in the select monitor data display.

    CHECK: Is the reading indicated on monitor display less than 1.5 V?

    1. YES:  Go to step 10AF2.
    2. NO:  Go to step  10AF3: CHECK IF STOP LIGHTS COME ON .
  2. 10AF2: CHECK OUTPUT OF STOP LIGHT SWITCH USING SELECT MONITOR.
    1. Depress the brake pedal.
    2. Read the stop light switch output in the select monitor data display.

    CHECK: Is the reading indicated on monitor display between 10 and 15 V?

    1. YES:  Go to step  10AF5: CHECK POOR CONTACT IN CONNECTORS .
    2. NO:  Go to step 10AF3.
  3. 10AF3: CHECK IF STOP LIGHTS COME ON.

    Depress the brake pedal.

    CHECK: Do stop lights turn on?

    1. YES:  Go to step 10AF4.
    2. NO:  Repair stop lights circuit.
  4. 10AF4: CHECK OPEN CIRCUIT IN HARNESS.
    1. Turn ignition switch to OFF.
    2. Disconnect connector from ABSCM & H/U.
    3. Depress brake pedal.
    4. Measure voltage between ABSCM & H/U connector and chassis ground.

    Connector & terminal

    1. (F49) No. 2 - Chassis ground:

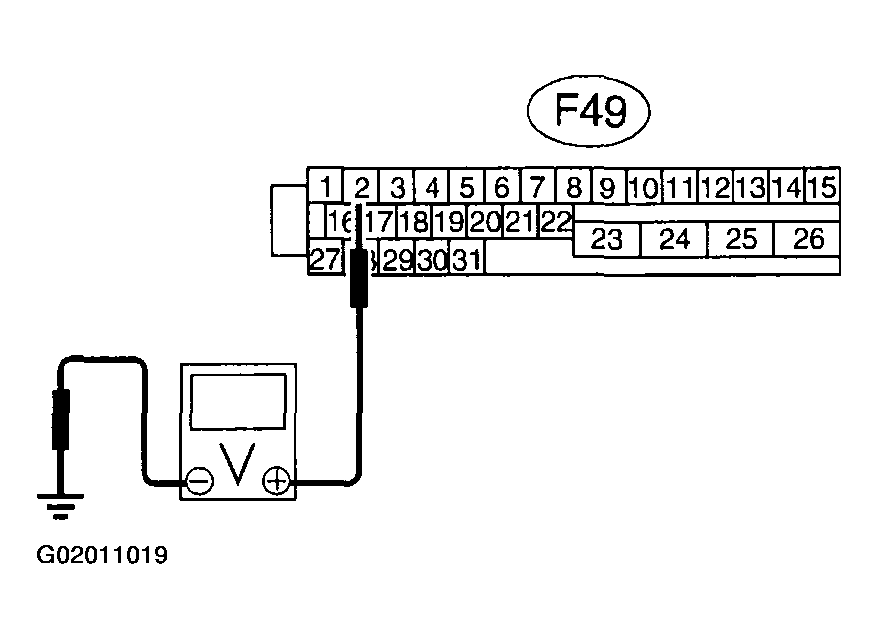

    Fig 2: Measuring Voltage Between ABSCM & H/U Connector & Chassis Ground
    G02011019

    CHECK: Is the voltage between 10 and 15 V?

    1. YES:  Go to step 10AF5.
    2. NO:  Repair harness between stop light switch and ABSCM & H/U connector.
  5. 10AF5: CHECK POOR CONTACT IN CONNECTORS.

    CHECK: Is there poor contact in connector between stop light switch and ABSCM & H/U?

    1. YES:  Repair connector.
    2. NO:  Go to step 10AF6.
  6. 10AF6: CHECK ABSCM & H/U.
    1. Connect all connectors.
    2. Erase the memory.
    3. Perform inspection mode.
    4. Read out the trouble code.

    CHECK: Is the same trouble code as in the current diagnosis still being output?

    1. YES:  Replace ABSCM & H/U, see ABS CONTROL MODULE AND HYDRAULIC CONTROL UNIT (ABSCM & H/U)  .
    2. NO:  Go to step 10AF7.
  7. 10AF7: CHECK ANY OTHER TROUBLE CODES APPEARANCE.

    CHECK: Are other trouble codes being output?

    1. YES:  Proceed with the diagnosis corresponding to the trouble code.
    2. NO:  A temporary poor contact.
