Air Cleaner Case: Removal

WARNING: This page is about a different car, the 2001 Subaru Impreza and 2000 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery ground cable.

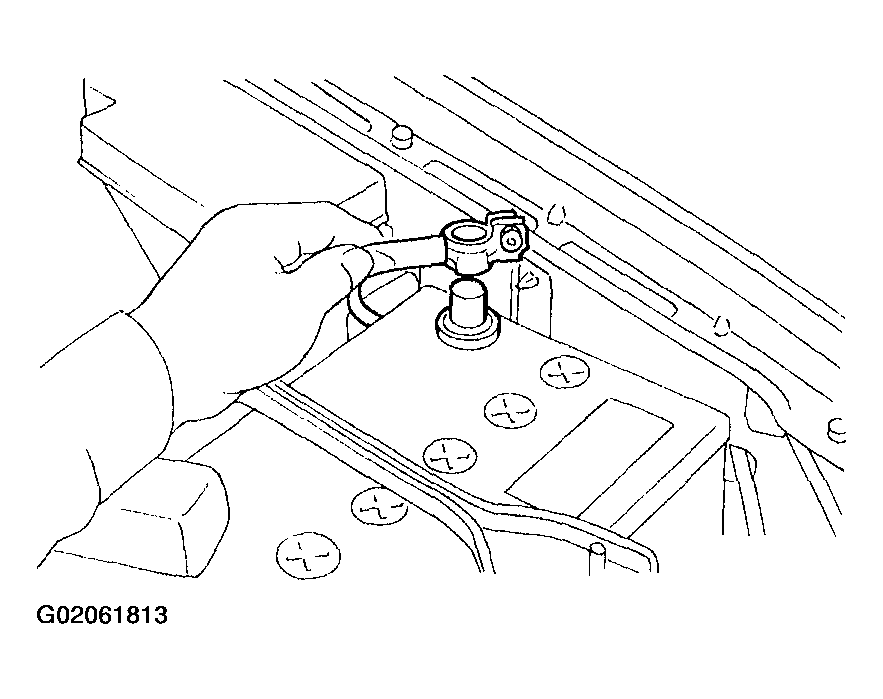

    Fig 1: Disconnecting Battery Ground Cable
    G02061813
  2. Disconnect connector from intake air temperature sensor (2200 cc models).

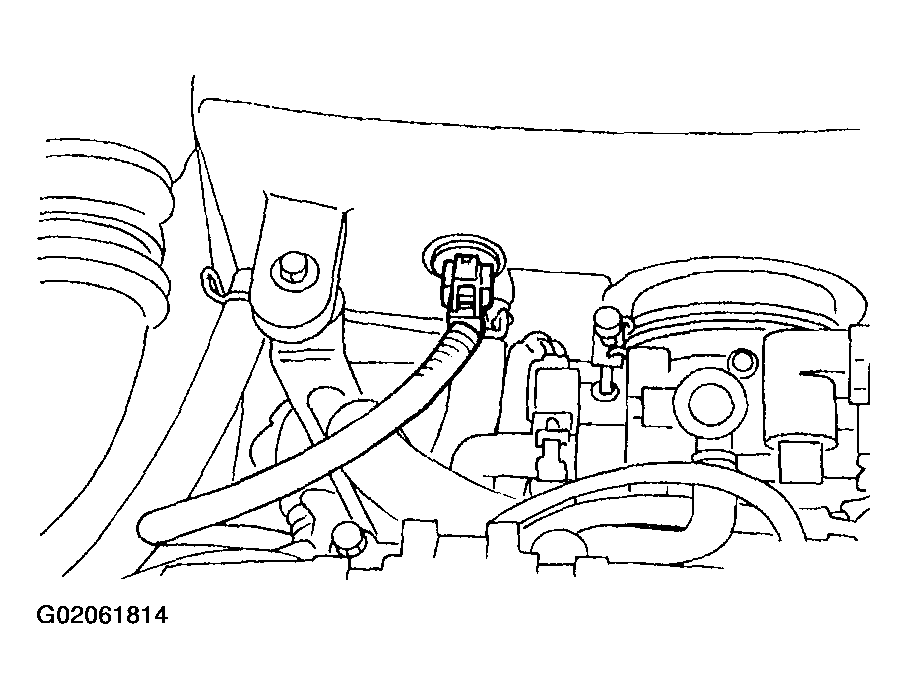

    Fig 2: Disconnecting Connector From Intake Air Temperature Sensor (2200cc Models)
    G02061814
  3. Loosen clamp which connects air cleaner case to throttle body.

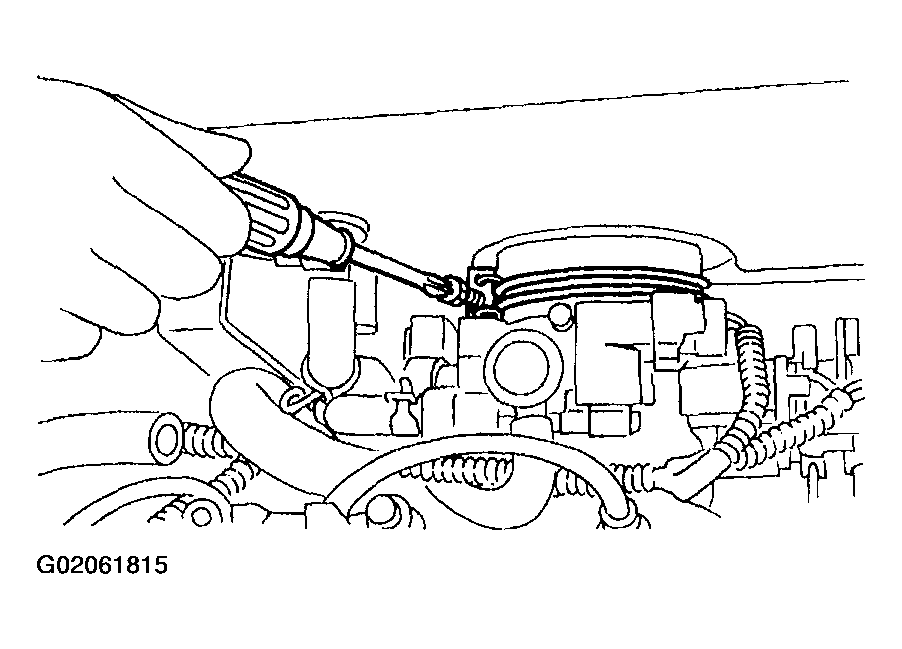

    Fig 3: Loosening Clamp Connecting Air Cleaner Case To Throttle Body
    G02061815
  4. Disconnect hoses from air cleaner case.
  5. Remove bolts which install air cleaner case to stays.
  6. Remove air cleaner case.

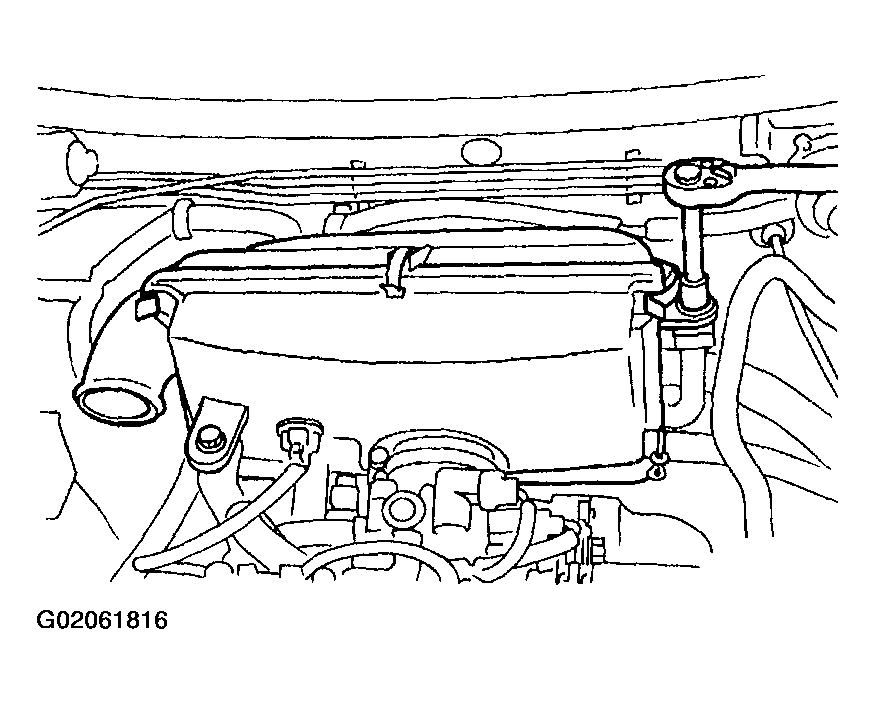

    Fig 4: Removing Bolts From Air Cleaner Case
    G02061816
