Propeller Shaft: Removal

WARNING: This page is about a different car, the 2001 Subaru Impreza and 2000 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before removing propeller shaft, wrap metal parts with a cloth or rubber material.

Disconnect ground terminal from battery.
Move selector lever or gear shift lever to "N".
Release the parking brake.
Jack-up vehicle and support it with sturdy racks.
Remove rear exhaust pipe and muffler. See REMOVAL , Rear Exhaust Pipe and REMOVAL , Muffler.
Remove front exhaust cover.

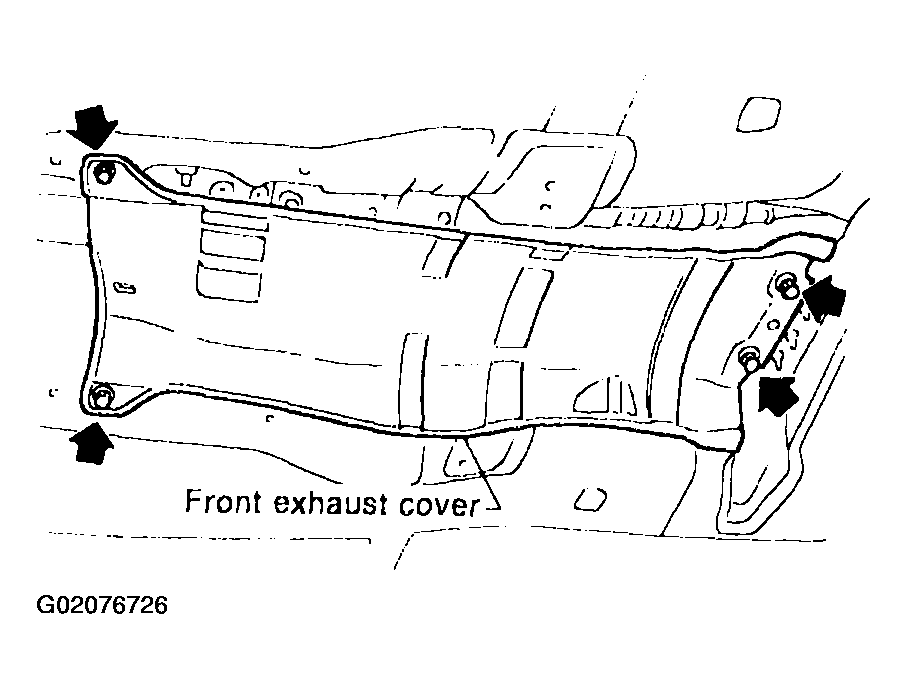

Fig 1: Removing Front Exhaust Cover
Remove differential mount front cover.

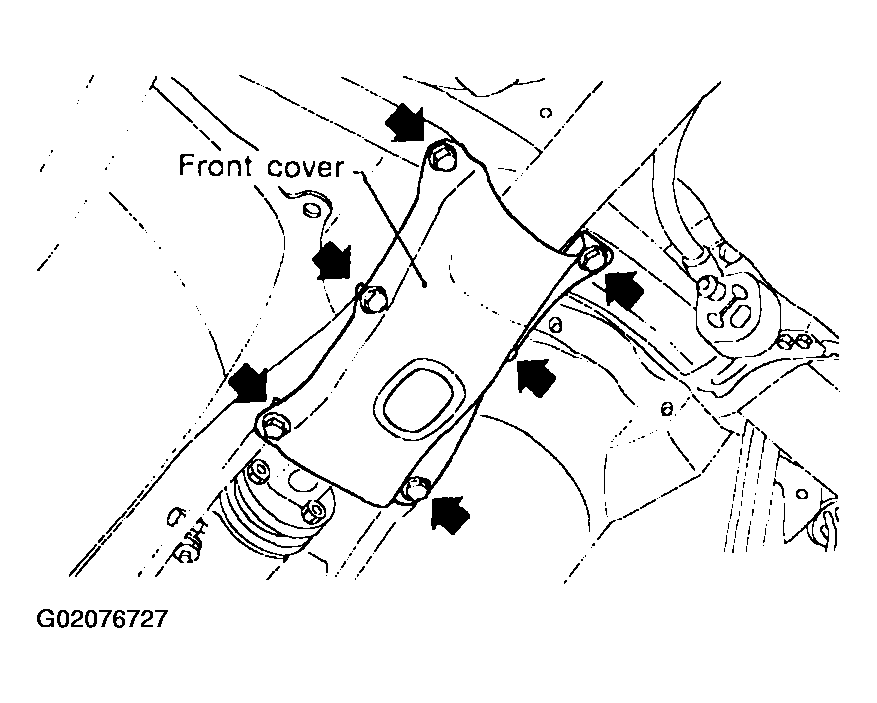

Fig 2: Removing Differential Mount Front Cover
Remove the four bolts which hold propeller shaft to rear differential.
NOTE:
- Put matching mark on affected parts before removal.
- Remove all but one bolt.

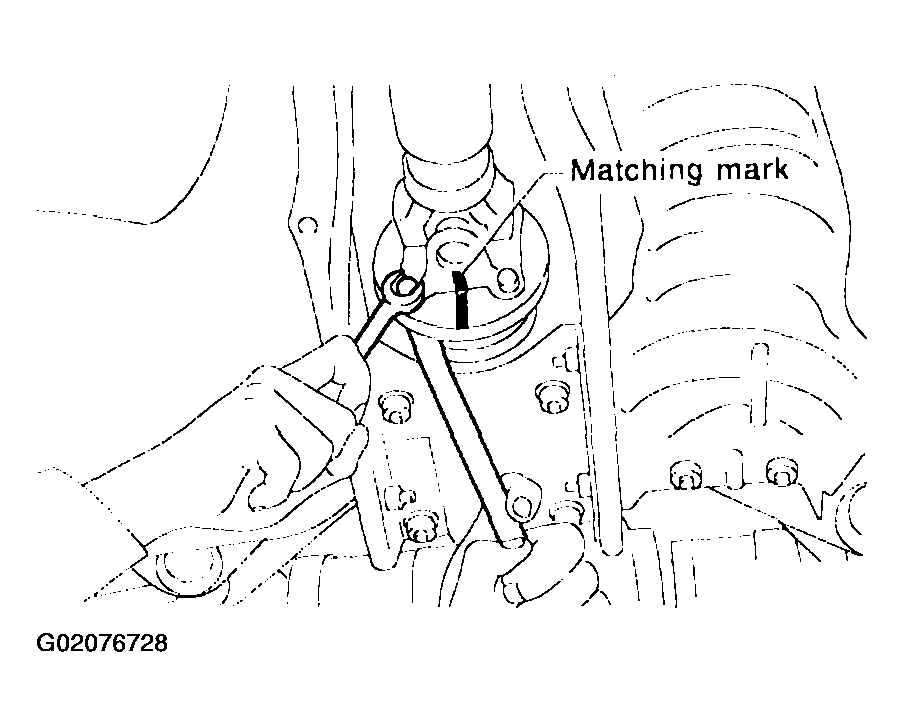

Fig 3: Putting Marks On Affected Parts Before Removal
Remove the two bolts which hold center bearing to vehicle body.

Fig 4: Removing Two Bolts Which Hold Center Bearing To Vehicle Body
Remove propeller shaft from transmission.
CAUTION: Be sure not to damage oil seals and the frictional surface of sleeve yoke.
NOTE:
- Be sure to use an empty oil can to catch oil flowing out when removing propeller shaft.
- Be sure to plug the opening in transmission after removal of propeller shaft.

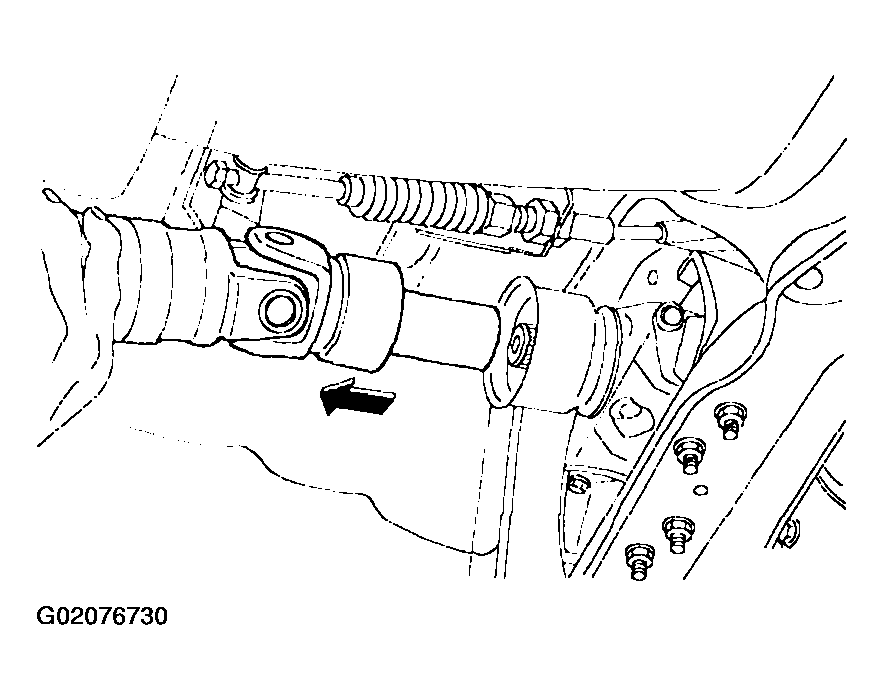

Fig 5: Removing Propeller Shaft From Transmission
Install the extension cap to transmission.
NOTE: If extension cap is not available, cover the opening with a vinyl bag in order to prevent transmission gear oil or ATF leakage.

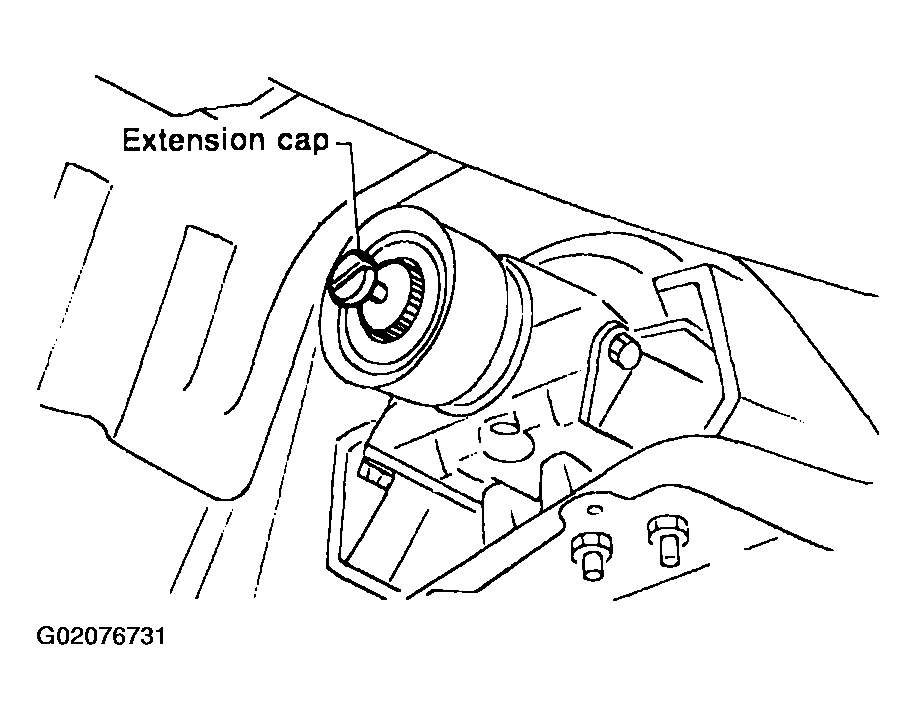

Fig 6: Installing Extension Cap To Transmission
