Propeller Shaft: Installation

WARNING: This page is about a different car, the 2001 Subaru Impreza and 2000 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Insert sleeve yoke into transmission and attach center bearing to vehicle body.
1. Tightening torque: 52 N.m (5.3 kgf-m, 38.3 ft-lb)
Fig 1: Inserting Sleeve Yoke Into Transmission & Attaching Center Bearing
Align matching marks and connect flange yoke and rear differential.
1. Tightening torque: 31 N.m (3.2 kgf-m, 23.1 ft-lb)

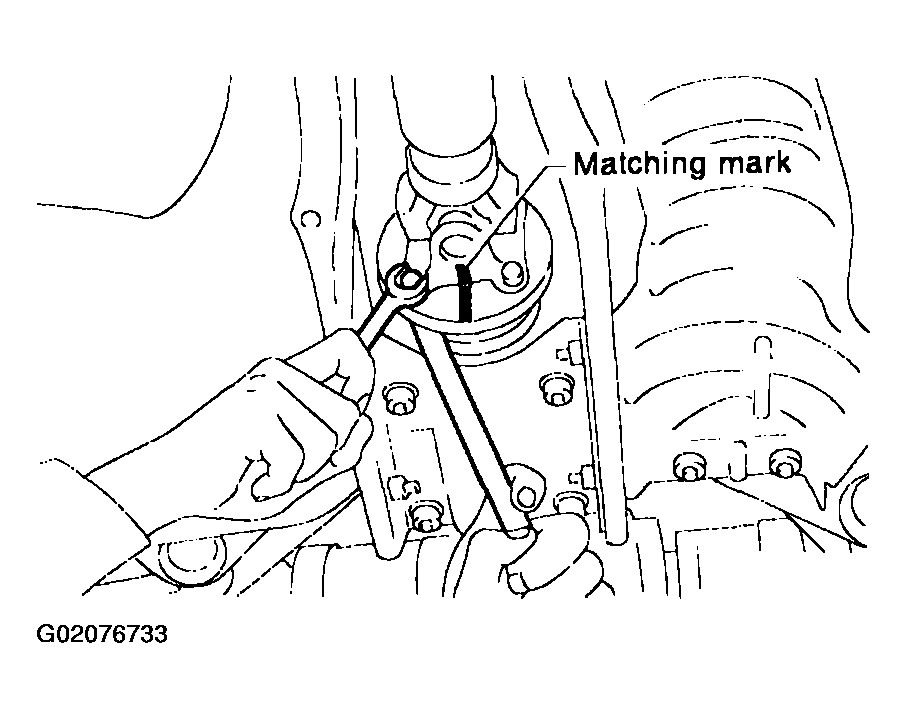

Fig 2: Aligning Marks & Connecting Flange Yoke & Rear Differential
Install differential mount front cover.
1. Tightening torque: 88 N.m (9.0 kgf-m, 65 ft-lb)

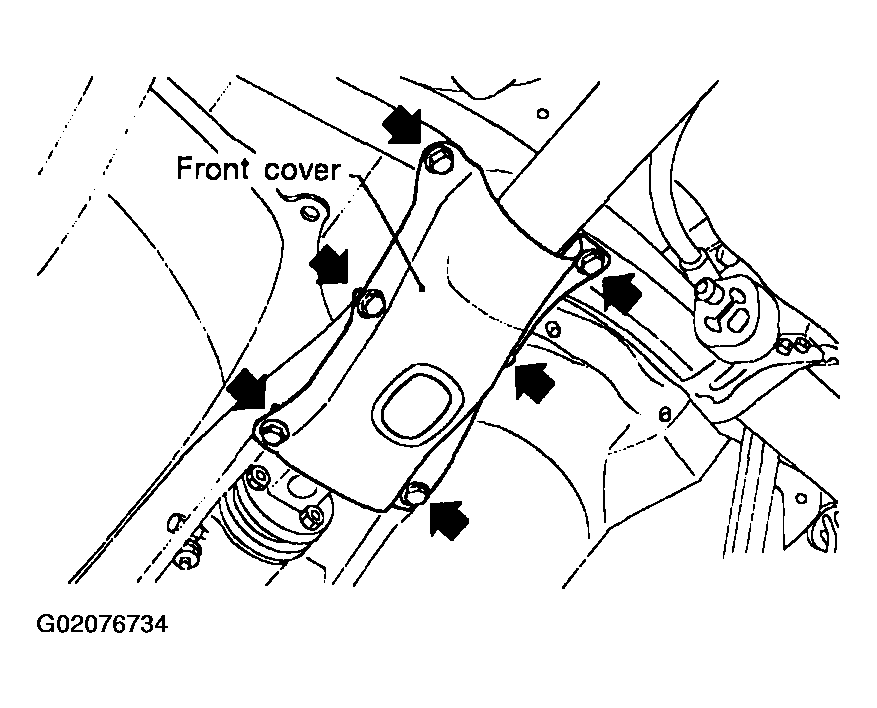

Fig 3: Installing Differential mount front cove
Install front exhaust cover.

Fig 4: Installing Front Exhaust Cover
Install rear exhaust pipe and muffler.
