Master Cylinder: Removal

WARNING: This page is about a different car, the 2001 Subaru Impreza and 2000 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Thoroughly drain brake fluid from reservoir tank.
  2. Remove snap pin, clevis pin and separate push rod of master cylinder from clutch pedal.
    Fig 1: Removing Snap Pin & Clevis Pin From Push Rod
    G02060368
  3. Remove clutch pipe from master cylinder.
  4. Remove master cylinder with reservoir tank.
    CAUTION: Be extremely careful not to spill brake fluid. Brake fluid spilled on the vehicle body will harm the paint surface; wipe it off quickly if spilled.

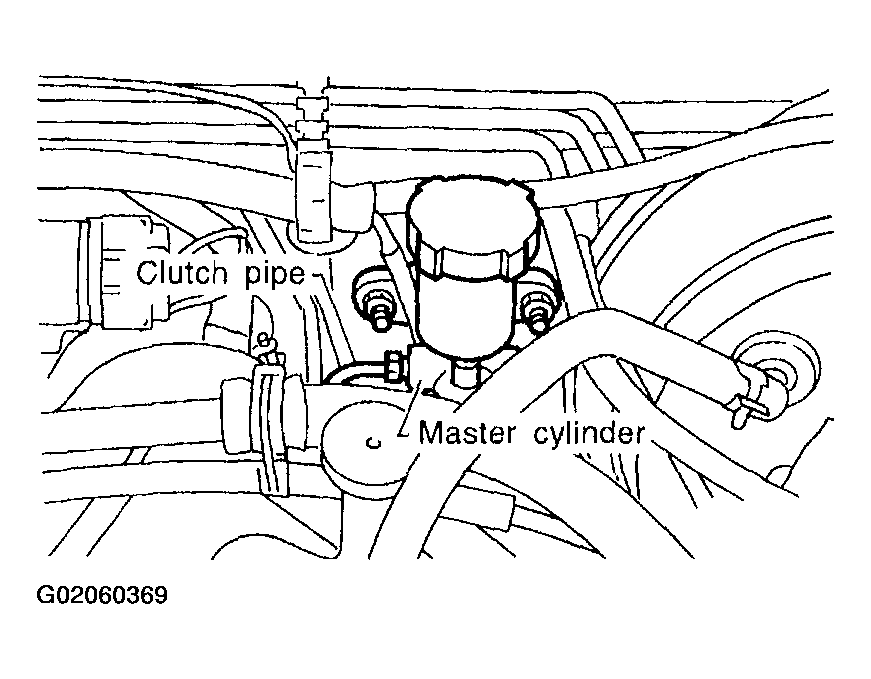

    Fig 2: Identifying Master Cylinder With Reservoir Tank
    G02060369
