Clutch Disc And Cover: Installation

WARNING: This page is about a different car, the 2001 Subaru Impreza and 2000 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install flywheel and ST.
1. ST 498497100 CRANKSHAFT STOPPER

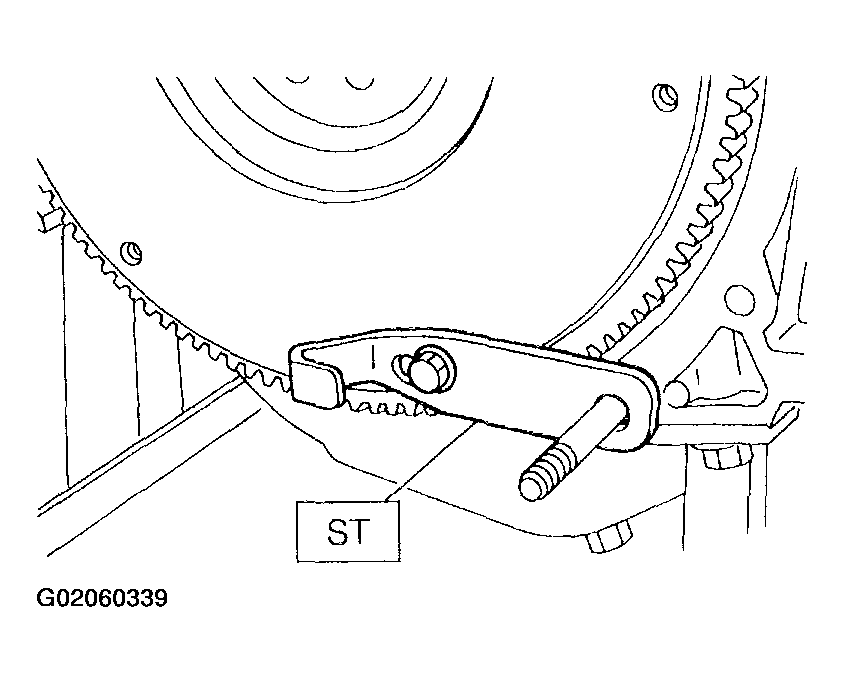

Fig 1: Identifying ST 498497100 Crankshaft Stopper
Tighten the flywheel attaching bolts to the specified torque.
NOTE: Tighten flywheel installing bolts gradually. Each bolt should be tightened to the specified torque in a crisscross fashion.
1. Tightening torque: 72 N.m (7.3 kgf-m, 52.8 ft-lb)

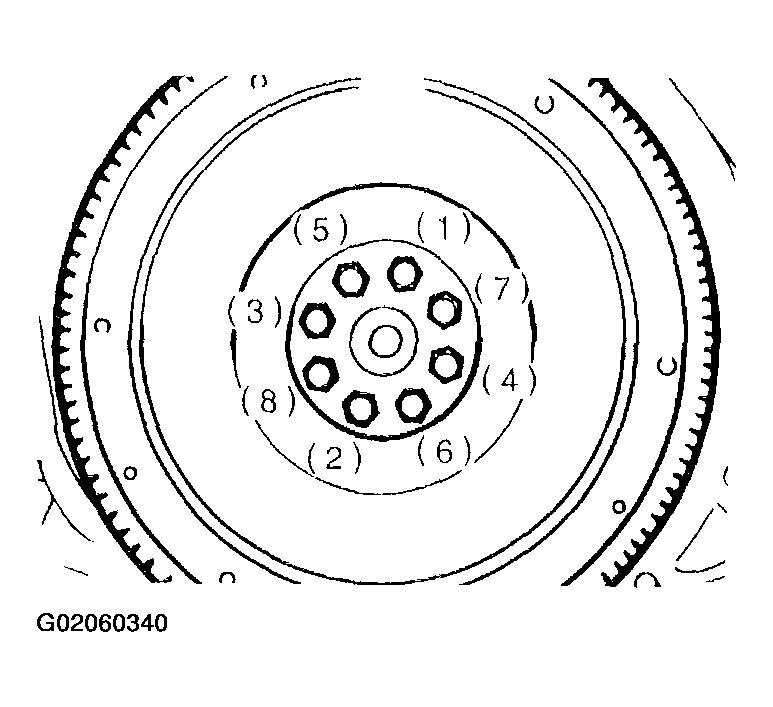

Fig 2: Tightening Flywheel Bolts In A Crisscross Fashion
Insert ST into the clutch disc and install them on the flywheel by inserting the ST end into the pilot bearing.
1. ST 499747100 CLUTCH DISC GUIDE

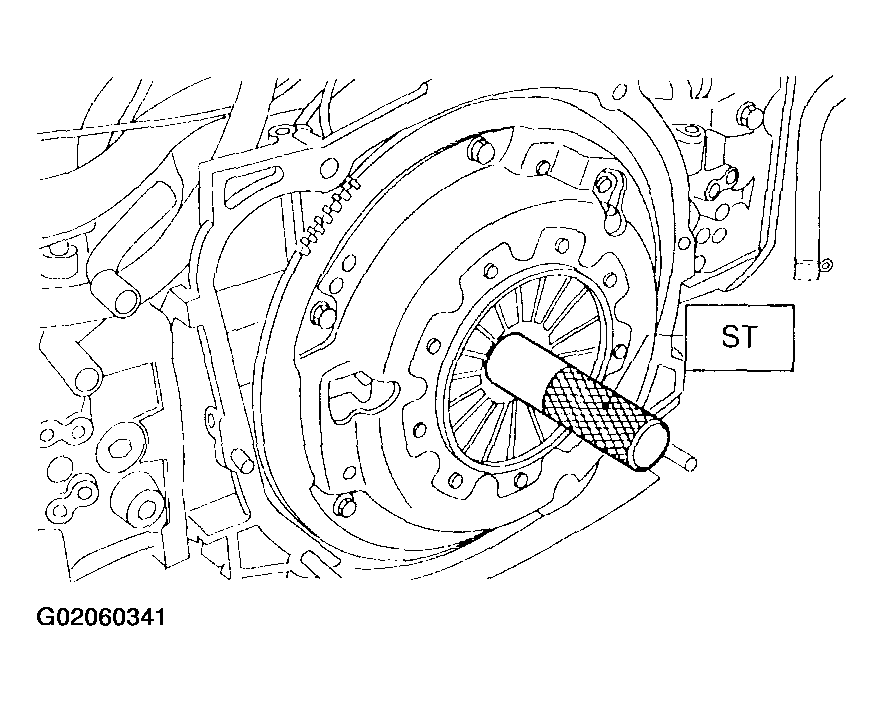

Fig 3: Inserting (ST) Into Pilot Bearing
Install clutch cover on flywheel and tighten bolts to the specified torque.
NOTE:
- When installing the clutch cover on the flywheel, position the clutch cover so that there is a gap of 120° or more between "0" marks on the flywheel and clutch cover. ("0" marks indicate the directions of residual unbalance.)
- Note the front and rear of the clutch disc when installing.
- Temporarily tighten bolts by hand. Each bolt should be tightened to the specified torque in a crisscross fashion.
Tightening torque:
1. 15.7 N-m (1.6 kgf-m, 11.6 ft-lb)
Remove ST.
ST 499747100 CLUTCH DISC GUIDE

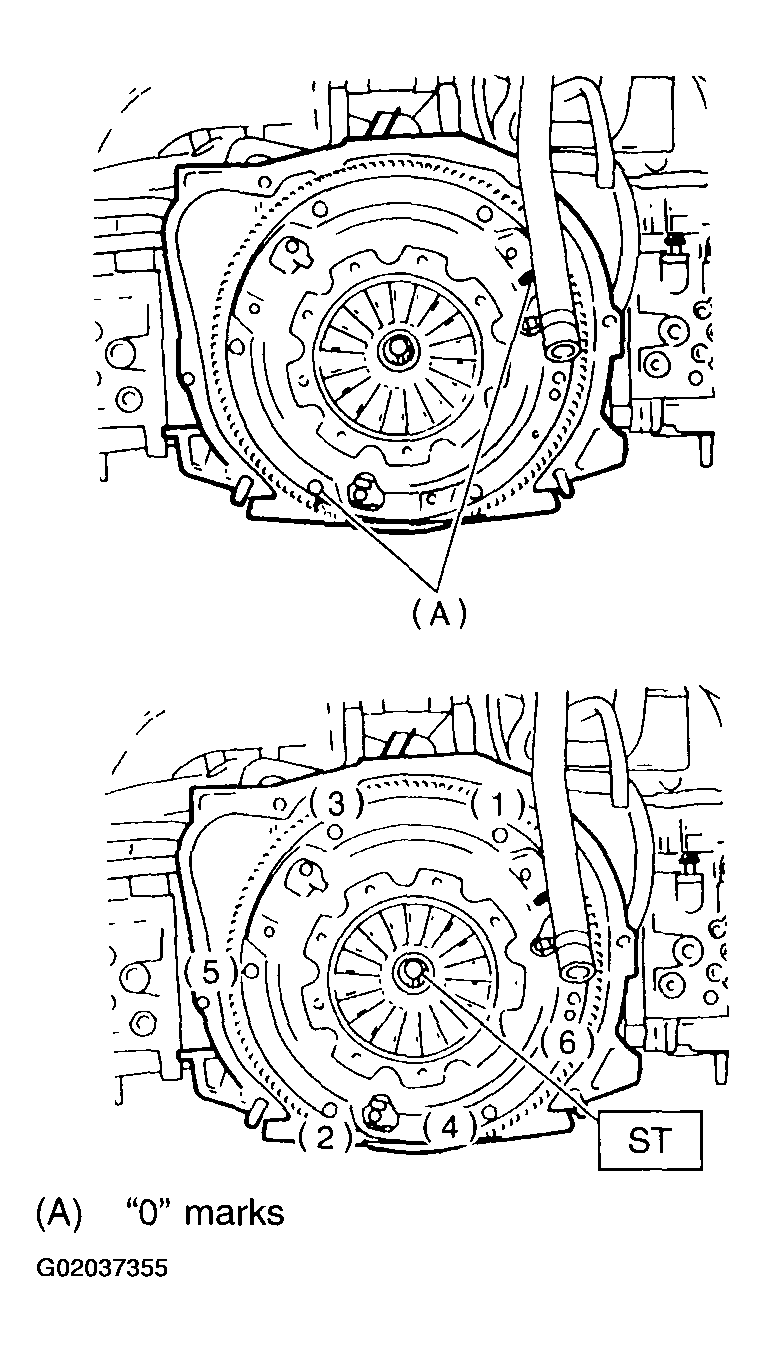

Fig 4: Installing The Clutch Cover
