Clutch Cable: Removal

WARNING: This page is about a different car, the 2001 Subaru Impreza and 2000 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect clutch cable from release lever.
  2. Remove clutch cable clamp from pedal bracket.

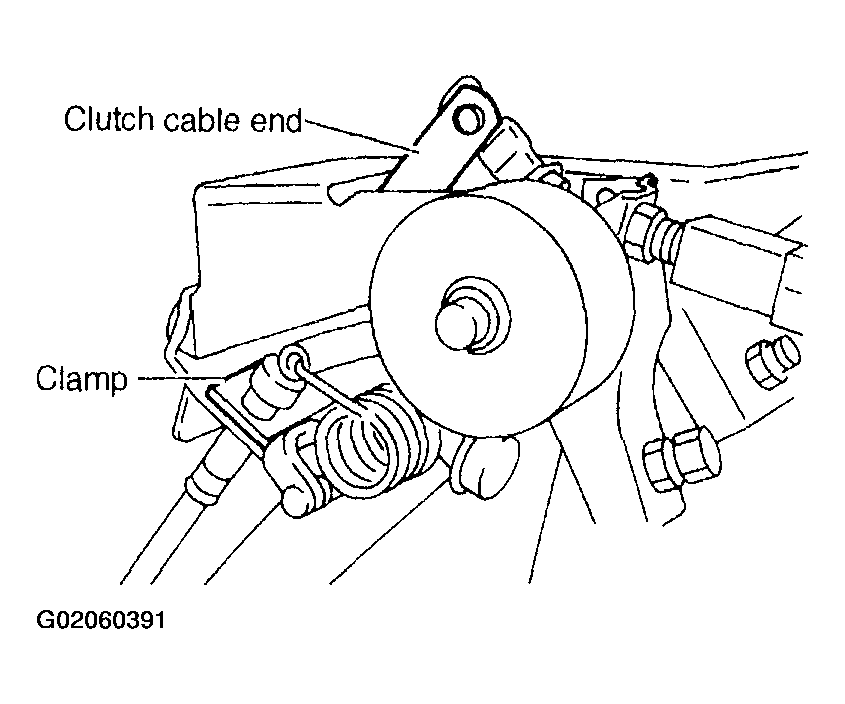

    Fig 1: Identifying Clutch Cable End
    G02060391
  3. Disconnect clutch cable from pedal bracket and pedal end.
  4. Remove clutch cable from body.
    CAUTION: Before removing clutch cable from toe board, remove grommet. Slowly remove clutch cable, being careful not to scratch it.
