Transfer Case

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install oil guide to transfer case.

    Tightening torque:  6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

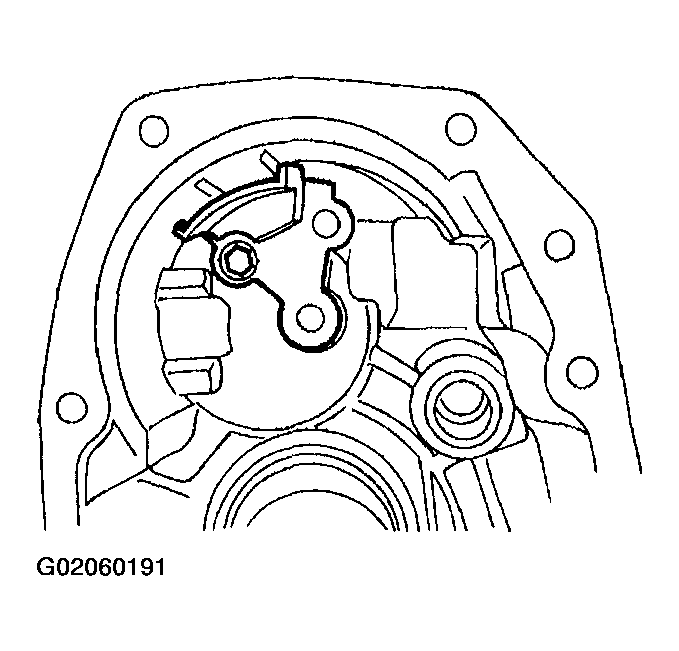

    Fig 1: Installing Oil Guide To Transfer Case
    G02060191
  2. Install reverse check sleeve assembly to transfer case. See INSTALLATION - REVERSE CHECK SLEEVE  .
