Drive Pinion Assembly

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Preload adjustment of thrust bearing.

Starting torque:
0.3-0.8 N.m (0.03-0.08 kgf-m, 0.2-0.6 ft-lb)

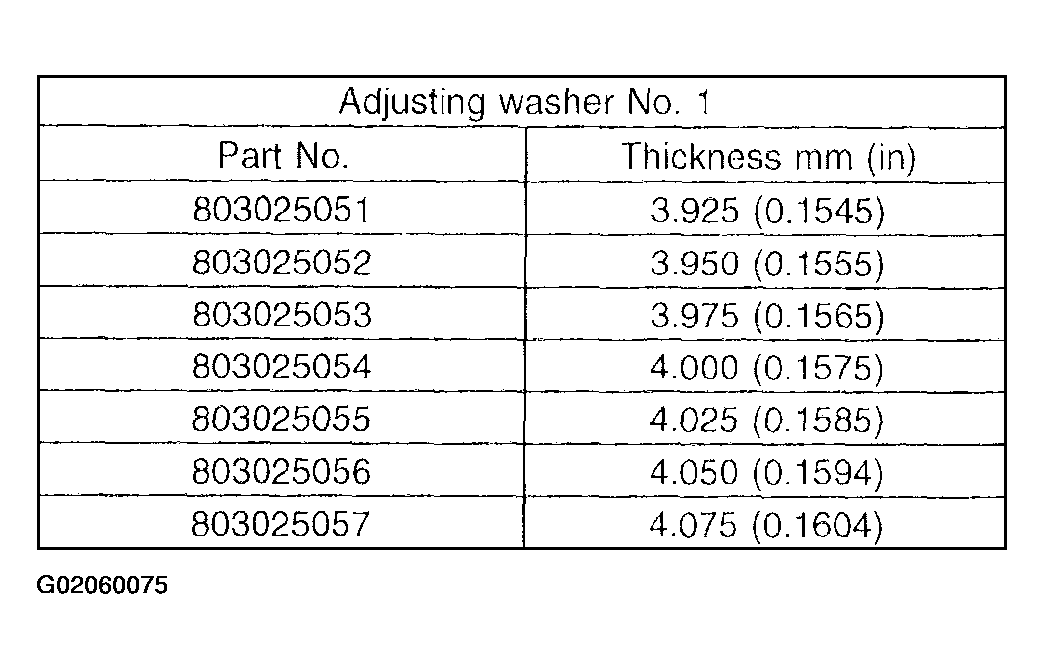

Fig 1: Adjusting Washer No. 1 Chart

Fig 2: Adjusting Washer No. 2 Chart
