Transfer Case And Extension

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

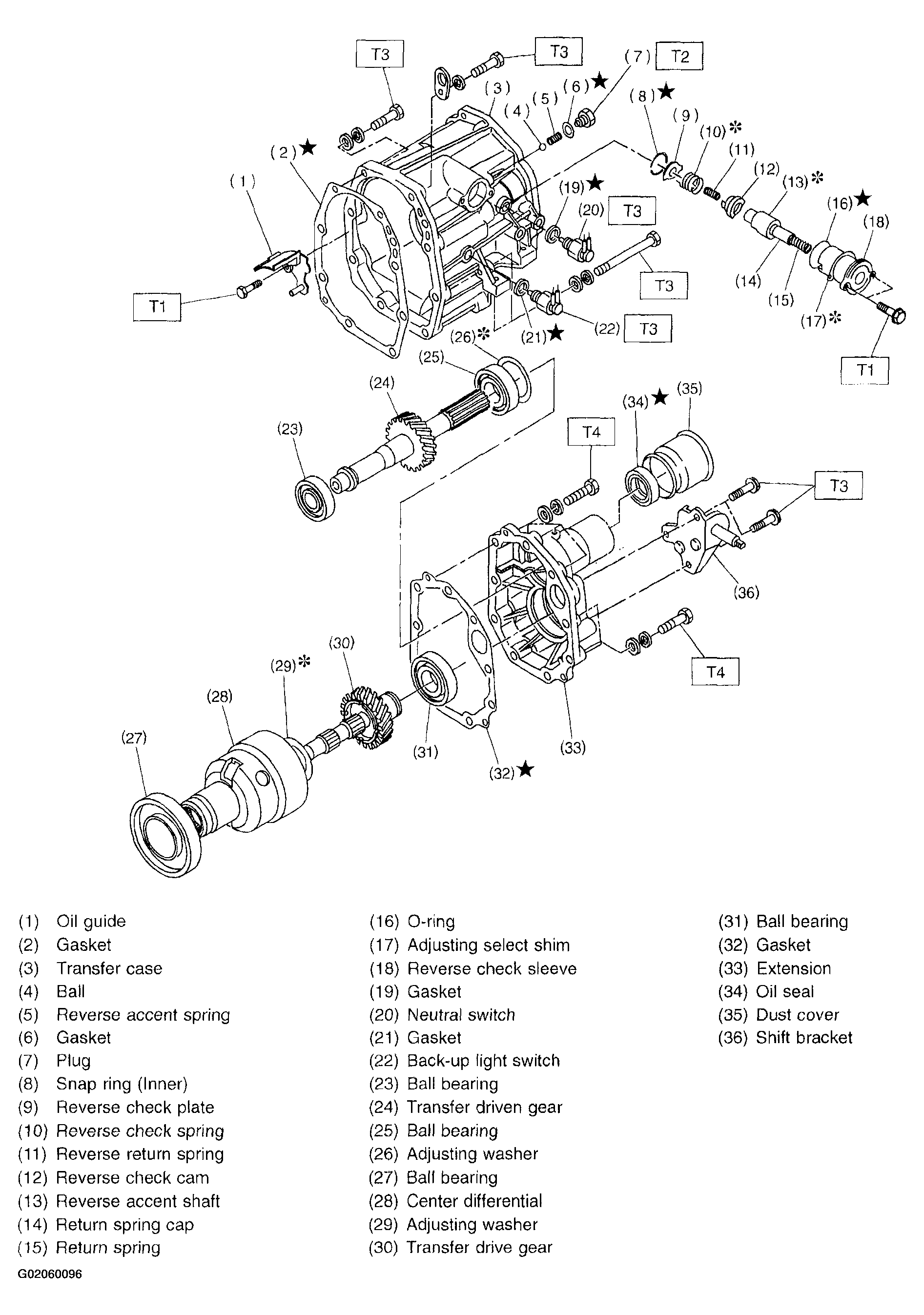

Fig 1: Identifying Transfer Case And Extension Components
G02060096

Tightening torque: N.m (kgf-m, ft-lb)

  1. T1:  6.4 (0.65, 4.7)
  2. T2:  10 (1.0, 7.2)
  3. T3:  25 (2.5, 18.1)
  4. T4:  37 (3.8, 27.5)
