Main Shaft Assembly

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

2200 cc Model

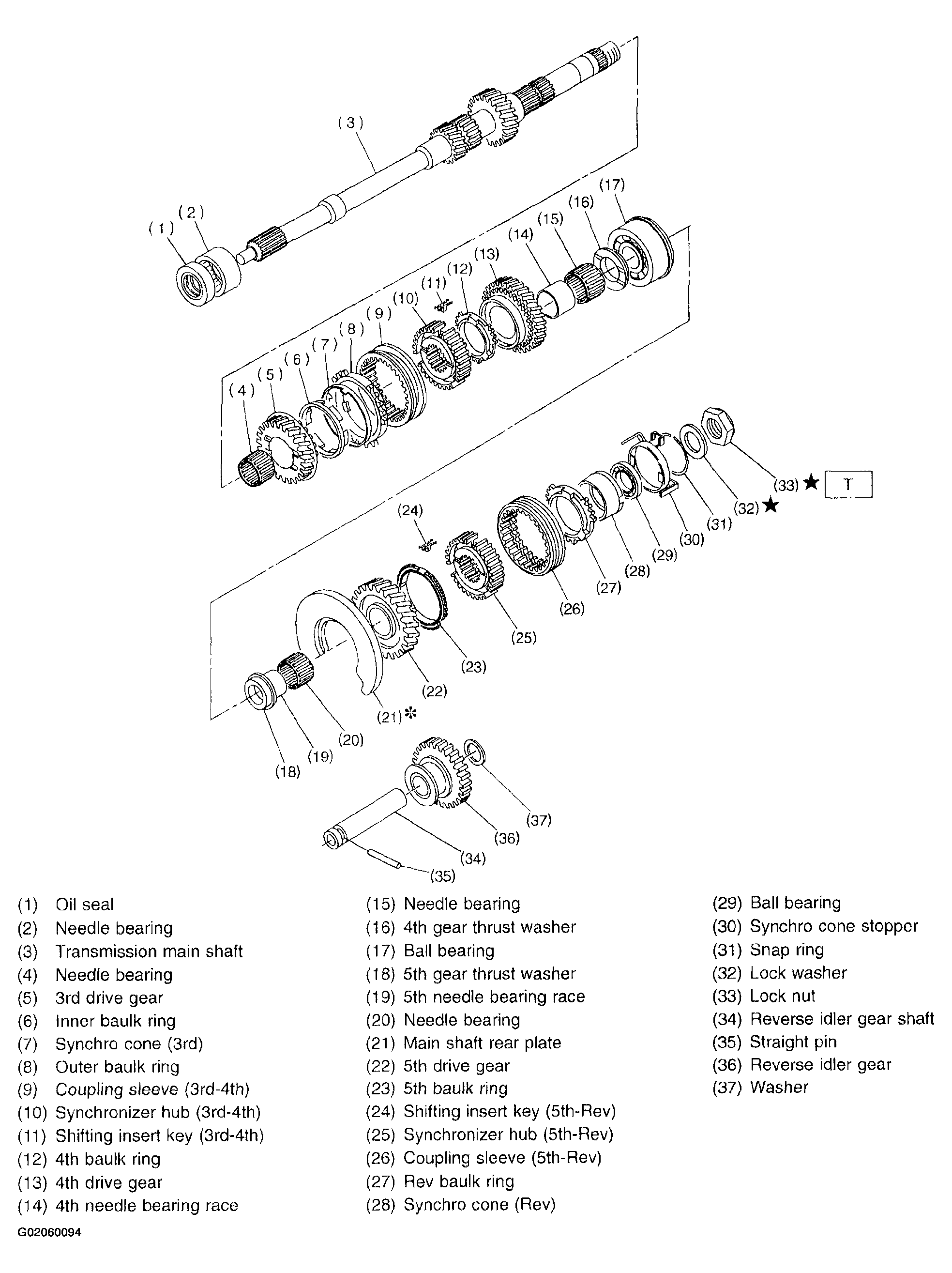

Fig 1: Identifying Main Shaft Assembly Components (2200 cc Model)

Tightening torque: N.m (kgf-m, ft-lb)
1. T: 118 (12.0, 86.8)
2500 cc Model

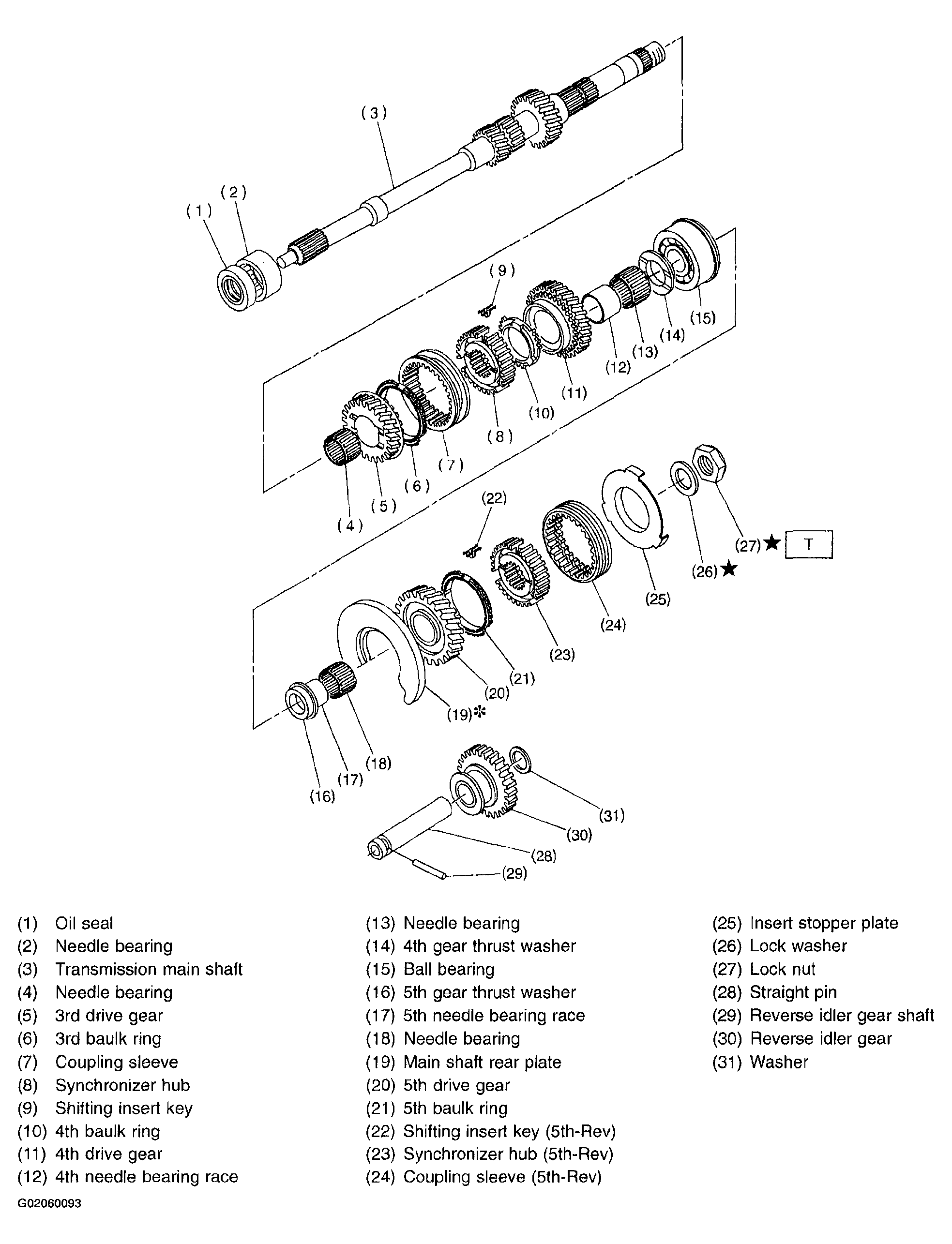

Fig 2: Identifying Main Shaft Assembly Components (2500 cc Model)

Tightening torque: N.m (kgf-m, ft-lb)
1. T: 118 (12.0, 86.8)
