Front Differential

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

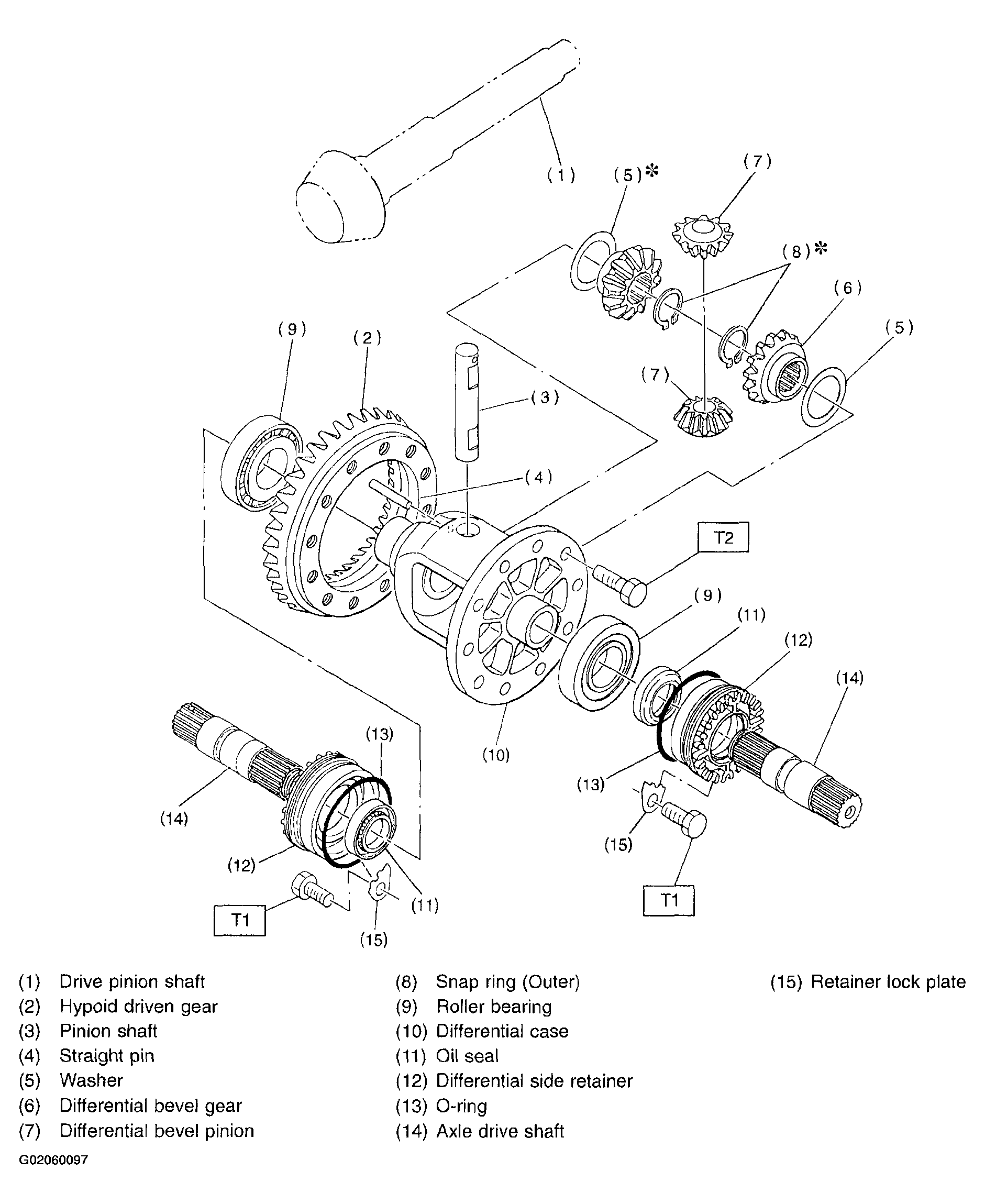

Fig 1: Identifying Front Differential Components
G02060097

Tightening torque: N.m (kgf-m, ft-lb)

  1. T1:  25 (2.5, 18.1)
  2. T2:  62 (6.3, 45.6)
